12. Troubleshooting

438 9152-11/03

04.03

Service

Manual

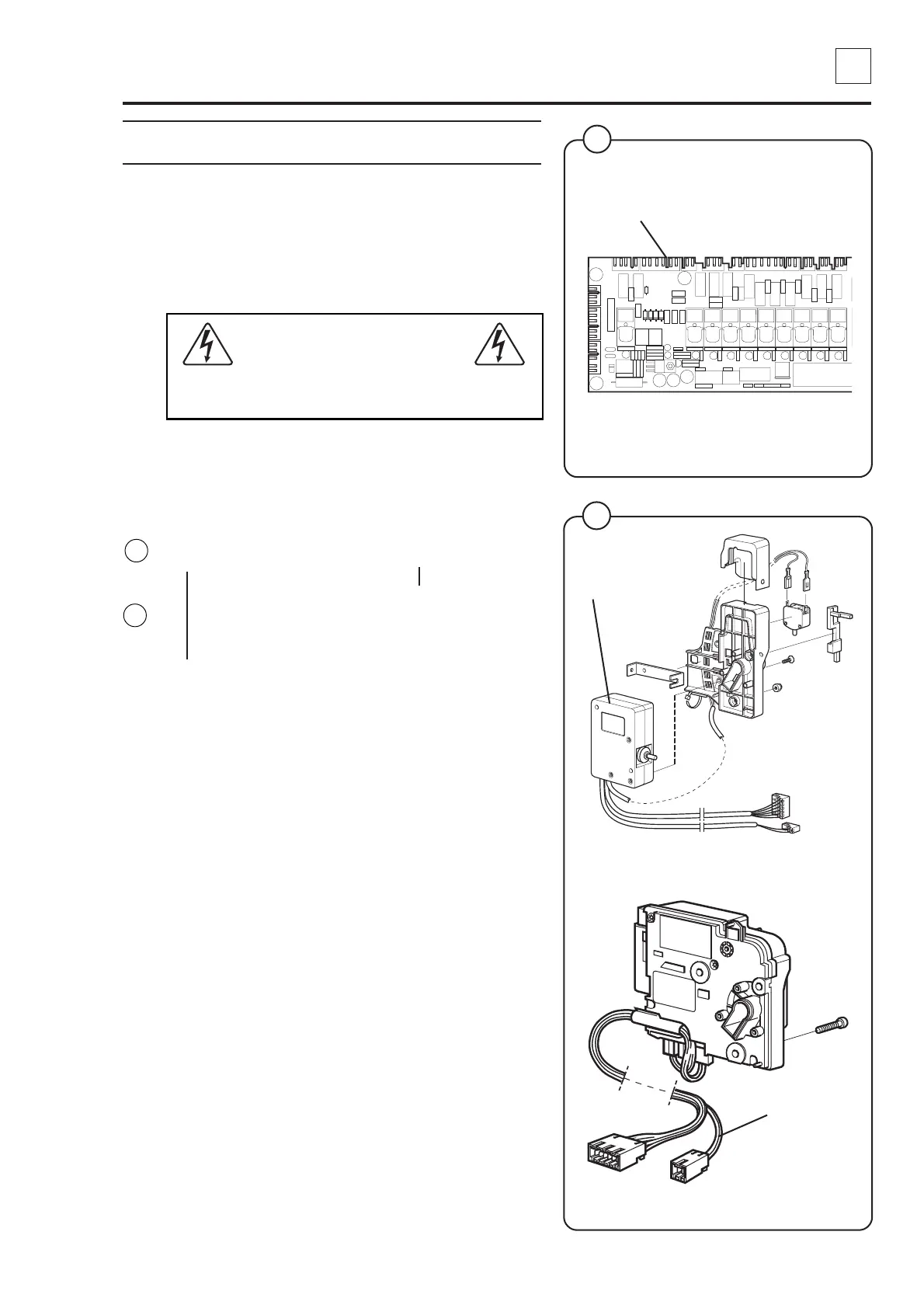

DOOR LOCK

The signal from the ”Door locked ” switch is

present although there is no signal from the

”Door closed” switch.

This error code can only be generated prior to

programme start.

If the power is on, be very careful when

working on the the machine.

Try to restart the machine (i.e. reset the error

code) by pressing START.

If the error returns, troubleshoot as follows:

1. Undo the card connection X5 on I/O card 1, A11

Error message returns No error message

Troubleshoot the door lock

and the cabling for electric

or mechanical short-circuit.

I/O card A11 probably defective.

Fig.

3973

5368

Actuator

6112

Cables
