11
30

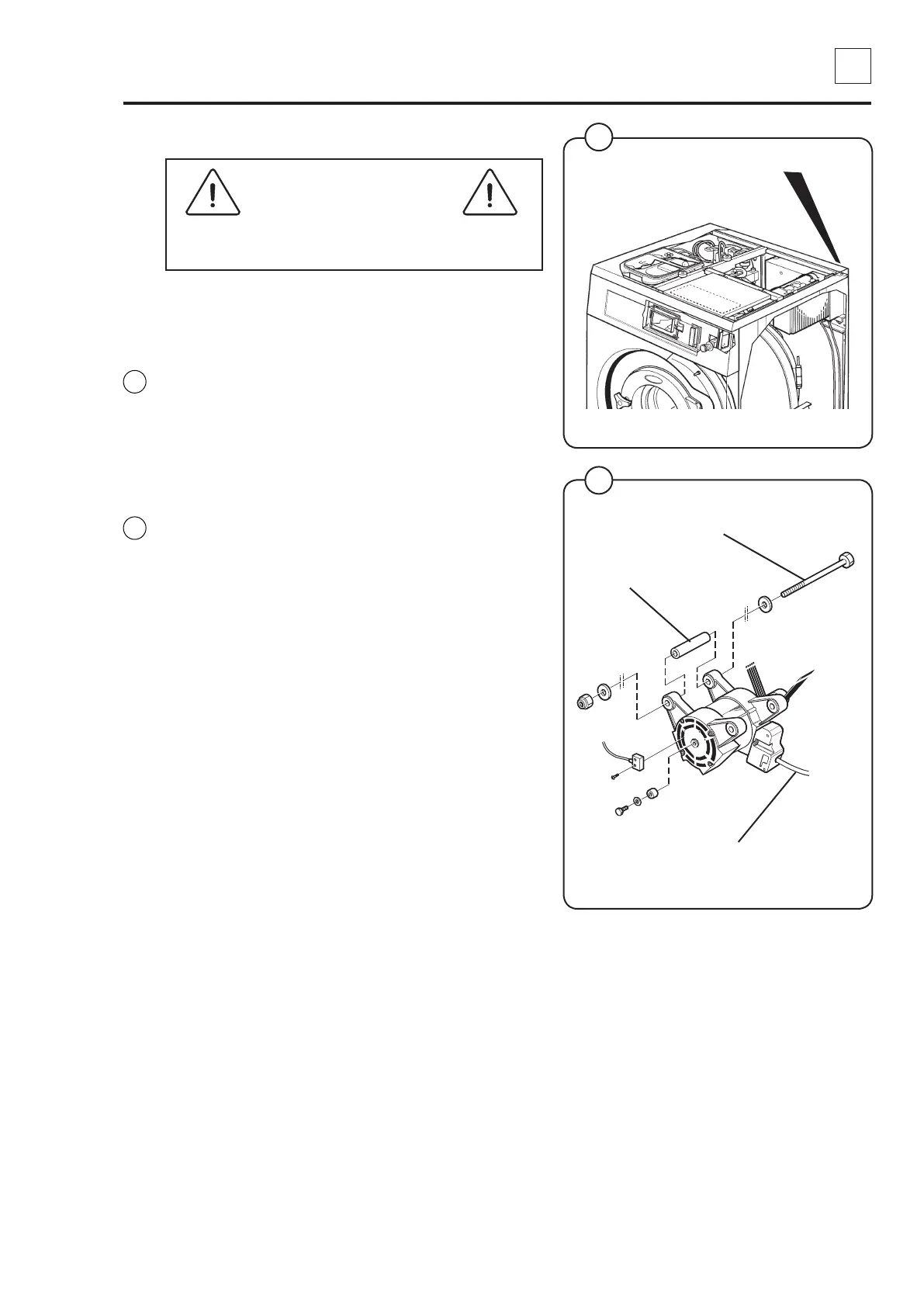

30. Motor and motor control
438 9145-81/07
06.42
Service
Manual
Repairs
Repair work on the machine should only be
done by specially trained personnel.
Motor replacement
Disassembly
1. Swith off power to the machine by turning
the main power switch to the 0 position.
2. Remove the rear cover.
3. Undo the bracket for the drain hose con
-
nector from the lower rear piece, then
remove the rear cover.
4. Undo the ground connection from the mo
-
tor.
5. Remove the drive belt by pulling the belt
towards you while rotating the drum by
hand.
6. Undo the motor cable from motor.
7. Lock the motor in place to avoid it from fal
-
ling when lifting it out.
8. Undo and remove the two motor mounting
bolts.
9. Lift out the motor.
10. Replace the sensor and magnet from the
old motor to the new one.
Assembly
1. Fit the new motor without locking the
mounting bolts.
2. Fit the drive belt and adjust the belt tension
with the tensioner on one side of the motor.
Se section Adjustments - Drive belt tension
for details.
Main power switch
Motor cable
5207
5221
Mounting bolt
Spacer
9
Fig.
9
10
Fig.
10
