38
38. Drain valve
4
438 9146-01/01
00.45
Service
Manual
Repairs
Repair work on the machine should only be
done by specially trained personnel.

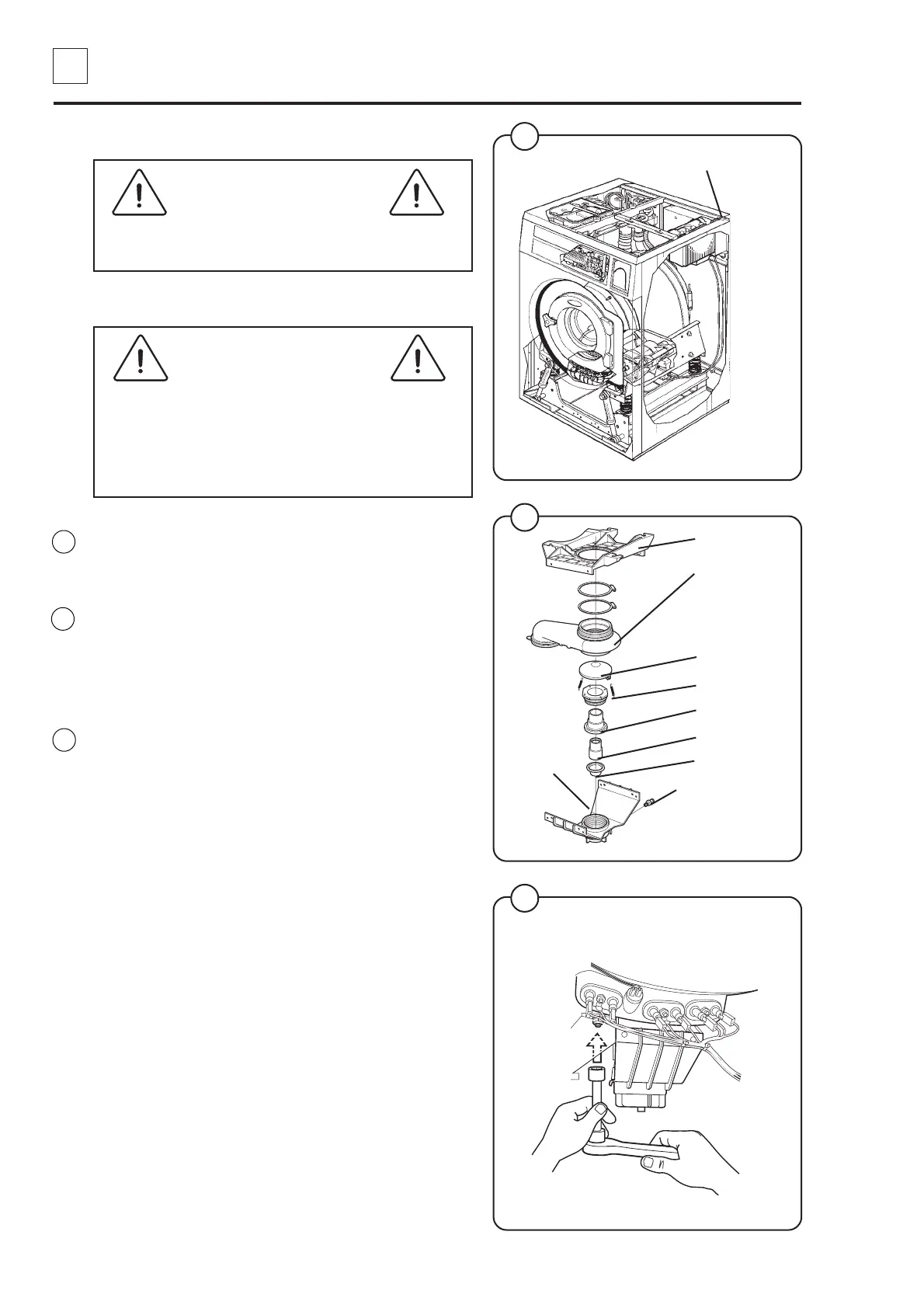

Disassembly
For repair works on the drain valve, there is
a risk that water still left in the machine may
flood onto the floor. Be sure to dry up any
spilled water since it may cause people to
slip and hurt themselves.
1. Take down power from the machine by turning
the main power switch to the 0 position.
2. Remove the front cover.
3. Disconnect the drain hose from upper part of
the valve.
4. Undo the hose clamp holding the valve rubber
bellows against the sleeve coupling of the
outer drum.
5. Loosen and unscrew the 4 retaining nuts of
the valve a couple of turns (use a socket,
extender and ratchet wrench). Turn the valve
and unhook it from the bolts.
6. Disconnect the pressure hose from the lower
part of the valve.
7. Replace the valve with a new one or replace
the defective part.
Lower part
5185
Main power switch
5222
Fig.
3
Fig.
4
Fig.
5
3
4
Upper part
Piston
Rubber
diaphragm
with drain
connection
Pressure plate
101772
Cylinder
Diaphragm
Recoil spring
Nipple for
connection of
feed hose from
control valve
5
