3. Machine presentation
3
9
438 9144-81/02
04.03
Service
Manual

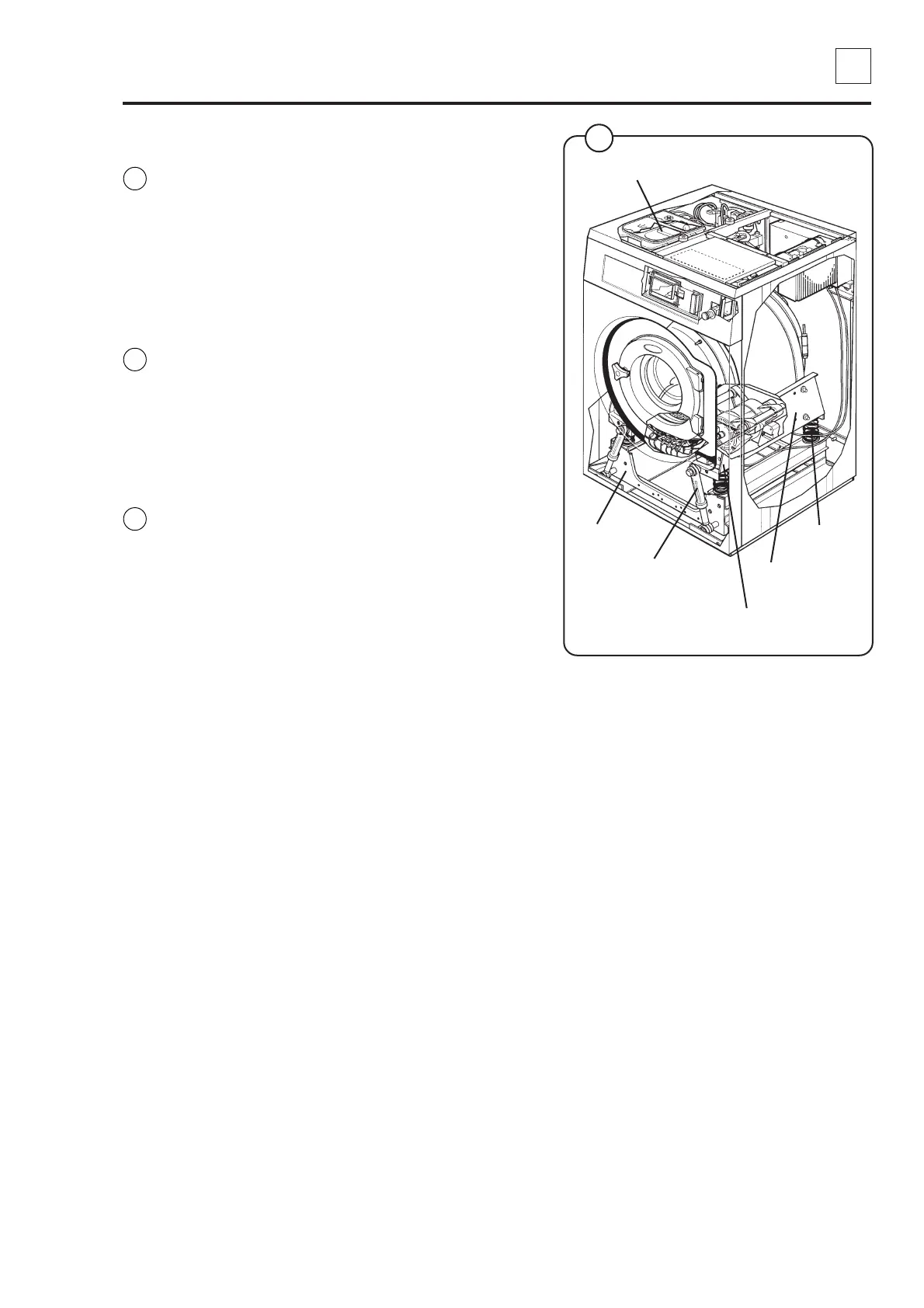

Inner frame
Drain valve
Coil spring
Detergent compartment
The compartment is divided into four for pre-
wash, main wash, rinse and bleaching-agent/
liquid detergent.
The detergent compartment of the machines is
described in detail in section 39. Detergent
compartment.
Drain valve
This valve is a diaphragm valve that opens and
closes by way of the water pressure. The control
valve is situated next to the water valves.
The drain valve of the machine is described in
detail in section 38. Drain valve.
Frame and dampers
The drum assembly is freely suspended by
springs and is allowed to move in relation to the
frame. This means a minimum of vibrations are
transferred to the frame, which implies simplified
installation since the machine need not be placed
on a concrete base.
The machine uses four coil springs between the
frame and drum assembly. Each spring is fitted
to one or two shock absorbers that dampen drum
movement.
The machine support is described in detail in
section 43. Frame.
Outer frame
Shock
absorbers
5207
Detergent compartment
10
Fig.
10
Fig.
10
Fig.
10
