29. Door and door lock
438 9145-61/06
04.10
Service
Manual
X95: Input from rotation sensor on motor
shaft
When the motor is operating, a pulse train is
applied on the input.
Input Function
Pin 1: DC 4-10 V feed
Pin 2: 0V
Pin 3: DC 4-10 V pulse input
Frequency > 0.4 Hz: drum is rotating
Frequency < 0.4 Hz: drum is not rotating
X96: Output to door lock
Locks the door lock when the following conditions
are met:
• DC 200-240 V on input X92 (programme unit
request door locking)
• DC 0 V on input X93 (no water in drum)
• DC +5 V on input X94 (motor not activated)
• <0.4 Hz on input X95 (drum not rotating)
• No error code present
Unlocks the door lock when the following
conditions are met:
• DC 0 V on input X92 (programme unit request
door opening)
• DC 0 V on input X93 (no water in drum)
• DC +5 V on input X94 (motor not activated)
• <0.4 Hz on input X95 (drum not rotating)
• No error code present
Voltage Function
DC 17-31 V, + on pin 1, - on pin 2 Unlock the door
DC 17-31 V, - on pin 1, + on pin 2 Locks the door

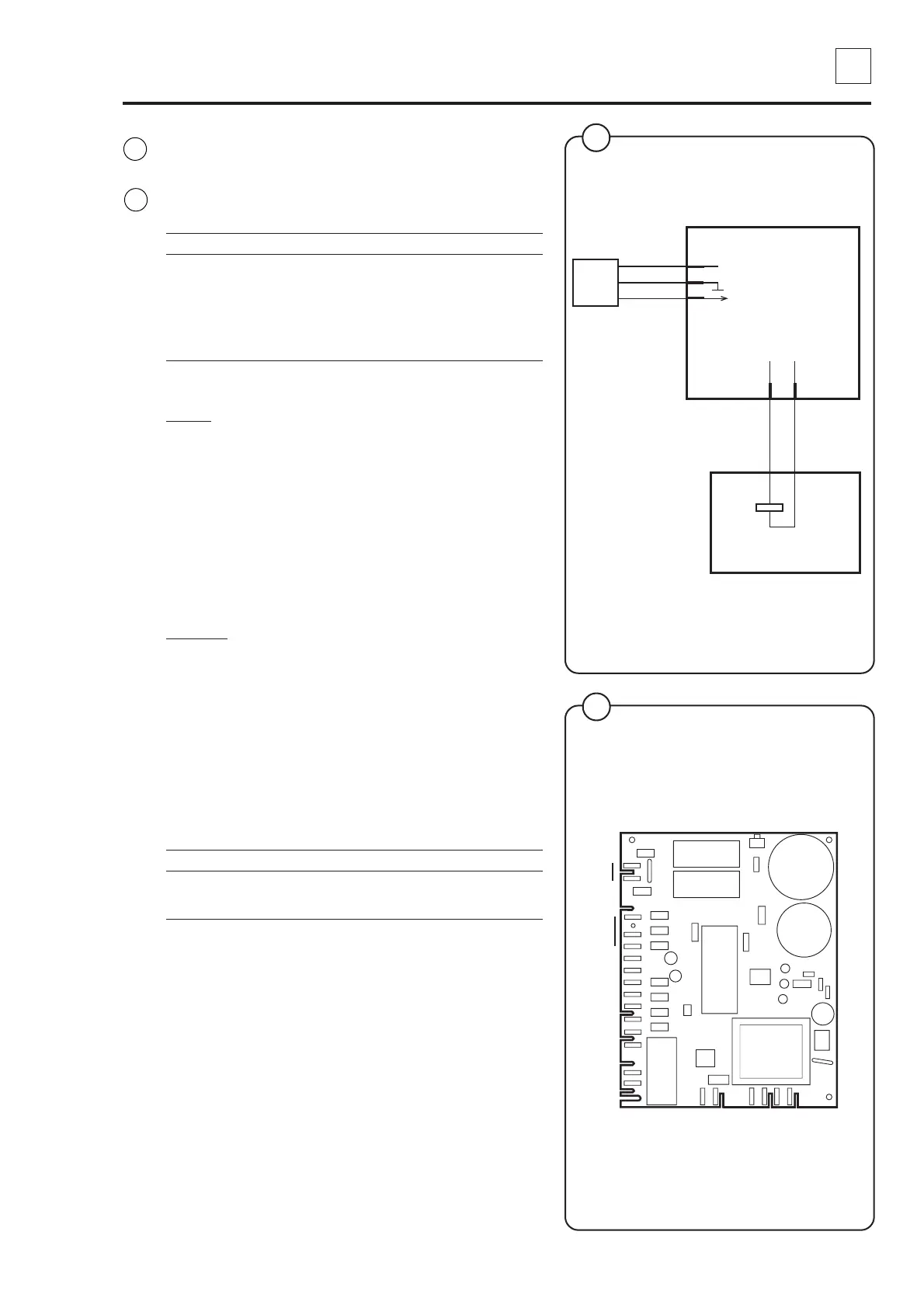

Door lock control A31
X95
1
2
3
Rotation sensor
B3
X96
1
2
Door lock A41
Y80
Unlocks + -
Locks - +
5184
5194
Fig.
11
Fig.
10
10
11
X96
X95
