29. Door and door lock
18
438 9145-61/06
04.10
Service
Manual
X95: Input from rotation sensor on motor
shaft
When the motor is operating, a pulse train is
applied on the input.
Input Function
Pin 1: 0 V
Pin 2: Tacho signal
X96: Output to door lock
Locks the door lock when the following conditions
are met:
• DC 200-240 V on input X92 (programme unit
request door locking)
• DC 0 V on input X93 (no water in drum)
• DC +5 V on input X94 (motor not activated)
• <3 Hz on input X95 (drum not rotating)
• No error code present
Unlocks the door lock when the following
conditions are met:
• DC 0 V on input X92 (programme unit request
door opening)
• DC 0 V on input X93 (no water in drum)
• DC +5 V on input X94 (motor not activated)
• <3 Hz on input X95 (drum not rotating)
• No error code present
Voltage Function
DC 17-31 V, + on pin 1, - on pin 2 Unlock the door
DC 17-31 V, - on pin 1, + on pin 2 Locks the door
5928
5933
Fig.
23
Fig.
22
22
23

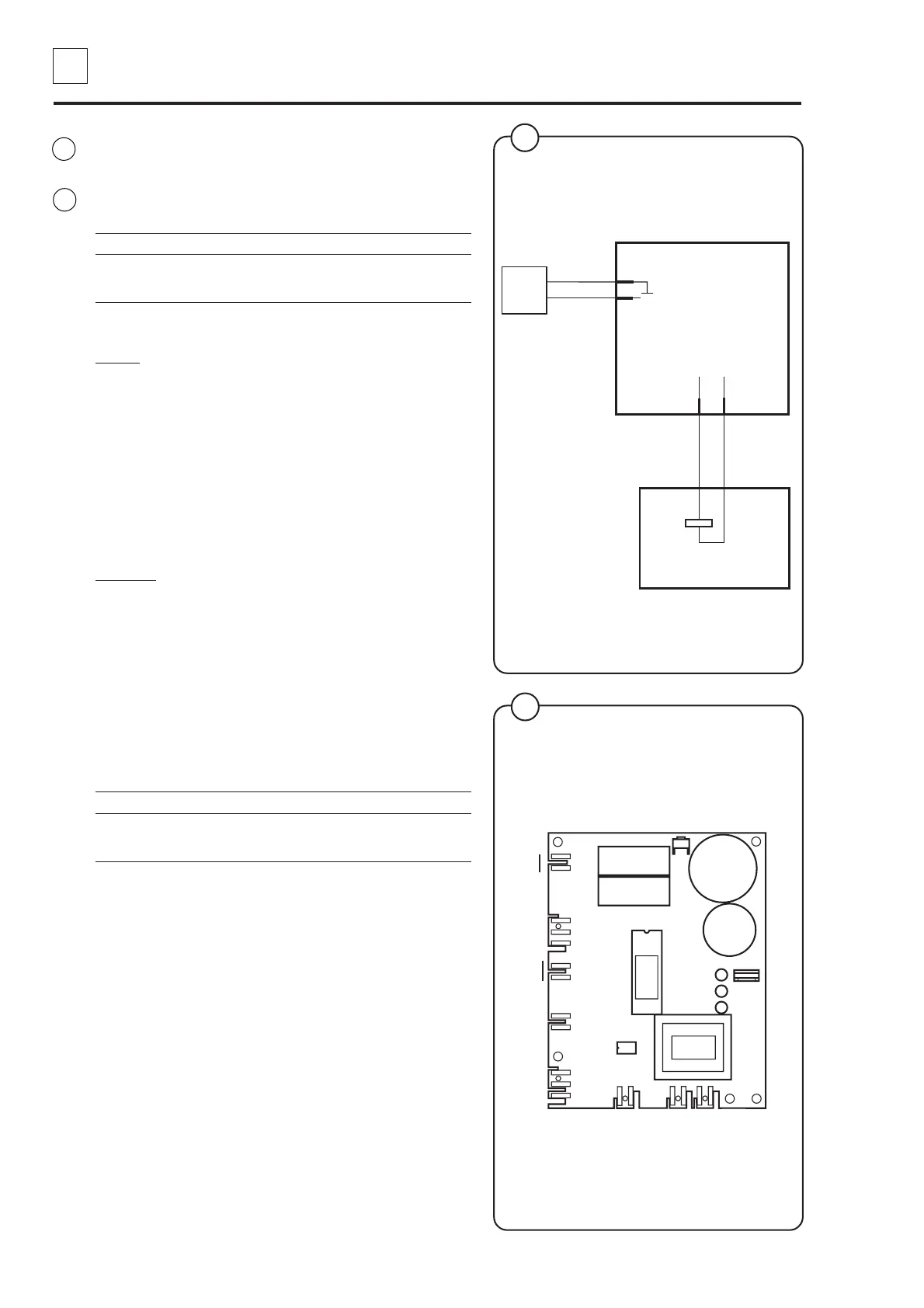

Door lock control A31
X95
1
2
Tacho generator
B3
X96
1
2
Door lock A41
Y80
Unlocks + -
Locks - +
X96 X94 X95
X97X93
X92
X91
X90
1
1
1
1
1
1
1
1
IC6
(K2) (K1)
X96
X95
