30
30. Motor and motor control
8
438 9145-81/07
06.42
Service
Manual
X304: Door lock connector
The collector output function is controlled from
the programme unit (X301). The collector output
does not switch on if there is no communication
with the programme unit.
Card No. Connection
X304:1 Common
X304:2 Not used
X304:3 Collector for output
Voltage, max : 15 VDC
Current, max: 10 mA
X308: Imbalance switch
Input from the imbalance switch (only fitted on
some machines). The imbalance switch is nor
-
mal open.
Input voltage
min: 120 V-20 % 50/60 Hz
max: 240 V+15 % 50/60 Hz
Current: max: 0,01 A
X311: Voltage supply
Input voltage, single phase or rectified three-phase
min: 200V-15%
max: 240V+10%

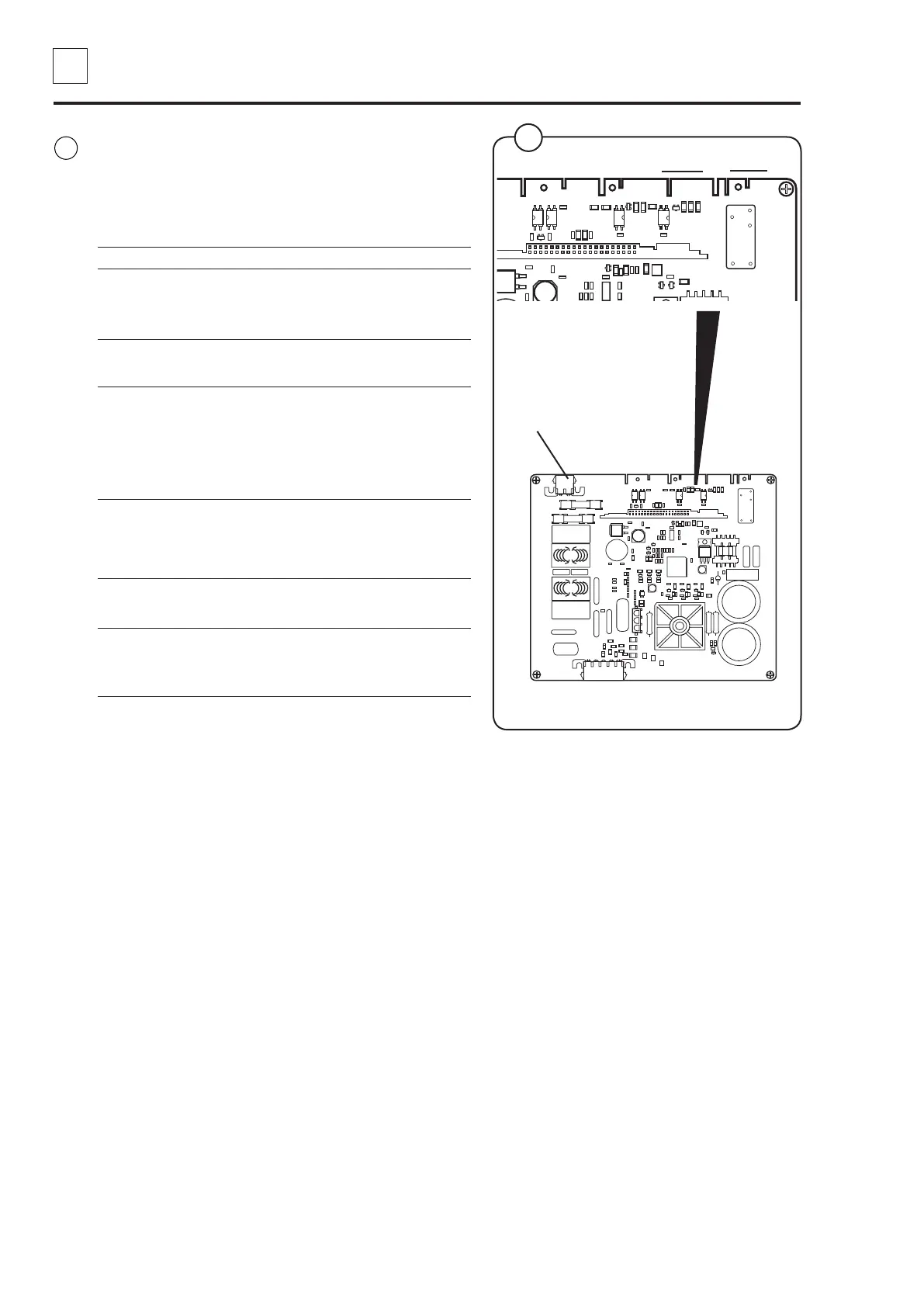

X308
1
X304
1
X311
5181
5
Fig.
5
