30. Motor and motor control
438 9145-81/07
06.42
Service
Manual
X304: Door lock connector
The collector output function is controlled from
the programme unit (X301). The collector output
does not switch on if there is no communication
with the programme unit.
Tacho signal from the motor (via door lock con-
trol A31) is needed to control the motor.
Card No. Connection
X304:1 Common, 0V
X304:2 Tacho signal
X304:3 Collector for output
Voltage, max : 30 VDC
Current, max: 10 mA
X308: Imbalance switch
Input from the imbalance switch (only fitted on
some machines). The imbalance switch is nor
-
mal open.
Input voltage
min: 120 V-20 % 50/60 Hz
max: 240 V+15 % 50/60 Hz
Current: max: 0,01 A
X311: Voltage supply
Input voltage, single phase or rectified three-phase
min: 200V-15%
max: 240V+10%

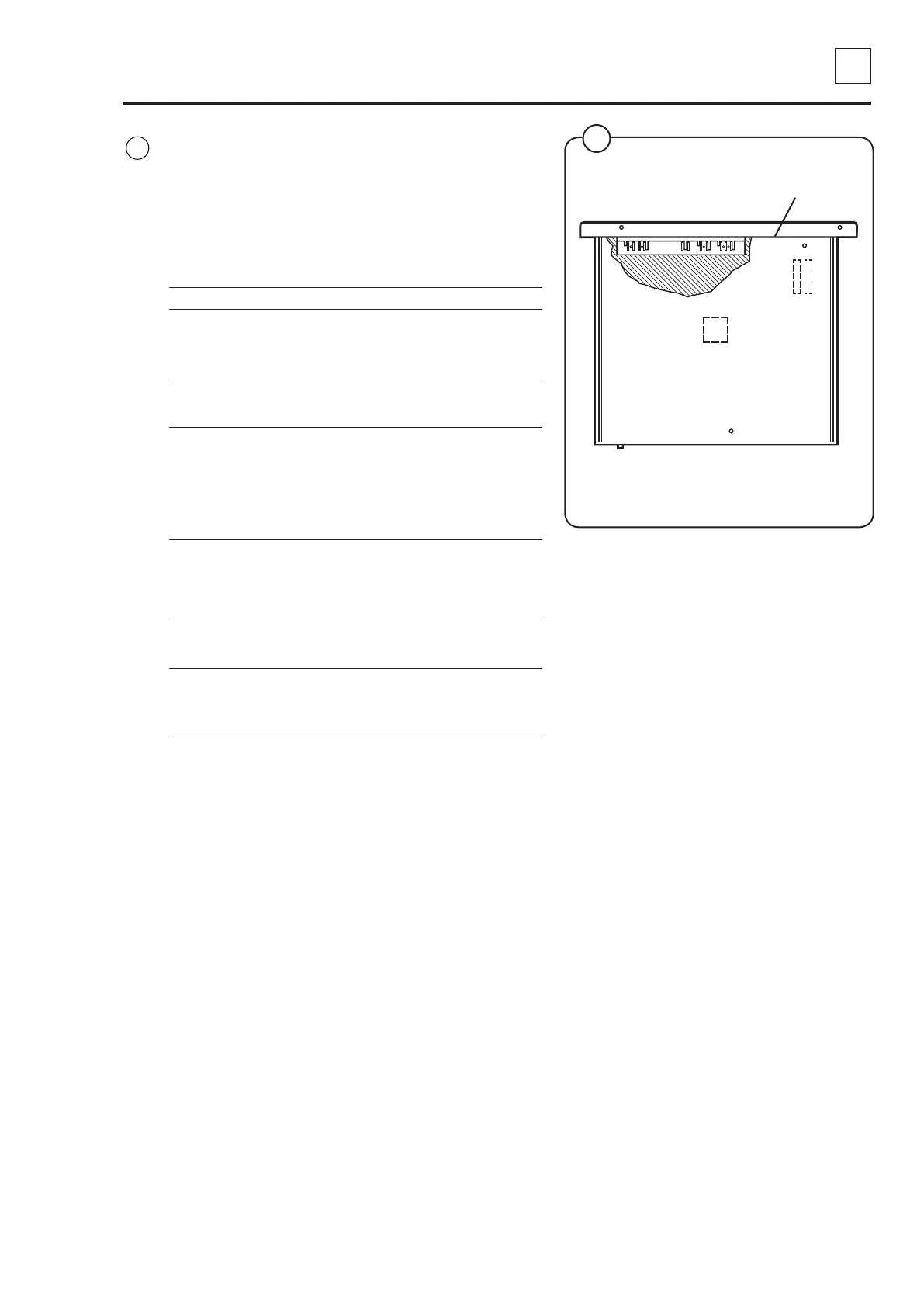

Fig.
17
17
5930
FLASH
EPROM
X304
X302
X308
X301
X311
