Electrolux W3105H Service Manual

12. Troubleshooting
12
16
438 9152-11/03
04.03
Service
Manual
Continued from previous page
4. Disassemble the door lock and verify the function of
S3 using an ohm meter.
Correct function Incorrect function
Replace S3./Change door
lock.
5. Inspect the cabling between X5 and S3 using an ohm
meter.
Cabling OK Incorrect cabling
Remedy or replace the
cables.
Inspect the mechanical function of the door lock.
Replace any defective components or replace the door lock.

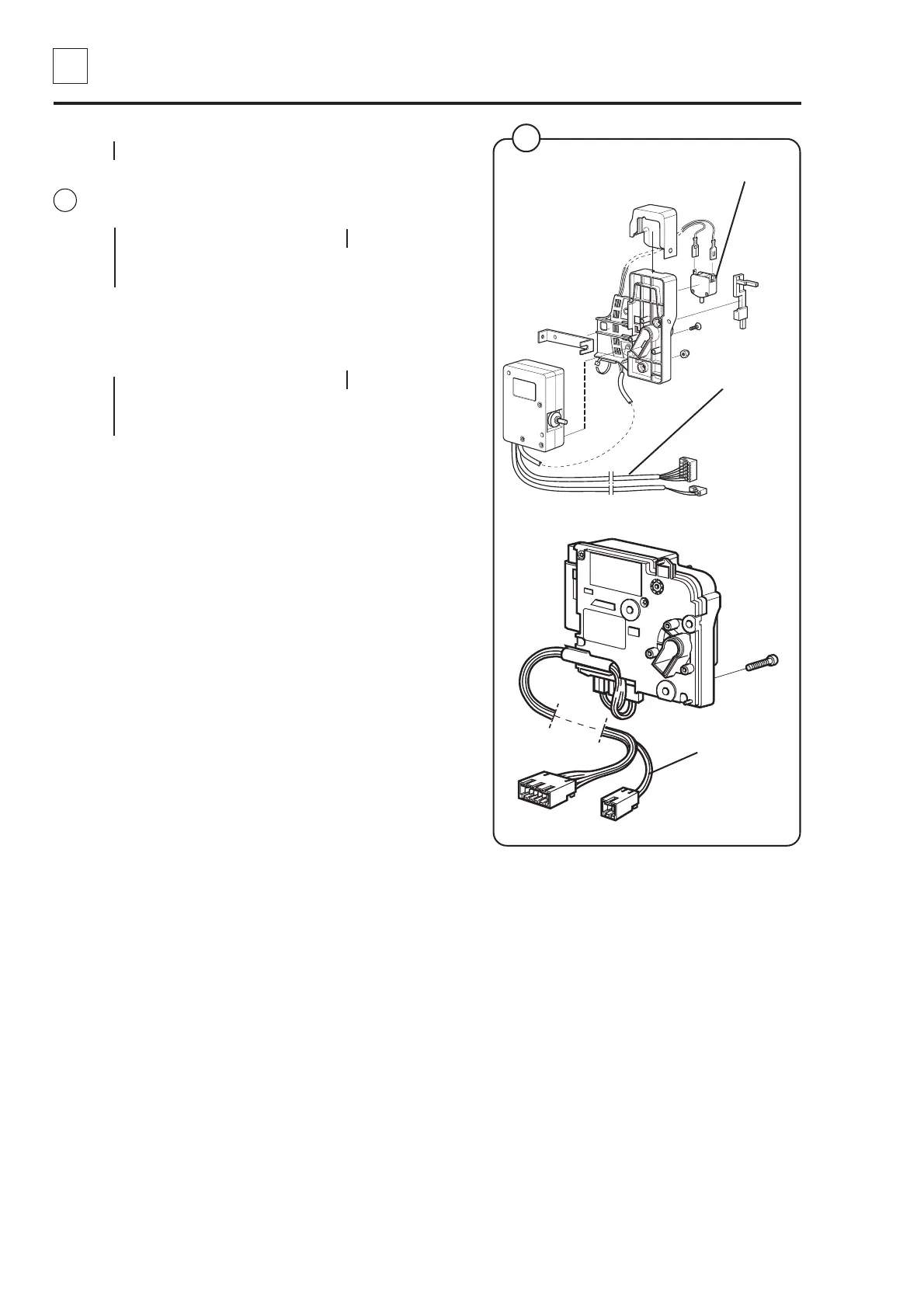

Fig.
10
10
5368
Microswitch S3
Cables
6112
Cables
