A4.1.3 RINSE MODULE

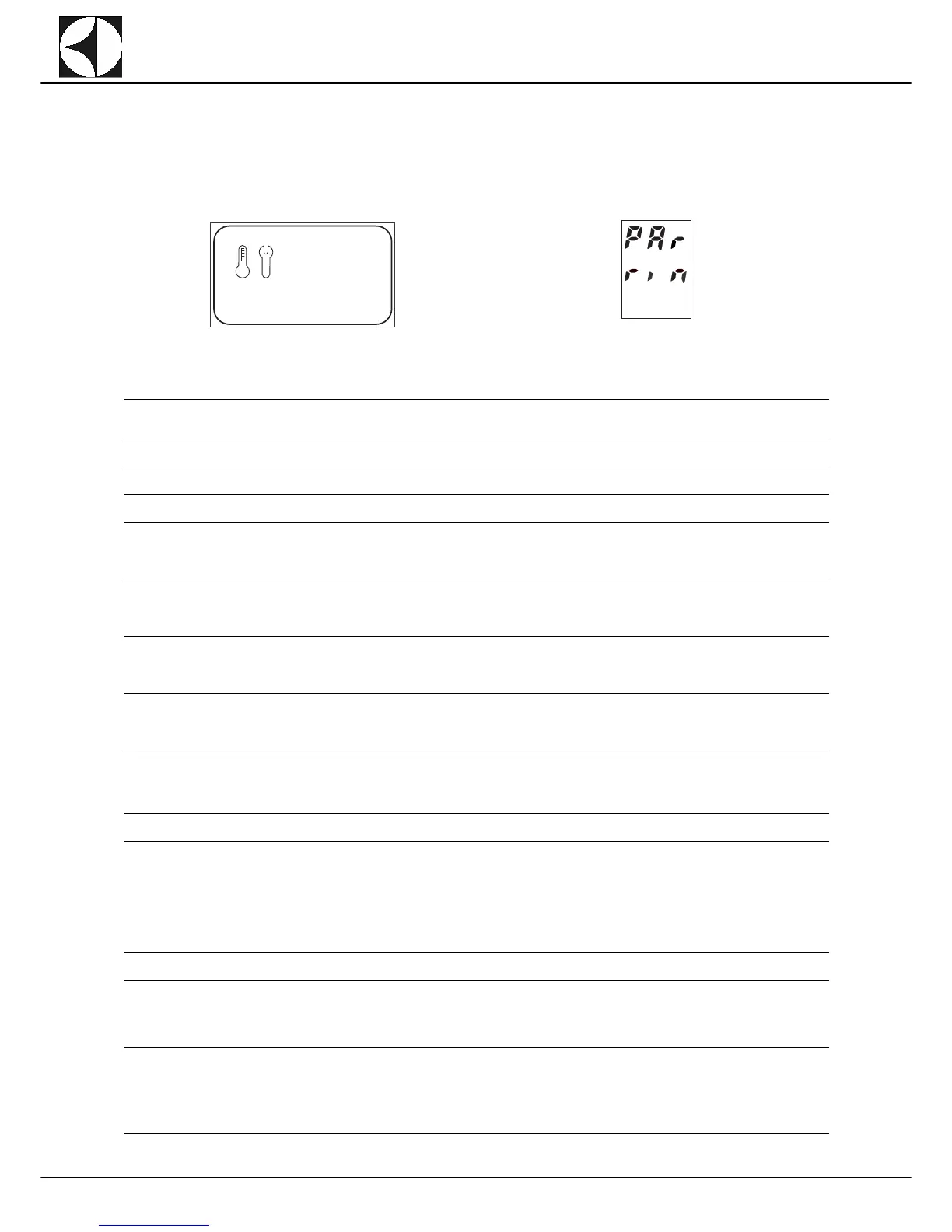

The RINSE MODULE family parameters are selected and edited by using the keys in the same way as that
described for the USER SETTINGS family.
The RINSE MODULE family contains the parameters that identify the rinse module characteristics.
The RINSE MODULE /  family parameters are described below:
MODULAR RACK TYPE
COMPACT RACK TYPE
Modular
parameter
Compact
parameter
Family
Nr.
Paramet
er
Nr.
Parameter description Unit of
measure
Min Max Factory
setting
Max. lev.
airgap(*)
(*)
2 0 Max water level in air gap. mmH2O 30 100 80
Max hist.
airgap(*)
(*)
2 1 Hysteresis level relative to max level in the air gap. mmH2O 0 80 30
Work lev.
airgap(*)
(*)
2 2 Water level in the air gap enabling rinse pump
operation.
mmH2O 0 100 40
Max. lev.
duo (**)
(**)
(meaningless
for compact
family)
2 4 Indicates the maximum level in the Duo rinse tank.
The filling stops when the water level reaches this
value.
mmH2O 30 100 55
Dm max
duo lev.
(**)
(**)
(meaningless
for compact
family)
2 5 Meaningful only during ““Drain and clean” cycle.
Indicates the maximum level during “Drain and
clean” cycle.
mmH2O 10 100 45
Max hist.
duo (**)
(**)
(meaningless
for compact
family)
2 6 Indicates the hysteresis level relative to the
maximum level in the Duo tank.
It is related to the “Max. lev. duo” and to the “Dm
max duo lev.”.
mmH2O 0 80 10
Work lev.
duo (**)
(**)
(meaningless
for compact
family)
2 7 Indicates the water level in the the Duo tank
enabling the Duo heating element and the Duo
pump operations.
mmH2O 0 50 30
Boil. temp.
start

2 9 Boiler temperature set point at start of rinse
phase; the initial overtemperature determined by
this parameter ensures that the introduction of
cold water in the boiler does not lower the rinse
water temperature at the start of rinsing.
°C / °F 10/
50
99/
210
92/198
Boiler
temper.

2 10 Boiler temperature set point. °C / °F 10/
50
99/
210
86/187
Boil temp.
wmup

2 11 Boiler warm-up temperature. During warm-up, the
boiler temperature is brought to the parameter
value, after which the boiler does not heat until the
start of the wash stage.
It is advisable to set the Boil temp. warm-up
parameter (
) as follows:
- electric machines = 
- steam machines  < .
°C / °F 10/
50
99/
210
86/187
Hist. boil
temp.

2 12 Hysteresis temperature relative to boiler
temperature set point.
°C / °F 0/0 15/
27
0/0
Standby
Delta T

2 13 When the machine is in standby mode, the water
inside the boiler is kept at a temperature of
 (It is used to save energy when
the machine is not in use; the boiler is kept at a
lower temperature).
°C / °F 0/0 70/
126
5/9
Active
threshold

(meaningless
for compact
SHORT
versions)
2 13 Indicates the temperature that determines the
colour of the active LED (red/green).
If the rinse temperature stays below the set value
for more than 2 minutes the LED turns red,
otherwise it is green.
Setting the parameter to 0 disables the active LED
(it remains off).
°C / °F 0/32 99/
210
75/167
RINSE MODULE
