Electrolux
EFS - Dishwashing Systems Platform
Electrolux Professional
DOC. NO. 5956.573.05 P. 7 2 / 8 8

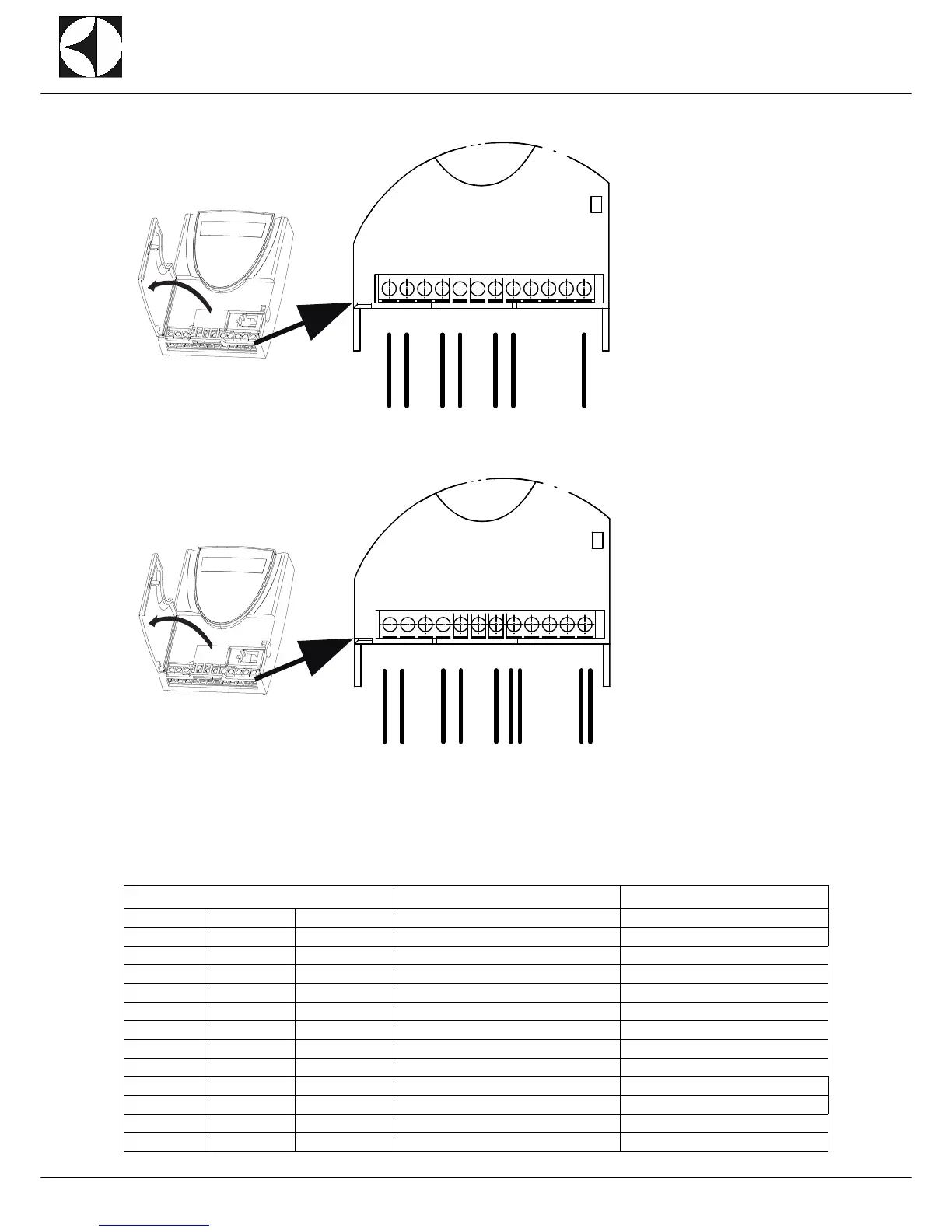

D1.1.2 INVERTER CONTROL TERMINAL ELECTRICAL CONNECTIONS
Figure 13 COMPACT RT Inverter electrical connection
Figure 14 MODULAR RT Inverter electrical connection
D1.1.3 INVERTER PARAMETER LISTS
Telemecanique speed drive Altivar 11 type ATV11PU12M2E380
Parameters for 110Vac gearmotor ( Delta connection)
KEY
(1) White
(2) Orange
(4) Violet
(5) Red
(7) Black
(8) Yellow
(12) Blue
KEY
(1) Black
(2) Orange
(4) Grey
(5) White
(7) Blue
(8) Green / Pink
(12) Brown / Yellow
Parameter Description Standard machine
ACC Acceleration ramp time 3.0
dEC Deceleration ramp time 0.5
LSP Low speed 0.0
HSP High speed 100
ItH Motor thermal current 3.6
SP2 2nd preset speed 10
SP3 3rd preset speed 25
SP4 4th preset speed 50
Alt Act Scale of analog input 10U
drC UnS Nominal motor voltage 110
FrS Nominal motor frequency 50
StA Frequency loop stability 20
FLG Frequency loop gain 50
RC
RA 0V AV1
DO
LI1
+15V
(1) (2) (4) (5) (7) (8) (12)
RC
RA 0V AV1
DO
LI1
+15V
(1) (2) (4) (5) (7) (8) (12)
