Electrolux WTCS90ERB - A4.1.5 Prewash Module

Electrolux
EFS - Dishwashing Systems Platform
Electrolux Professional
DOC. NO. 5956.573.05 P. 2 2 / 8 8
(*) For the other equipment families, see par. .
(**) The difference between the max water level and the hysteresis level must be higher than the working level:
Stanby level - Max lev. hister > Working level
> 
(**) The difference between the max water level during washing phase and the hysteresis level must be higher than the working level:
Run max level - Max lev. hyster. > Working level
> 
(**) The difference between the max water level during drain cycle and the hysteresis level must be higher than the working level:
Drain max lev. - Max lev. hyster. > Working level
> 

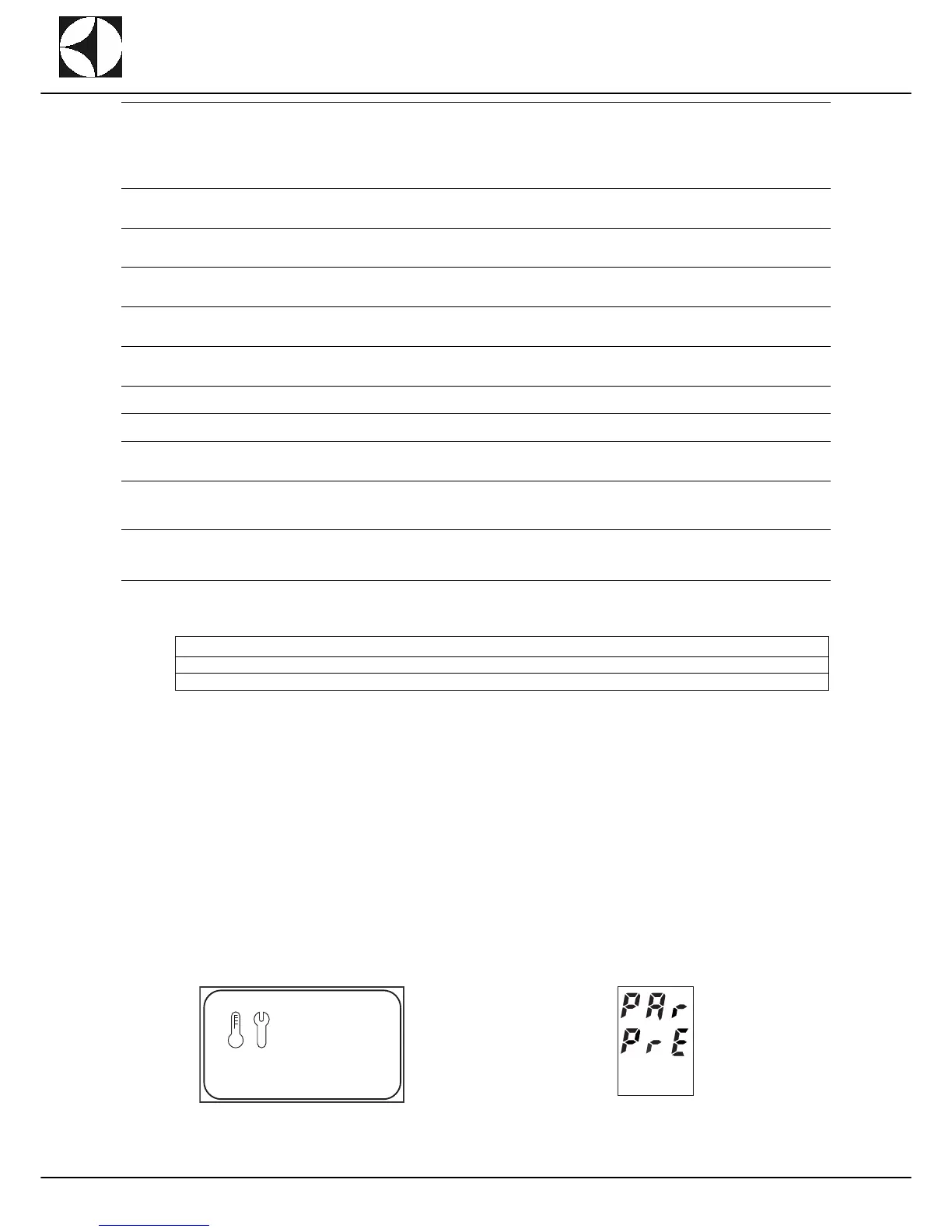

A4.1.5 PREWASH MODULE
The PREWASH MODULE family parameters are selected and edited by using the keys in the same way as
that described for the USER SETTINGS family.
The PREWASH MODULE family contains the parameters that identify the prewash module characteristics.
Temp.
Thresh.
CU

3 12 Meaninful only for machines with heat pump.
Indicates the CU temperature when the washing
tank heating elements stop.
This function is enabled only if the heat pump is
installed and allows maintaining the CU
temperature compatible with the heat pump
features.
°C / °F 20 / 68 70 /
158
48 / 118
Wash
san.
duration

3 13 Duration of wash tank cleaning phase during a
sanitization cycle.
sec 0 250 60
Fan delay
start

3 14 The time between start of wash and start of CU
fan ( Parameter not significant for Compact Rack
Type ).
sec 0 200 0
Fan delay
stop

3 15 The time between stop of wash phase and stop
of CU fan ( Parameter not significant for Compact
Rack Type ).
sec 0 200 20
Drain
delay

3 17 Time between reaching level “0” (air trap level) in
the tank and closing of the drain solenoid valve;
allows complete emptying of wash tank
sec 0 200 30
Autom.
drain del.

3 18 Time between two automatic water changes. If
this parameter is set at zero the function is
disabled.
min 0 250 120
Water to
drain

3 19 Quantity of water to be drained with each
automatic emptying.
mmH2O 0 100 25 (***)
Condensin
g unit

3 20 CU presence. - No/0 Yes/1 Yes/1
Wash
temp.
ready

3 21 Indicates the wash tank temperature that
determines the end of warm-up.
°C / °F 5/41 90/194 64/147
Pulse/lit
wash

3 22 Indicates the impulses per litre characterising
the possible flow meter connected to the wash
module feed.
Rating of the flow meter used.
P/Lit 0 999 0
Warning
lev wash

3 23 Indicates the max. level possible in the wash
tank before the start of an automatic draining
cycle. To prevent water spilling from the door in
case of clogging of the overflow due to dirt.
mmH2O 180 400 270
(***)
WASH TANKS 1165 mm /44” 1490 mm
Tank capacity 100 l 150 l
Water to drain (in litres/mm) 0,32 l/mm 0,485 l/mm
MODULAR RACK TYPE
COMPACT RACK TYPE
PREWASH MODULE
