C4.1.3 ENERGY PEAK CONTROL CONNECTION
Access to the electrical box of rinse module and connect ENERGY PEAK CONTROL between terminals 3
and 4 of terminal block X1.

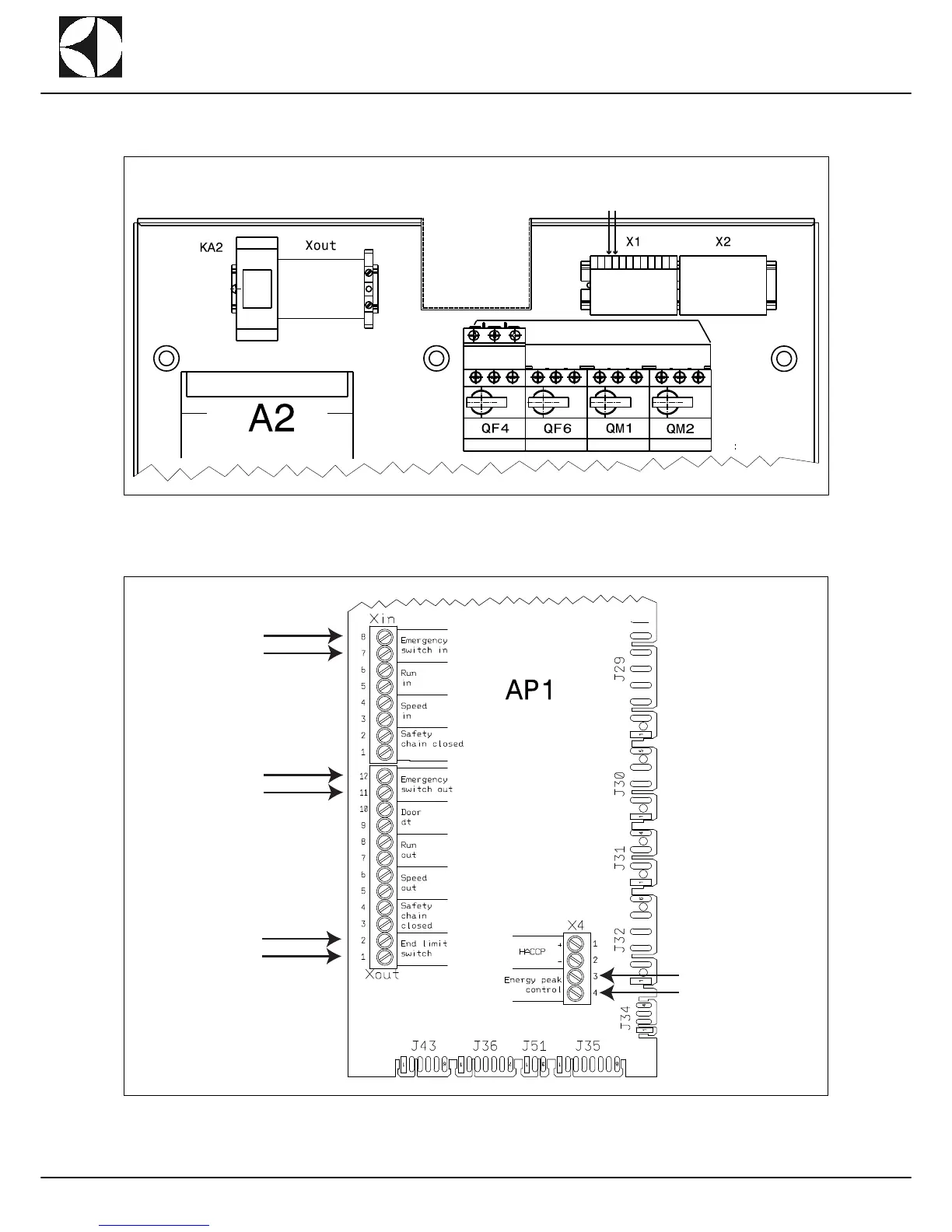

Figure 11 ENERGY PEAK CONTROL CONNECTION
C4.2 COMPACT SHORT
Figure 12 COMPACT SHORT CONNECTIONS
1 2 3 4 5 6 7 8 9 10 1112
ENERGY PEAK
CONTROL
X1 (3-4)
ENERGY PEAK
CONTROL
X4 (3-4)
EMERGENCY
SWITCH
XIN (7-8)
EMERGENCY
SWITCH
XOUT (11-12)
END LIMIT
SWITCH
XOUT (1-2)
