C3 CONNECTORS LAYOUT LEGEND
C4 END LIMIT SWITCH, ENERGY PEAK CONTROL AND EMERGENCY SWITCH CONNECTIONS
C4.1 MODULAR
The left and right side panels of the dishwasher have a connector “B” (Figure 9), closed with a plug “A”
(Figure 9).
Unscrew plug “A” (Figure 9) anticlockwise.
C4.1.1 END LIMIT SWITCH CONNECTION
Connect END LIMIT SWITCH (Outfeed side machine) between points 11 and 12 (Figure 10).
C4.1.2 EMERGENCY SWITCH CONNECTION
Connect EMERGENCY SWITCH OUT (Outfeed side machine) between points 7 and 8 (Figure 10) .
Connect EMERGENCY SWITCH IN (Infeed side machine) between points 7 and 8 (Figure 10).
F 3- F12 Main supply connector
F13-F16 Loads connector
F20-F28 Loads connector
F21-F31 Loads connector
F32-F37 Loads connector
F38-F40 Loads connector
x1 Temperature sensor connector
x2 Temperature sensor connector
x3 Inverter connector
x4 Temperature sensor connector
x5 Thermal protection, autostart, emergency switch - feed back inverter
x6 Board identification connector
x7 Air gap pressure sensor connector
x8 Gearmotor speed signal connector
x9 Thermal protection, autostart, emergency switch
x10 Door switch connector - user interface

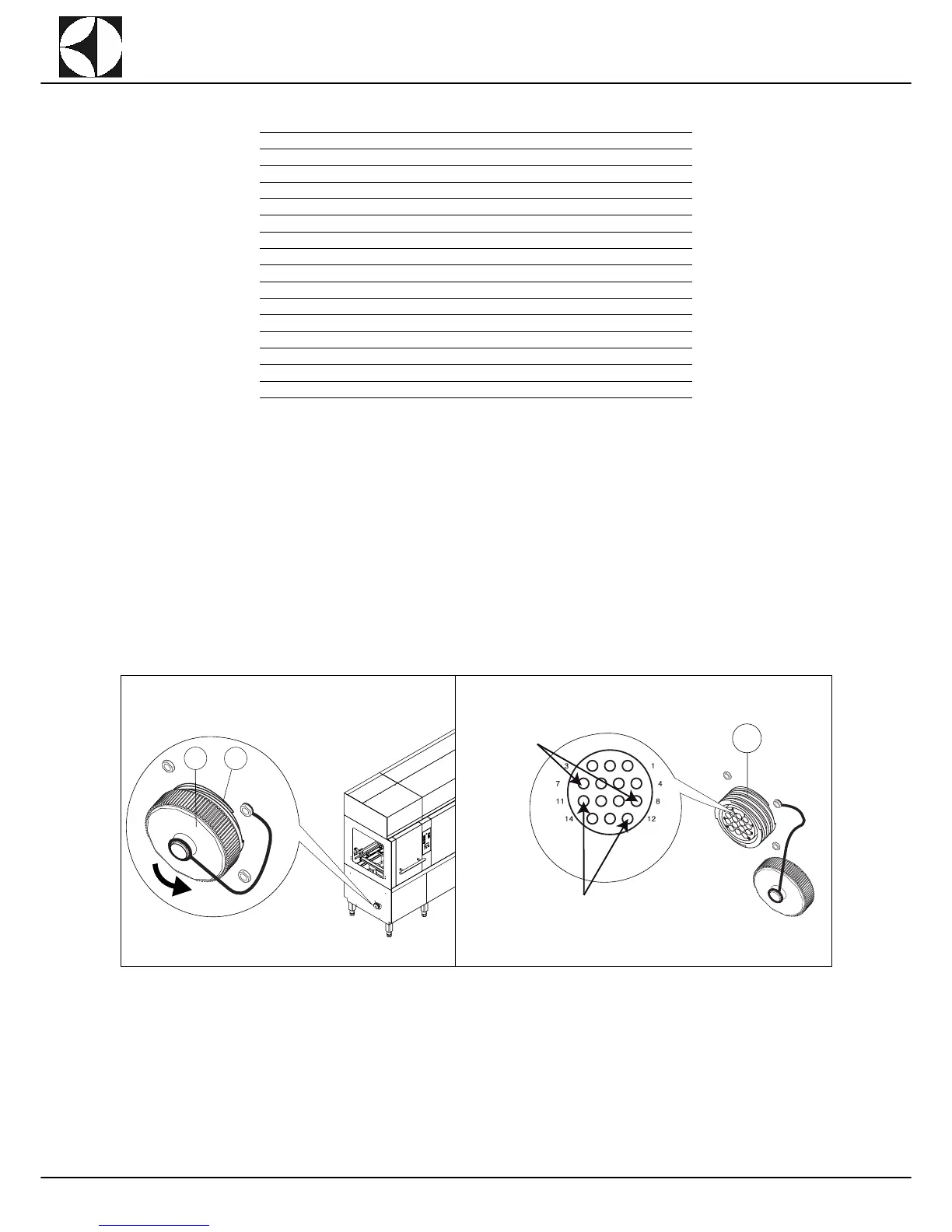

Figure 9 Electrical connection Figure 10 Detail of electrical connection
A
B
B
EMERGENCY
SWITCH (7-8)
END LIMIT
SWITCH (11-12)
