If the communication is working correctly the dispaly informs the user that the machine is ready to start a rinse
flow control cycle:
Press the confirm key (“C” - (Figure 1)) and a control cycle is started:
Wait about 2 minutes, during which the machine performs a series of air gap filling solenoid valve and rinse
pump activations, until the display will show the actual rinse flow:
Compare the result obtained with the data given in the table below and if the flow is higher or lower than that
indicated in the table, close or open the rinse flow regulating cock and repeat the control cycle until the opti-
mum value is reached.
WARNING:
The Rack Type leaves the factory with the cock already adjusted in the optimum position.
WARNING:
The indication of rinse flowrate can be subject to an error of ± 0,3 litres/min.
A4.6 KEY MANAGEMENT ( JUST FOR MODULAR RACK TYPE )
Not available.
MACHINE TYPE CORRECT FLOW (Lit/Min)
WTM140 / RTM140 4.00 (5.00 with heat pump)
WTM165 / RTM165 5.00
WTM180 / RTM180 5.00
WTM200 / RTM200 5.00
WTM250 5.00
WTM300 5.00
WTCS90 / RTCS90 4.00
WTCS140 / RTCS140 4.00
WTCS180 / RTCS180 4.00
WTCS250 / RTCS250 5.00

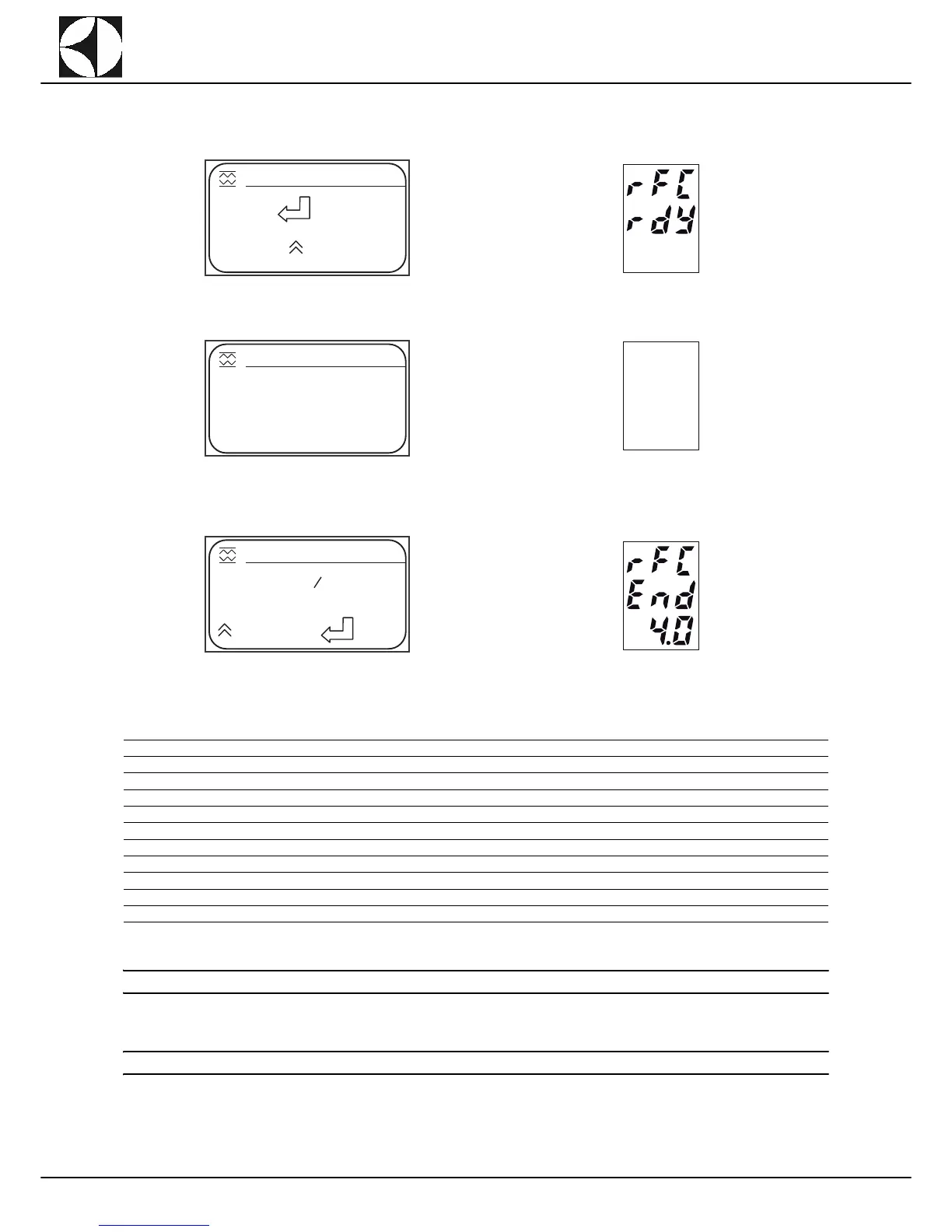

RINSE FLOW CONTROL
OR TO EXIT
PRESS TO START
RINSE FLOW CONTROL
RINSE FLOW CONTROL
IN PROGRESS
rfC
pRG
RINSE FLOW CONTROL
5,0 Lit Min
PRESS
TO REPEAT OR TO EXIT
