Electrolux
EFS - Dishwashing Systems Platform
Electrolux Professional
DOC. NO. 5956.573.05 P. 3 4 / 8 8

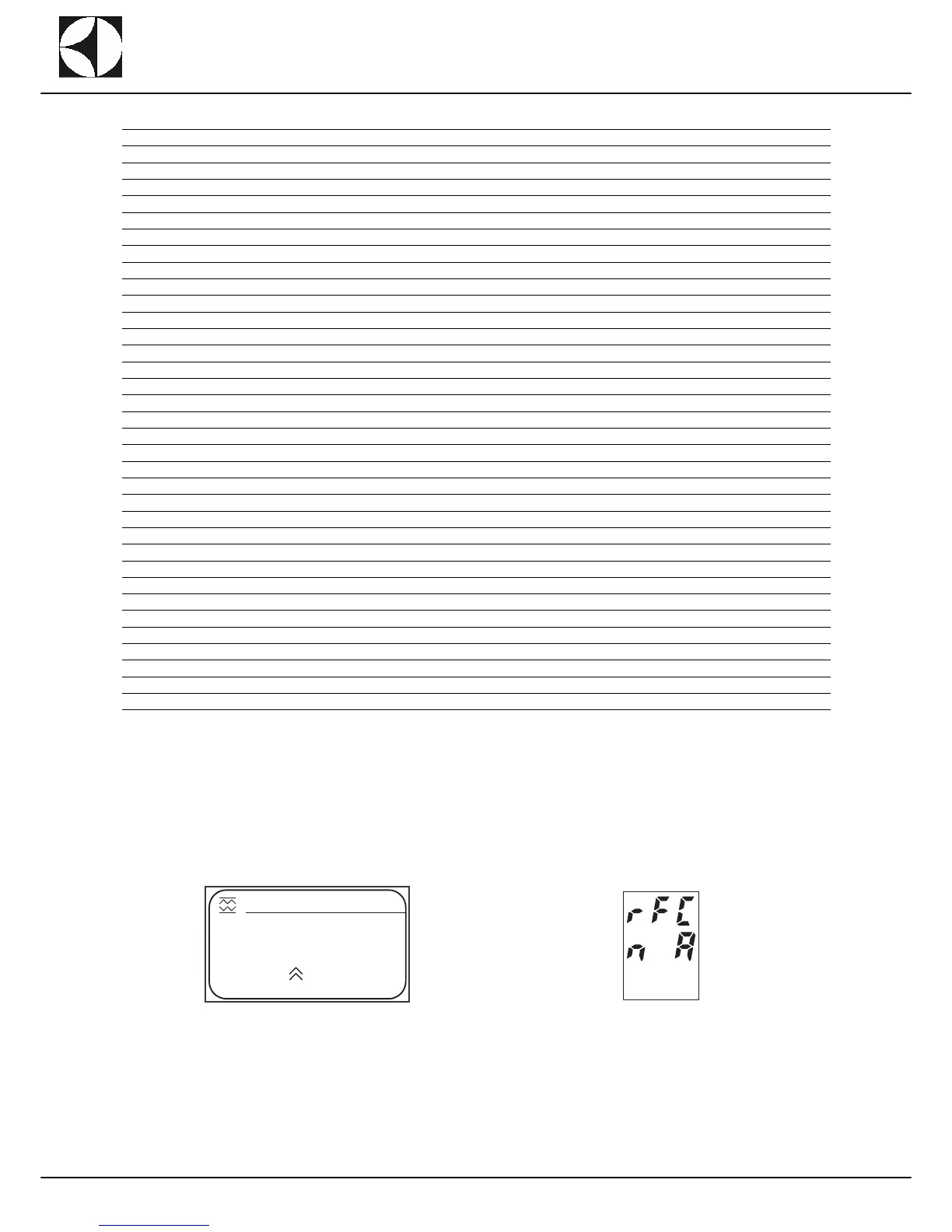

List of codes (LOAD CODE) of electric users in the machine:
A4.5 RINSE CONTROL ( JUST FOR ATMOSPHERIC RACK TYPE )
Press the confirm key (“C” - (Figure 1)) when the selection arrow indicates the item RINSE CONTROL (mod-
ular RT's) or when the message
appears on the display (compact RT's), and the machine is going to
start a rinse flow control cycle.
If there is a communication error between the rack type boards, the rinse flow control cycle cannot be carried
out.
In this case the display will show:
LOAD CODE Electric user description
1 Air gap filling solenoid valve (atmospheric machines)
2 Wash tank filling solenoid valve
3 Prewash tank filling solenoid valve
4 Boiler heating element
5 DUO heating element
6 Wash tank heating element
7 Wash tank second heating element (for machines with separately controlled tank heating elements only)
8 Prewash tank heating element
9 DT heating element
10 Upper wash pump
11 Lower wash pump (only modules with 2 wash pumps)
12 Upper prewash pump
13 Lower prewash pump (only modules with 2 wash pumps)
14 Rinse pump (atmospheric machines) rinse solenoid valve (pressurised machines)
15 DUO pump
16 CU fan
17 DT fan
18 DUO tank drain solenoid valve
19 Wash tank drain solenoid valve
20 Prewash tank drain solenoid valve
21 Wash pump impeller drain solenoid valve
22 Prewash pump impeller drain solenoid valve
23 Gear motor
24 Machine infeed motor-driven handling system start command
25 Machine outfeed motor-driven handling system start command
26 Machine infeed motor-driven handling system speed 2 start command
27 Machine infeed motor-driven handling system speed 2 start command
28 Heat Pump
29 Prewash module door opening
30 Wash module door opening
31 Rinse module door opening
32 DT module door opening
33 First boiler heating element (compact USA only)
34 Rinse aid dispenser (compact only)
