P100
User Manual
5
✓

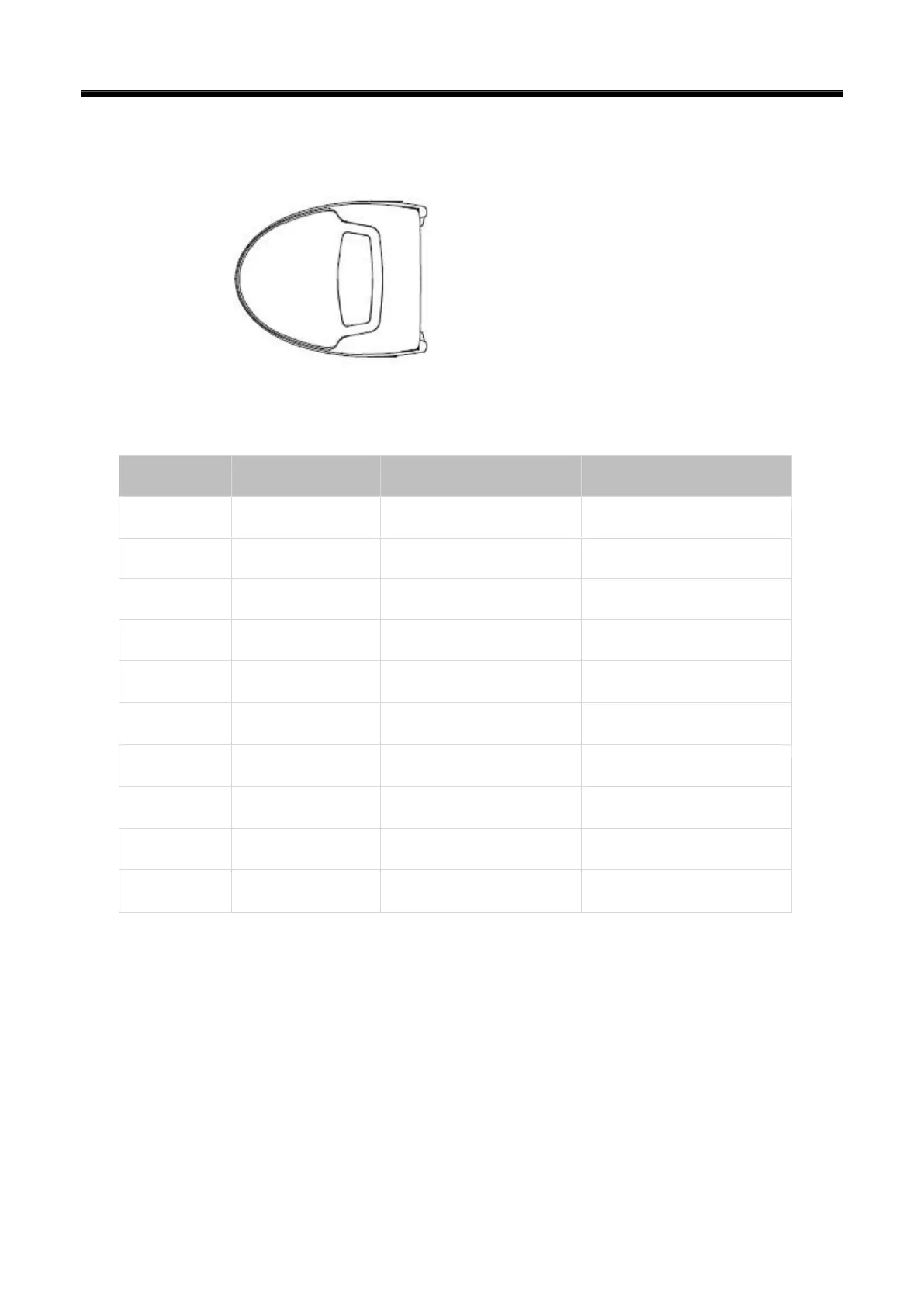

Top View
Scanner Data Cable Interface Definition
PIN
Define
Input / Output
Function
1
USB_DP
I/O
USB Signal
2
USB_DM
I/O
USB Signal
3
GND
POWER
Ground Wire
4
VBUS
POWER
Power, +5V
5
NC
NC
NC
6
GND
POWER
Ground Wire
7
CTS
I
RS232 Clear to Send
8
RTS
O
RS232 Request to Send
9
RXD
I
RS232 Receive
10
TXD
O
RS
232 Send
Interface
The
scanner
must
be
connected
to
a Hos
t i
n ac
tual
application, s
uch
as PC,
POS or
any
in
telligent
terminal with USB orRS-232 port.
USB
10
12
Table of Contents
default chapter
3
Table of Contents
3
Chapter 1 Introduction
7
Appearance
7
Dimension
8
Scanner Data Cable Interface Definition
11
Interface
11
USB Cable Connection
12
RS-232 Cable Connection
13
Power On, Power off and Restart
14
Maintenance
15
Barcode Read
15
Use the Setting Barcode
15
Restore Factory Defaults
16
Chapter 2 Communication Interface
17
Serial Interface
17
RS232 General Serial Interface
17
Baud Rate
18
USB Interface
18
HID Virtual Keyboard
18
USB International Keyboard Setting
19
USB Virtual Serial Port
23
Bluetooth Interface
24
Set Scanner Switch Time (Bluetooth Mode Only)
24
Bluetooth Pop-Up Iphone Keyboard Settings (Bluetooth Mode Only)
24
VID & PID Table
25
Chapter 3 Scanning Mode
25
Manual Mode
25
Sense Mode
25
Sensitivity
26
Continuous Mode
26
Command Programming
27
Chapter 4 Illumination and Aiming
28
Aiming
28
Illumination
28
Read Success Prompt Tone
28
Chapter 5 Symbologies
29
1D Barcode Setting
29
Ena-8
29
Enable/Disable EAN-8
29
Enable/Disable 2/5-Bit Add-On Code
29
Convert EAN-8 to EAN-13
29
Ena-13
30
Enable/Disable EAN-13
30
Enable/Disable 2/5-Bit Add-On Code
30
Upc-E
30
Enable/Disable UPC-E
30
Transmit Check Character
30
Convert UPC-E to UPC-A
31
System Character Transmit
31
Upc-E1
31
Enable/Disable 2/5 Add-On Code
32
Upc-A
32
Enable/Disable UPC-A
32
Transmit Check Character
32
Enable/Disable 2/5-Bit Add-On Code
32
Transfer System Character
33
Code 39
33
Enable/Disable Code 39
33
Check Character Verification and Transmit
33
Enable/Disable Code 39 Full ASCII
34
Convert Code 39 to Code32
34
Code 32 Prefix
34
Code 93
34
Enable/Disable Code 93
34
Code 11
35
Enable/Disable Code 11
35
Transmit Check Character
35
Code 128
35
Enable/Disable Code 128
35
Code 128 <FNC4
36
Codabar
36
Enable/Disable Codabar
36
Start and Stop Characters
36
Msi
36
Enable/Disable MSI
36
Check Bit Algorithm
37
Transmit Check Character
37
Interleaved 2 of 5
37
Enable/Disable Interleaved 2 of 5
37
Check and Transmit Character
37
Convert I 2 of 5 to EAN-13
38
Matrix 2 of 5
38
Enable/Disable Matrix 2 of 5
38
Check and Transmit Character
38
Industrial 2 of 5
39
Enable/Disable Industrial 2 of 5
39
Standard 25
39
Enable/Disable Standard 25
39
Issn
39
Isbn
39
Data Bit Setting
40
Isbt 128
40
Enable/Disable ISBT 128
40
Gs1 128
40
Enable/Disable GS1 128
40
Gs1-128 Emulation Mode for UCC/EAN Composite Code
40
GS1 Databar
40
Enable/Disable GS1 Databar
40
Convert GS1 Databar to UPC/ENA
41
GS1 Databar Limited
41
Enable/Disable GS1 Databar Limited
41
GS1 Databar Expanded
41
Enable/Disable GS1 Databar Expanded
41
1D Barcode Inverse
41
1D Barcode Anti-Color
41
2D Barcode Setting
43
Pdf417
43
Enable/Disable PDF417
43
Data Matrix
43
Anti-Color
43
Enable/Disable Data Matrix
43
Mirror Images
43
Inverse
44
Enable/Disable QR
44
Enable/Disable Micro QR Code
44
Anti-Color
45
Aztec
45
Inverse
45
Han Xin
46
Anti-Color
46
Inverse
46
Chapter 7 Troubleshooting
46
Chapter 8 Scanner Settings
47
Serial Port Command Format
47
Barcode Setting Format
47
Version Number--HYRS_RE
48
General Settings (Default HID Single Scan Mode)
48
Host Mode
48
Trigger Mode (Single Scanning, Scanning Continuously, Auto Sensing)
48
Default Parameters (Restore Factory Settings)
48
Decoding Timeout（0.1S~9S
49
Data Prefix
49
Data Suffix
49
Aiming Device (ON/OFF)
50
Illumination Light (ON/OFF)
50
Baud Rate of Virtual Serial Port
50
Check Bit of Virtual Serial Port
50
Multi Code Quantity
50
Multi Code Sensitivity
51
Buzzer Enable
51
The Convert Rate in HID Mode
51
Timeout Setting of the same Barcode in Non-Single Scan Mode
51
Sensitivity
52
Center Aiming Decode Setting
52
Virtual Serial Port Mode Command Settings
53
Barcode Function Settings
54
ITF Cut the First few Bits of Data
54
Convert Grouping Character to Space
54
Remove Zero Data at the Beginning of Barcode
54
Remove or Reduce Space
54
Skip the Number of Characters before Barcode Data
55
Skip the Number of Characters after Barcode Data
55
Barcode Data Case Conversion
55
Insert Characters into Barcode Data
56
Compound Command Parameters
56
Common Suffix
56
Appendix Ⅰ Barcode Enabling Settings
57
Appendix Ⅱ Data Code Prefix and Suffix
59
Appendix Ⅲ ASCII Code Table
66
