P100
User Manual

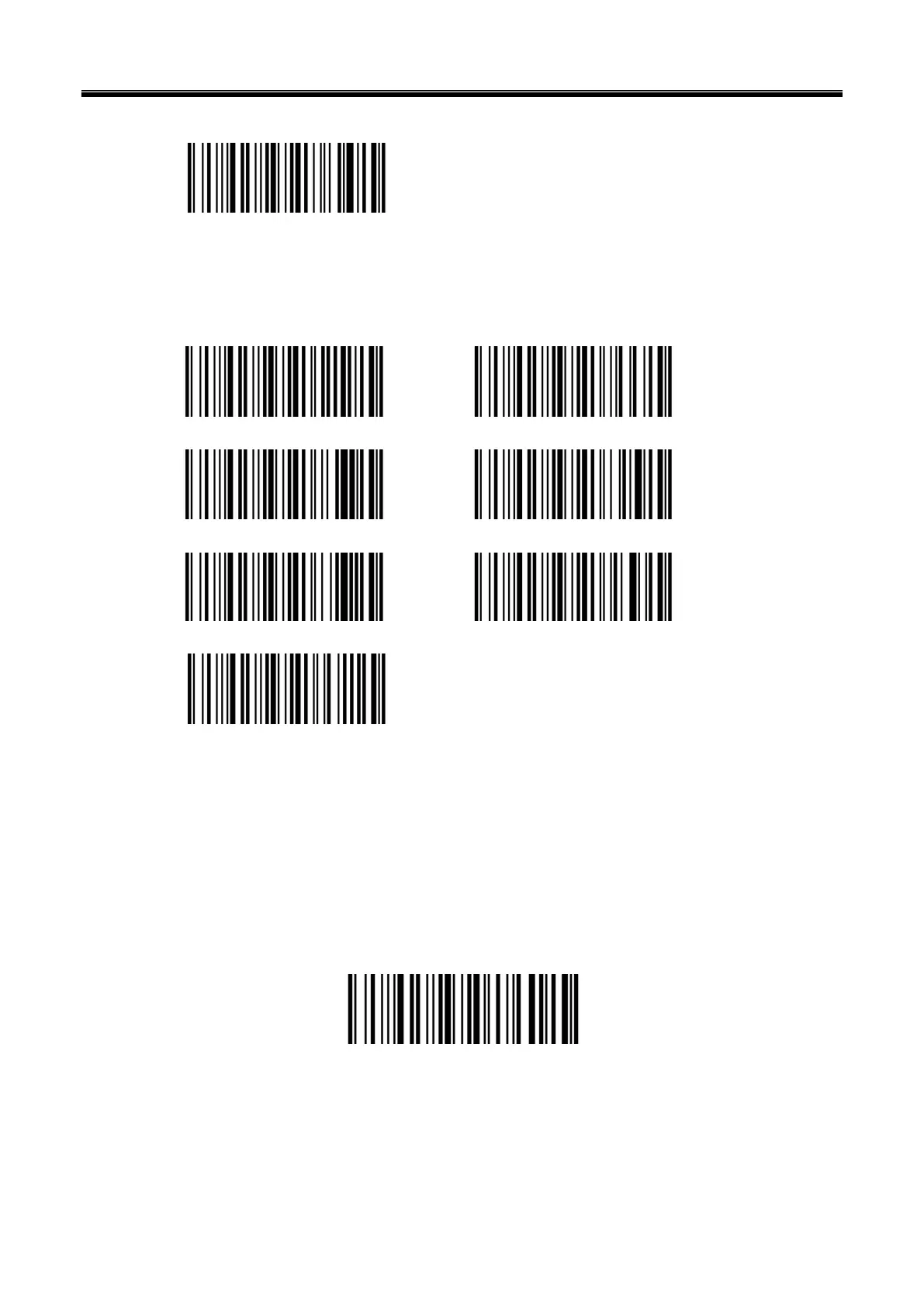

12
Even parity
Baud Rate
The
unit
of
Baud
Rate
is
bps:
bits
per
second,
the
optional
configuration
p
arameter
is
as
below
shown:
11
5200
38400
19200
9600 (Default)
4800
2400
1200
USB Interface
HID Virtual Keyboard
When
using
USB
interface,
the
scanner
can
be
simulated
as
a
HID
-KBW
device.
In
th
is
mode,
the
scanner would be a virtual keyboard that output the data to the host
.
HID Virtual Keyboard Setting
17
