2. Lower conveyor using Conveyor Up / Down
(#24).
3. Lower and rotate the main and side broom(s).
4. Increase engine speed to 2500 rpm.
5. Check broom patterns by sweeping in one spot
on a level paved surface for approximately 15
seconds.
6. Reduce engine speed to 1000 rpm.
O-15
OPERATION
5°
CURB

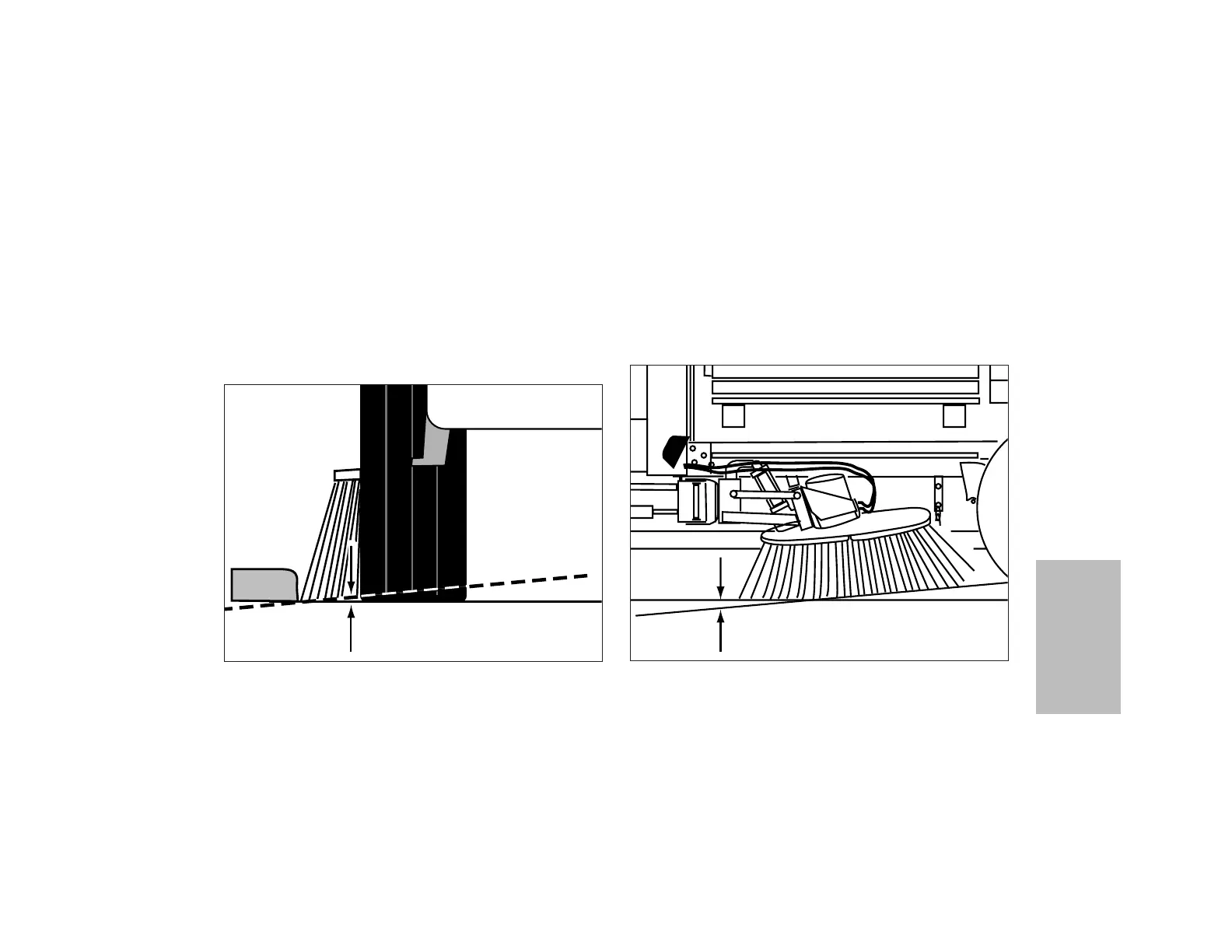

Figure O-3
Side Broom Outside Tilt
5°
Figure O-4
Side Broom Forward Tilt
