5. Turn key to ON without starting engine.
6. Place a protractor on the side broom disc and
parallel to the side plate of the sweeper.

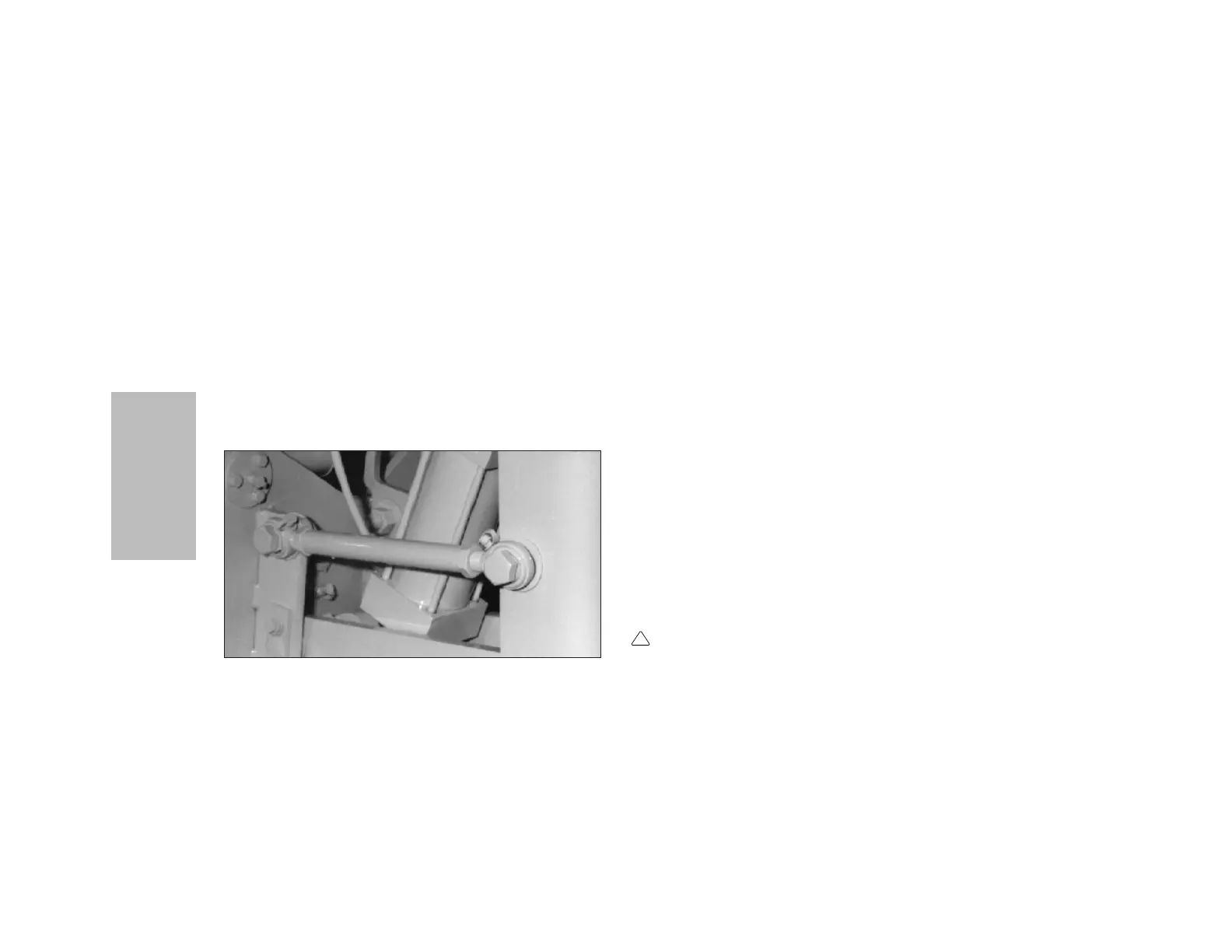

7. Loosen the jam nut on the turnbuckle (Figure
SP-12).
8. Turn the turnbuckle to set the broom at the
desired angle.
9. When the broom angle is properly set, tighten
the jam nut on the turnbuckle.
8. Start auxiliary engine.
9. Retract brooms using Side Broom In / Out
(right #5, left - #1), Side Broom Rotation / Up /
Down (Figure SP-1, right - #6, left - #2).
10. Stop auxiliary engine.
DOWN PRESSURE
Adjusting the down pressure at a side broom will
change the size of the broom pattern. More down
pressure makes a larger pattern. To correct side
broom downpressure, use the Side Broom Pressure
Regulator (Figure SP-1, #9) located on the control
console.
CAUTION
Rotating broom can cause personal injury. Do
not touch or step on side broom.
