4. Dump the contents of the bowl and wipe the
inside of the bowl. The bowl may be washed
using a non-sudsing detergent, such as dish-
washer liquid, and water. Bowl must be com-
pletely dry before reinstallation.
5. Reinstall the bowl with the “Full” line posi-
tioned so that it is easily visible.
6. Reinstall the cover and secure the bowl and
cover in place with the thumb screw.
Air Cleaner
The engine is equipped with a dual-element, dry-
type air cleaner with an automatic rubber dump
valve (Figure SP-4).
A sensor in the air cleaner signals when air flow is
restricted, causing the Air Filter Restriction
Indicator (Figure SP-1, #29) to light on the control
panel. This indication alerts the operator that the
air filter needs servicing.
To inspect the air filter, use the following proce-
dure:
1. Remove the center retaining bar from the filter
canister, then remove the canister cover.
2. Remove the outer element.
SP-5
SERVICE
PROCEDURES

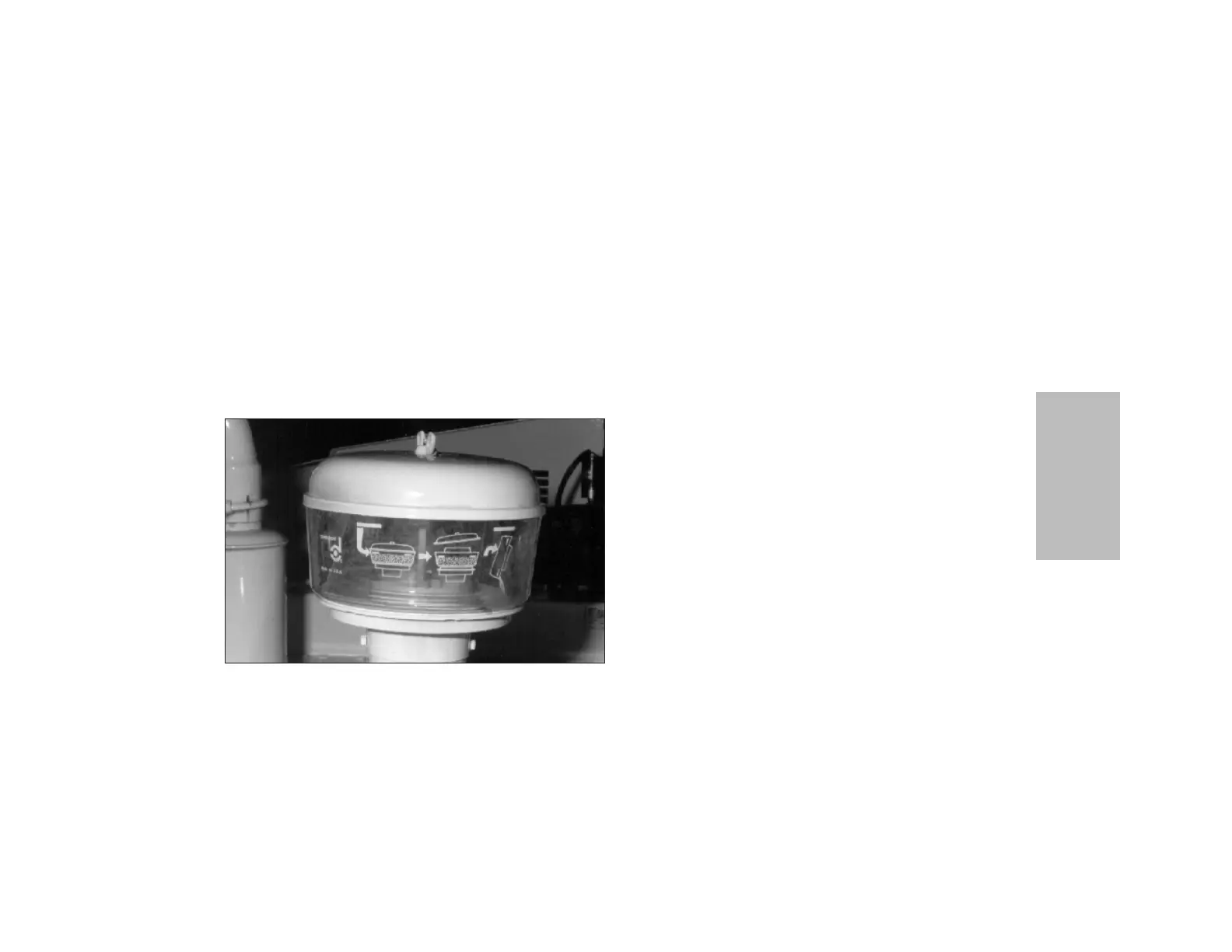

Figure SP-3
Air Pre-cleaner
