8. Install the outer element.
9. Secure the element with the retaining bar,
making sure the bar is in the correct position.
Auxiliary Engine Fluids
To drain the oil from the auxiliary engine, use the
plug (Figure SP-5) at the rear left side of the Eagle.
Refer to the engine operator’s manual for engine oil
recommendations.
For radiator coolant fluid Elgin Sweeper Company
recommends a 50/50 solution of standard perma-
nent automotive anti-freeze and water to protect to
-25° F (-32° C).
Fuel System
The fuel lift pump (C, Figure SP-6) draws fuel from
the fuel tank (K) and pushes it through the fuel fil-
ter (G) to the injection pump (A). The injection
pump forces fuel through the injectors (E), which
atomize the fuel and spray it into the combustion
chamber of each cylinder. The low pressure leak-off
return line (H) from the injection pump passes
through each injector and returns to the fuel tank.
SP-7
SERVICE
PROCEDURES

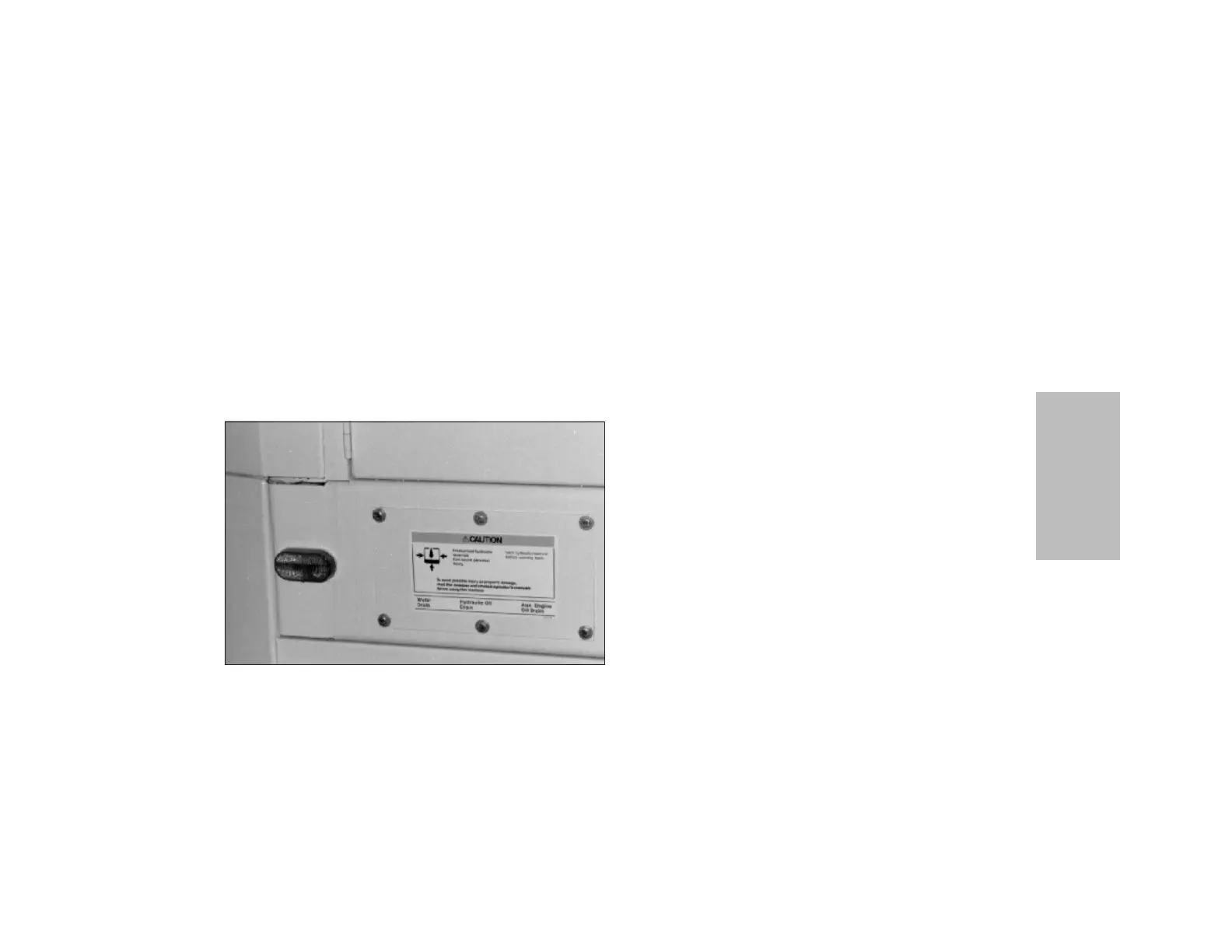

Figure SP-5
Drain plug
