Main Broom Adjustment
To adjust the main broom contact area, use the
Main Broom Pressure Regulator located on the
Control Console (Figure SP-1, #18).
DIRT SHOE ADJUSTMENT
Dirt shoes (Figure SP-13) ride perpendicular to the
ground to act as a guide to keep debris between the
main broom and the conveyor.
The main broom rotates between the two dirt
shoes. Wings at the rear of each dirt shoe assure
that the bristles are turned in and ride flush with-
in the dirt shoe housings.
Both dirt shoes should be correctly aligned and
ride level with the surface of the road. If incorrect-
ly aligned, the rubber will wear unevenly. If they
are not correctly positioned, this should be correct-
ed immediately.
To check for proper dirt shoe adjustment:
1. Lower the conveyor using Conveyor Up / Down
(Figure SP-1, #24).
2.
Lower main broom and start rotation using Main
Broom Up / Down / Rotate (Figure SP-1,
#25).
SP-17
SERVICE
PROCEDURES

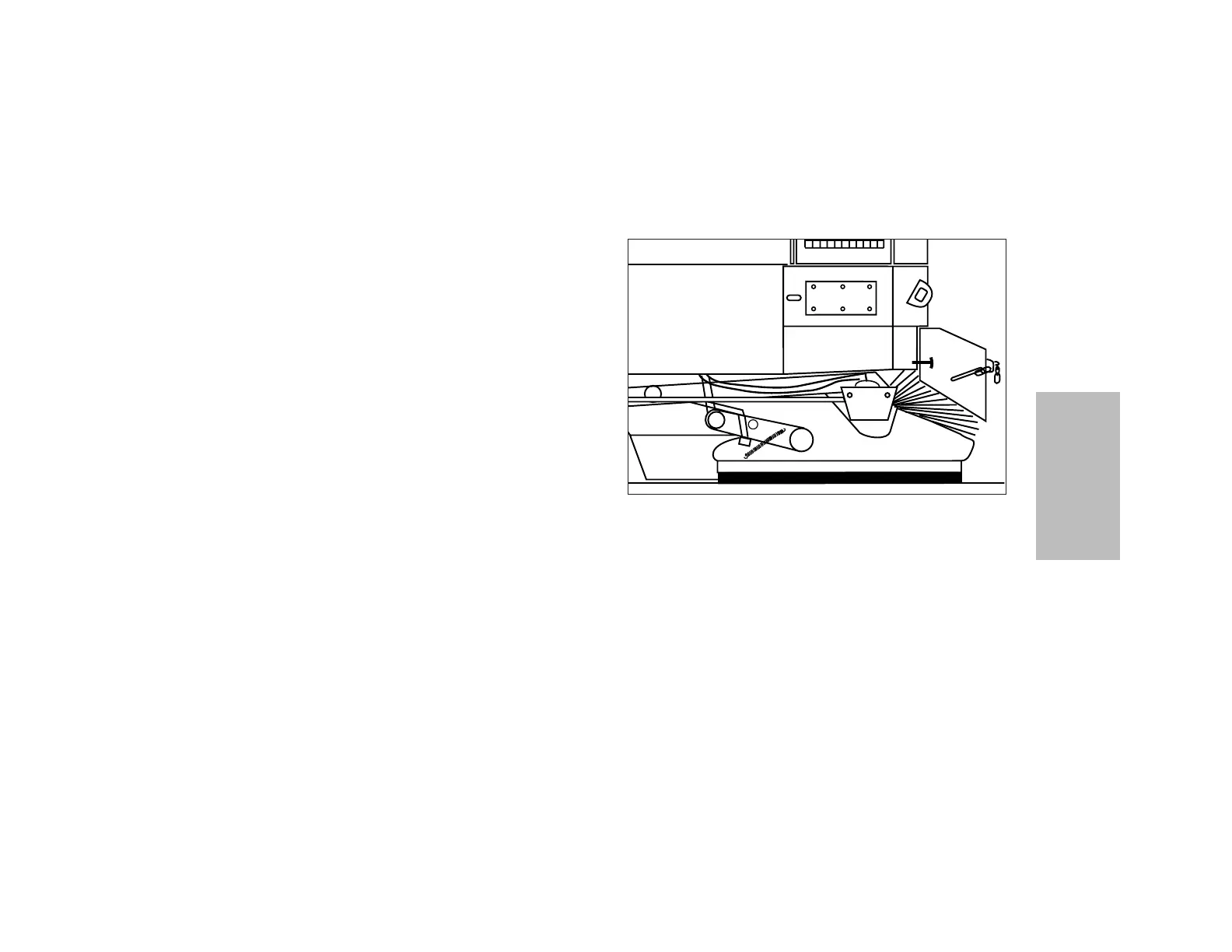

Figure SP-13
Dirt Shoe
