Three spray nozzles are located at each side broom
and at the main broom. An optional front spray bar
is available.
A fill hose is stored in the right side of the rear
engine compartment. Before filling the water
tank(s), always allow the hydrant to run to flush
out any sediment or debris in the hydrant.
The No Spray Water Indicator (Figure SP-1, #31)
will light when the spray water tanks are empty
and must be refilled.
Water for the spray water system passes through a
100 mesh filter prior to entering the water pump.
This stainless steel strainer filter is located behind
the rear right hand side panel and should be
cleaned daily.
To clean the water filter strainer, use the following
procedure:
1. Close the manual shutoff valve (Figure SP-11)
located between the water filter and the water
tank.
2. Unscrew the water filter housing from the filter
head and remove the strainer.
3. If the strainer needs cleaning, open the shutoff
valve and flush the screen with water, then
close the valve.
4. Install the strainer and screw the water filter
housing back into the filter head.
SP-13
SERVICE
PROCEDURES

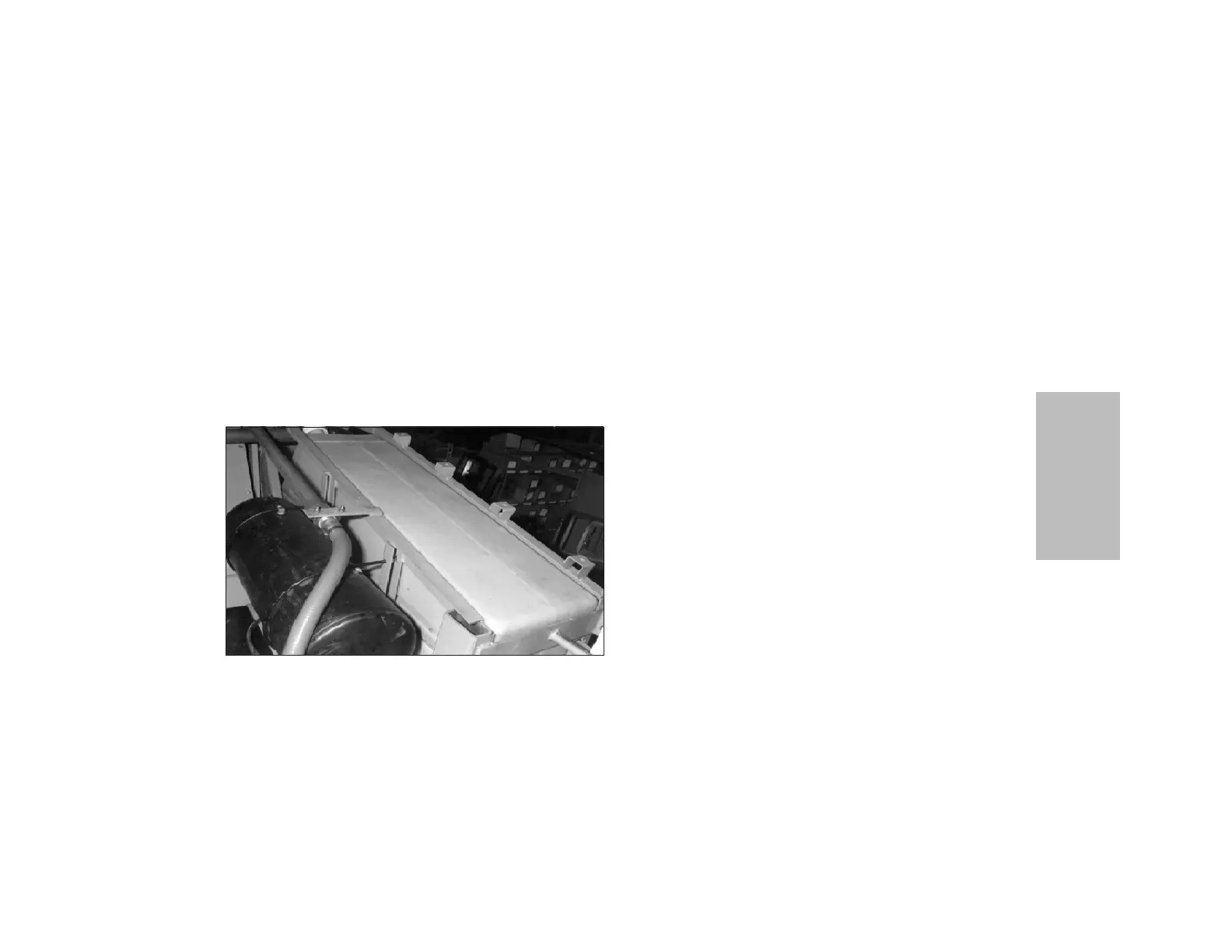

Figure SP-10
Top Of Spray Water Tank
