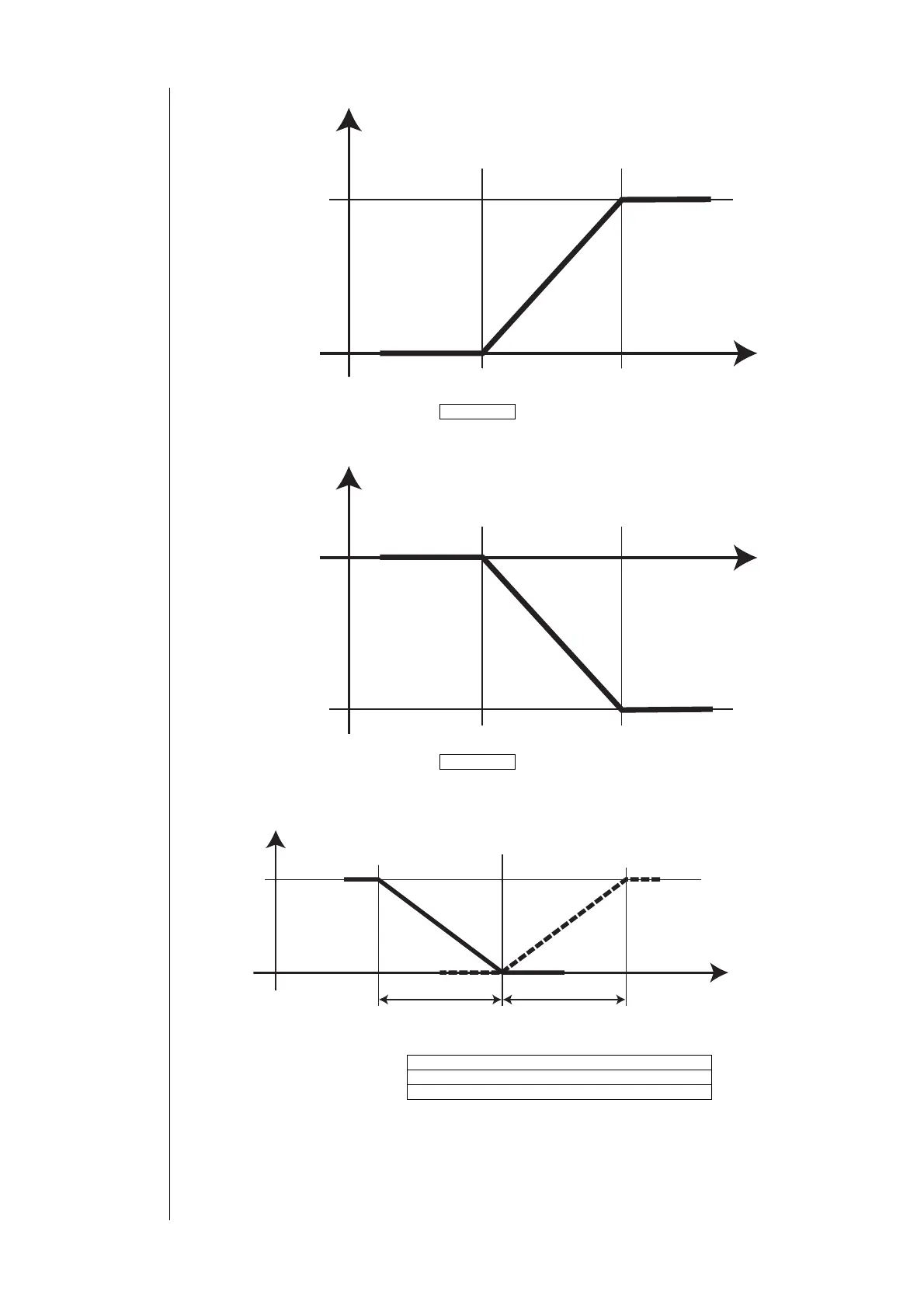

Positive Offset (H32>0 or H33>0)
Negative Offset (H32<0 or H33<0)
Positive Offset
Pa H34: outdoor temperature set point during cooling
Pa H35: outdoor temperature set point during heating
Ext Temp: outdoor temperature
Modification
depending on
current input with
positive offset
I: current
Modification
depending on
current input with
negative offset
I: current
Modification
depending on
outdoor
temperature with
positive offset
Max offset
I
4 mA 20 mA
Offset
Max offset
I
4 mA 20 mA
Offset
Delta < 0 Delta > 0 Ext Tem
p
Pa H34 (cooling) o Pa H35 (heating)
