(((ELKRON))) - MP110
PROGRAMMABILITY
CONTROL UNIT EXPANSIONS
READERS KEY
BOARD
PHYSICAL CONNECTION MODE
NORMALLY CLOSED YES YES YES YES
SINGLE BALANCING YES YES NO NO
DOUBLE BALANCING YES YES NO NO
INPUTS ACTIVE 24H
PANIC WITH SIREN YES YES YES
SILENT PANIC YES YES YES YES
FIRE YES YES YES YES
TECHNOLOGICAL YES YES YES YES
BURGLARY INPUT ASSIGN.
INSTANT YES YES YES YES
DELAYED YES YES YES YES
LAST OUTPUT YES YES YES YES
CHIME GONG YES YES YES YES
• INSTANT inputs (NC to positive or Balanced. to positive)
If open, they generate immediate alarm if the relevant sector is activated.
• DELAYED inputs (NC to positive or Balanced to positive)
If they are opened during the output delay they generate no alarm. If
they stay open or are opened after the output delay, the input time will
be activated, after which if the system is not placed in OFF, alarm will
be generated.
• LAST OUTPUT Inputs
The opening and the subsequent closing of one LAST OUTPUT input
during the output delay puts this time at about 5s.
2.4.2 Burglary inputs programming

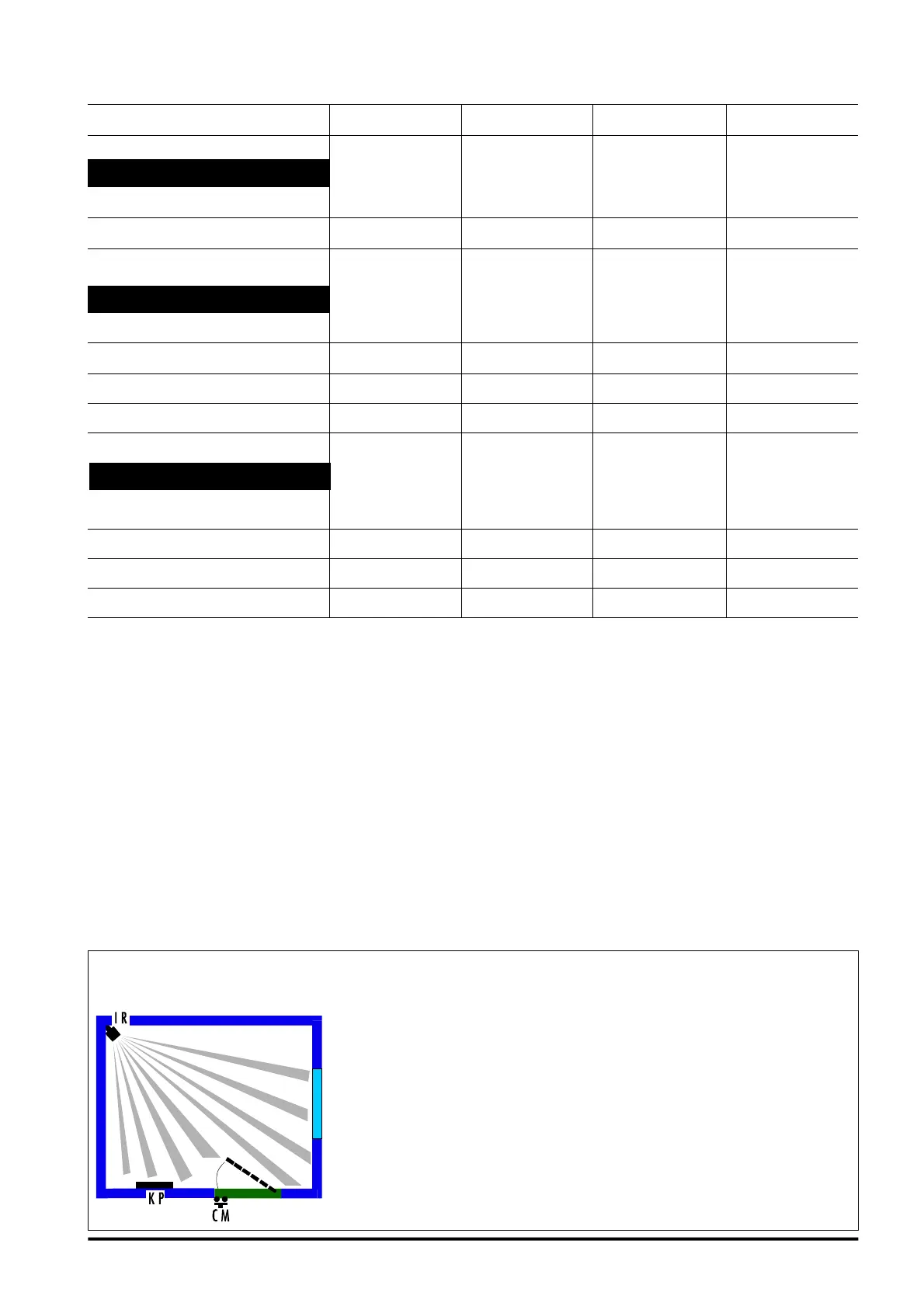

EXAMPLE OF USE OF LAST OUTPUT
INPUTS WITH DELAYED PATH
CM = microcontact (last output input)
IR = infrared (delayed input)
KP = remote keyboard
IIR is connected to a delayed input, CM to a programmed
LAST OUTPUT input. By activating the station from KP IR
measure is not considered, the following CM opening and
re-closing takes output delay to 5 seconds. If an intruder
gets in from a window there will be an immediate alarm
(even if IR is delayed). If he gets in from the door protected
by CM the entrance delay will be enabled.
window
2.4.1 Input programming table
12
