2.5 Outputs

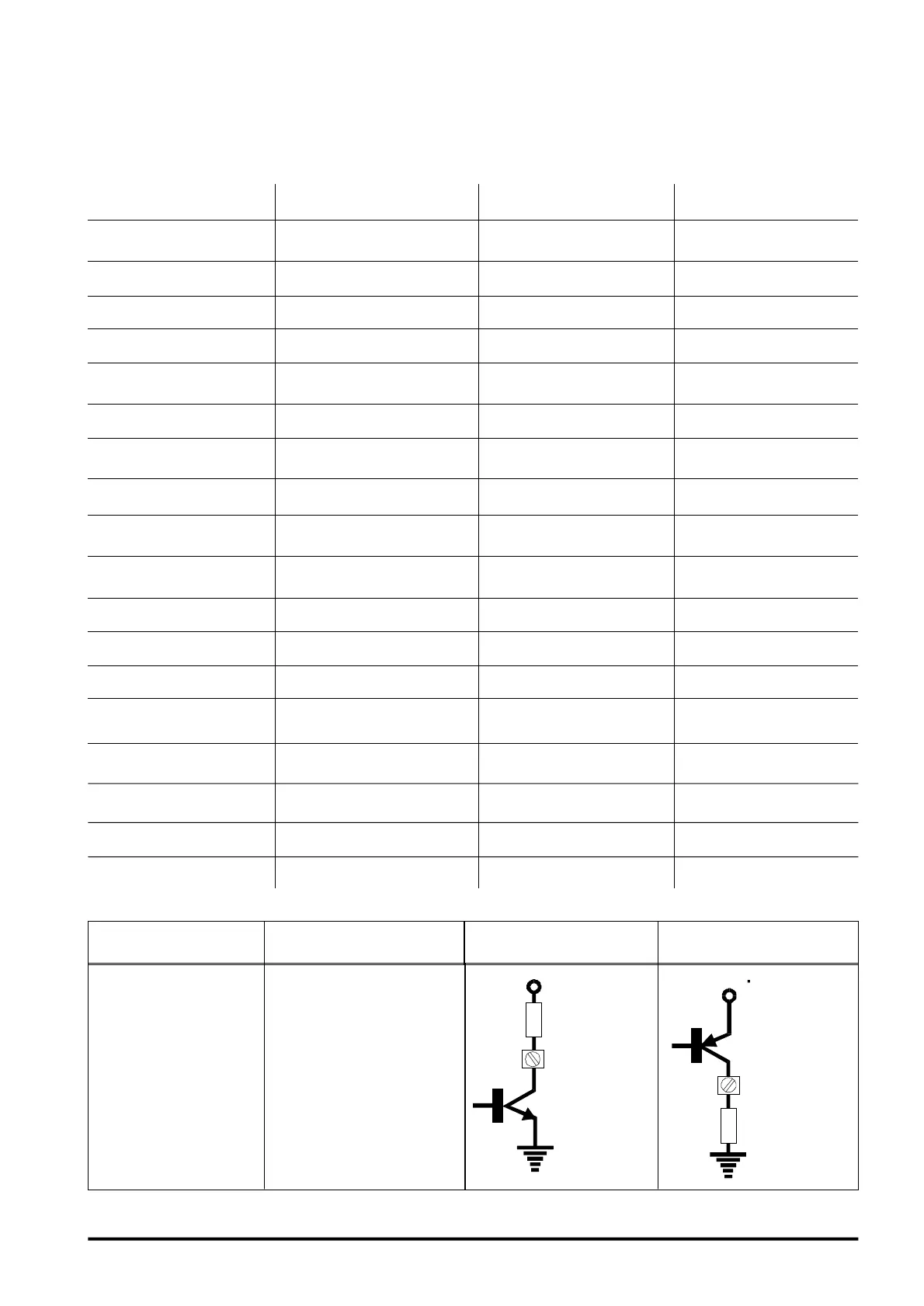

2.5.1 Output programming table
BURGLARY YES YES YES
TAMPER YES YES YES
PANIC NO YES YES
TECHNOLOGICAL NO YES YES
FIRE YES YES YES
CHIME/GONG NO YES YES
FAILURE NO YES YES
LPA NO YES YES
TC1 NO YES YES
TC2 NO YES YES
TC3 NO YES YES
OR TC NO YES YES
AND TC NO YES YES
RESET FIRE DET. NO YES YES
BUZZER NO YES NO
SYSTEM STATUS NO YES NO
NH/NL YES YES YES
NPN/PNP NO YES NO
U1 - CONTROL UNIT
U2, U3, U4, U5
CONTROL UNIT
U2, U3, U4, U5
ESP.
NPN OUTPUT PNP OUTPUT
+
+
negative
command
+
positive
command
TC1, TC2, TC3 OR TC1, TC2. TC3 AND
Voltage at the
output is +12V if
at least one of the
TC’s is present
(+12V)
Voltage at the output
is +12V only if all
TC’s are present
(+12V)
