Elmo GS-800 - Nomenclature

2

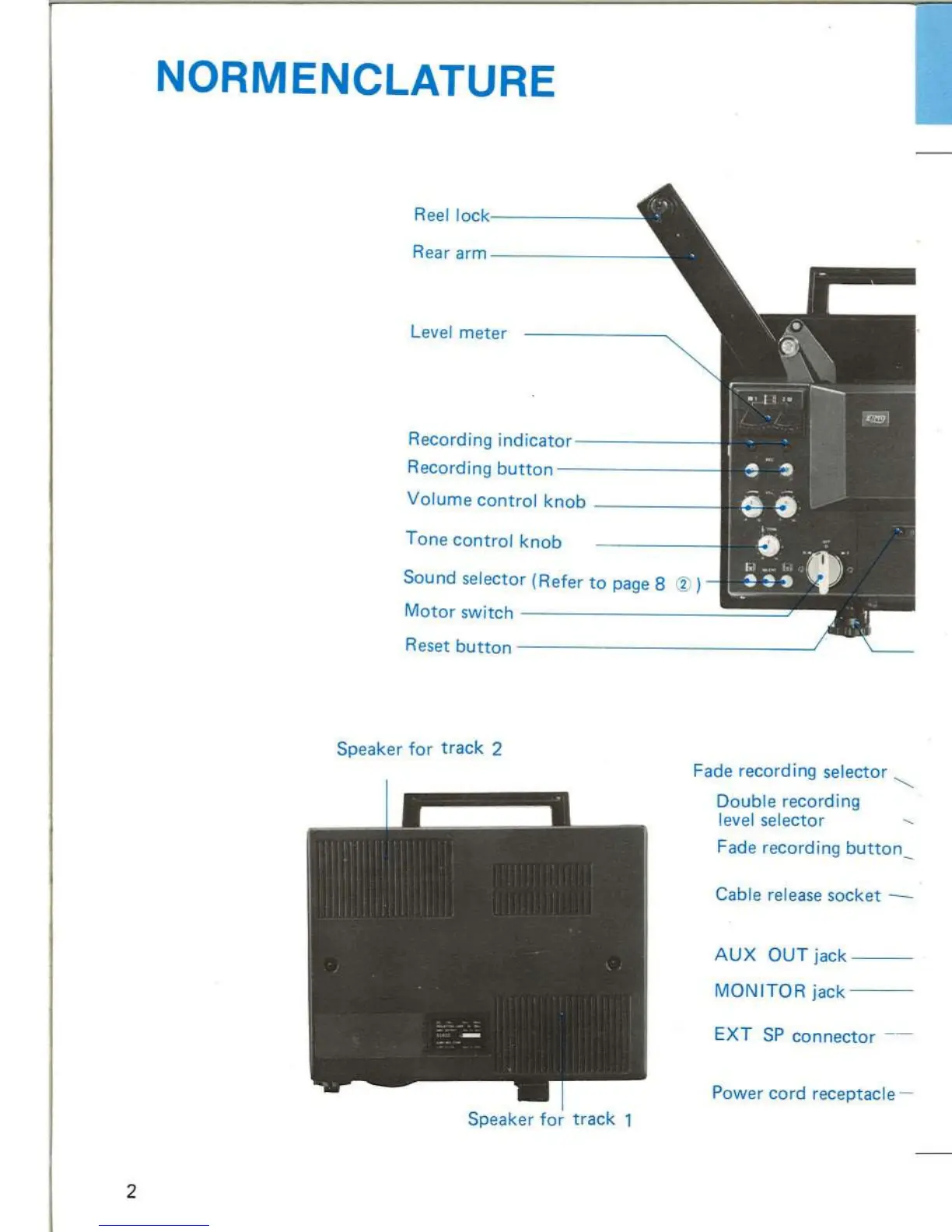

NORMENCLATURE
Reellock - - --- ---'
Rear arm ------ -~
Level meter
Recording indicator - ---- - -
Recording button - - -- - - --
Volume control knob _ _ __ _ _
Tone control knob
Sound selector (Refer to page 8
Motor switch
Reset button ------- ----- - ---./
Speaker for track 2
Speaker
for track 1
Fade recording selector "'-
Double recording
!evel selector
Fade recording
button _
Cable release socket -
AUX OUT jack-- -
MONITOR jack ---
EXT SP connector --
Power cord receptacle -
Monitoring:
Vo l ume control:
Tone control:
Amplifier:
Music power output:
Continuous power output:
Stereo-mono selecti on:
Recording indication:
Level meter:
Input terminals:
MIC (x2):
AUX IN (x2) :
Output terminals:
AUX OUT (x2):
MONITOR (x2) :
STEREO HEADPHONE:
EXT SP (x2):
Speaker:
Record ing/ playback head :
Photo electric element:
. Exciter lamp:
Microphone:
Dimensions & Weight:
Possible, both track 1 sound and track 2 sound.
Individual volume control of track 1 and track
2 is possible.
Treble control type
Stereo amplifiers using 7 ICs, 5 transistors and
16 diodes.
8W x 2
with extension speakers (8 ohms)
4W x 2
with bu ilt-in speakers (16 ohms)
6W x 2
with extension speakers (8 ohms)
3W x 2
with built-in speakers (16 ohms)
Possible
2 LEDs
Stereo type
I nput impedance . .. 1 OK ohms
Applicable Mic .
Impedance . . ..... 500 ohms - 10K ohms
Input level ... . . . . -30 ~ -60 dBs
I nput impedance ... 50K ohms
I nput level . . .. . .. 6 ~ -30 dBs
Output impedance . . 600 ohms
Applicable earphone impedance . .. . 8-16 ohms
Applicable impedance ...... .. 8 or 16 ohms
Applicable speaker impedance ....... 8 ohms
Two speakers are built-in impedance .. 16 ohms
2-track special alloy magnetic head
(Alternating bias system)
Solar
battery
DC lighting system
4V-0.75A Halogen lamp
Electret condenser type
Impedance: 600 ohms
330 x 260 x 190 mm (13.0 x 10.2 x 7.5 in.)
9.4 kgs. (21 Ibs.)
Specifications are subject to change without prior notice.
