Rewinding the film
14
After the projection, attach the end of the film to the front reel.
Advance
the motor switch counter-
clockwise to "R ... " .
Set the motor switch back to "OF F" after rewinding is completed.

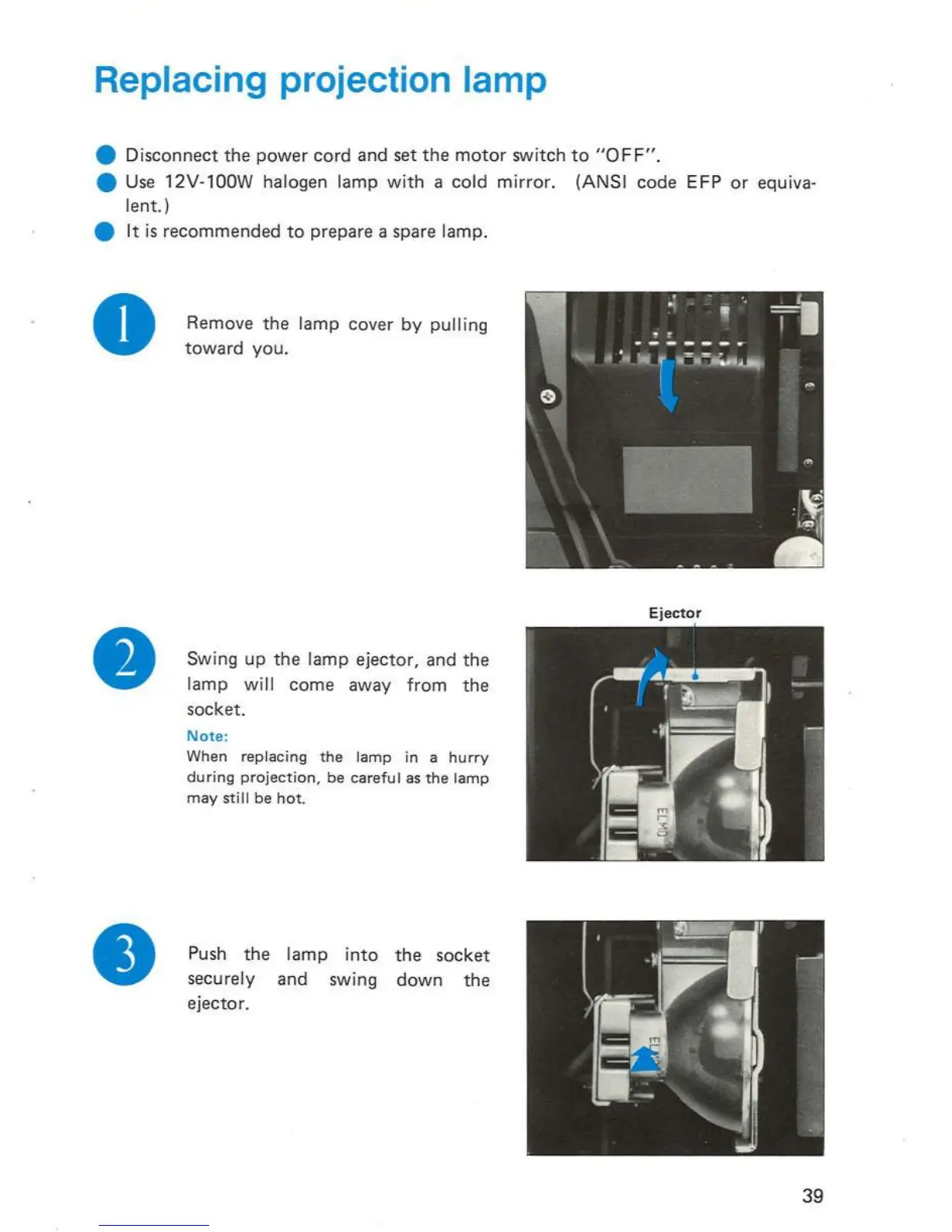

Replacing projection lamp
• Disconnect the power cord and set the motor switch to "OFF".
• Use 12V-100W halogen lamp with a cold mirror. (ANSI code EFP or equiva-
lent.)
• It is recommended to prepare a spare lamp.
•
•
•
Remove the l amp cover by pulli ng
toward you.
Swing up the lamp ejector, and the
lamp will come away from the
socket.
Note:
When replacing the lamp in a hurry
during projection, be careful as the lamp
may still be hot.
Push the lamp into the socket
securely and swing down the
ejector.
Ejector
39
