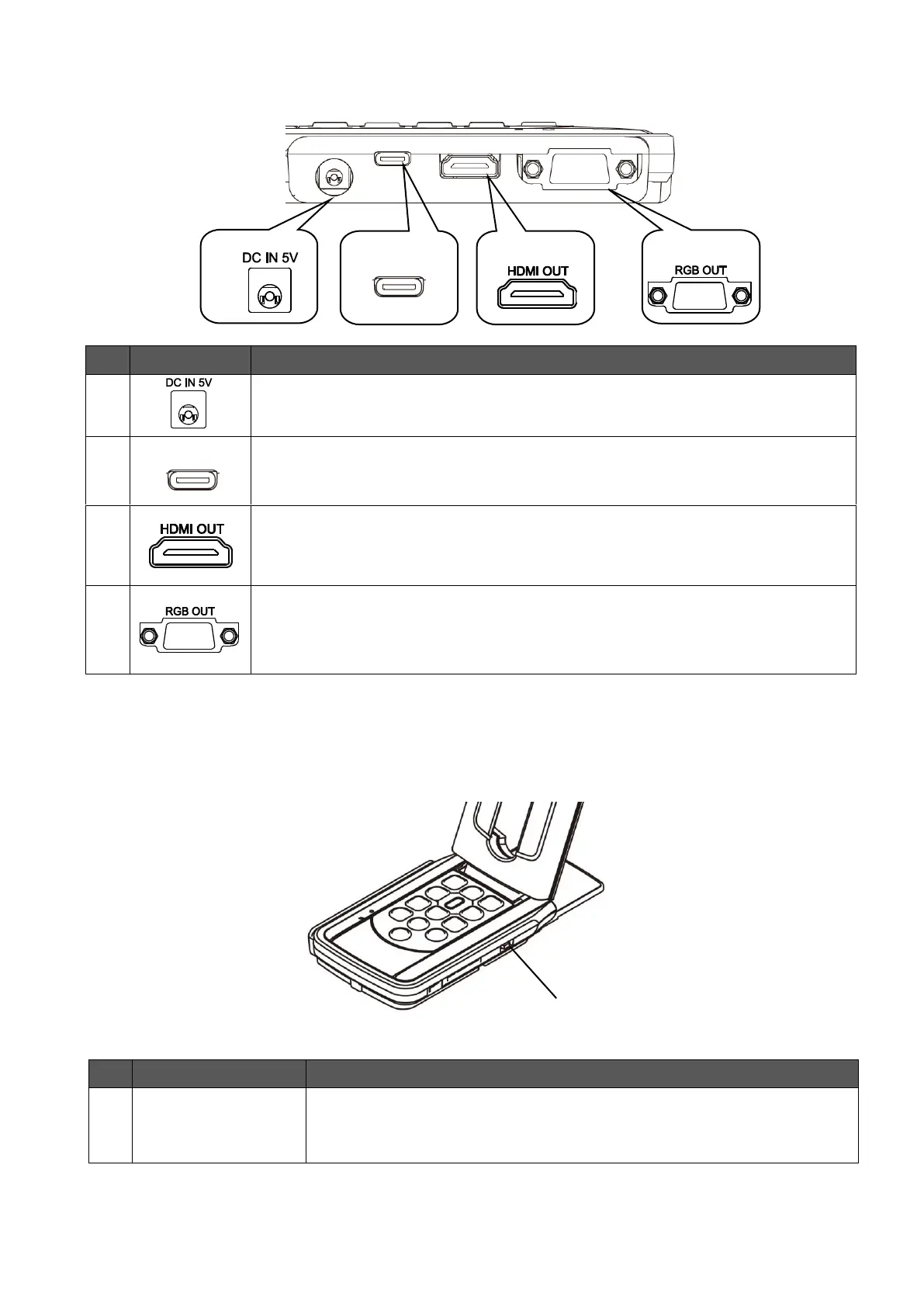

◆CABLE CONNECTION
Mark
Description
①
To connect the supplied DC power cord.
②
USB
To connect to a computer to save images.
Max. resolution: 4：3＝4160×3120 16：9＝3840×2160
③
To output digital images by connecting to a monitor via the HDMI cable.
(The HDMI cable is not included.)
Max. resolution: 3840x2160
④
To output RGB images by connecting to a monitor via the RGB cable.
(The RGB cable is not included.)
Max. resolution: 1920x1080
◆SETTING SWITCH
※The change made by the Setting switch will be reflected after the product is turned off and
on again.
Mark
Description
①
60 ← → 50
To correct flickers.
Select the same value as used for the power supply frequency.
(50Hz / 60Hz)
①
②
④
③
①
USB
