ELNEC s. r. o.
Problems related to the BeeProg
PC
interconnection, and their removing
If you have any problems with BeeProg PC
interconnection, see section Common notes please.
Manipulation with the programmed
device
After selection of desired device for your work, you can insert
into the open ZIF socket (the lever is up) and close socket (the
lever is down). The correct orientation of the programmed
device in ZIF socket is shown on the picture near ZIF socket
on the programmer's cover. The programmed device is
necessary to insert into the socket also to remove from the
socket when LED BUSY light off.
Note: Programmer's protection electronics protect the target
device and the programmer itself against either short or long-
term power failures and, partly, also against a PC failure.
However, it is not possible to grant the integrity of the target
device due to incorrect, user-selected programming
parameters. Target device may be not destroyed by forced
interruption of the control program (reset or switch-off PC), by
removing the physical connection to the programmer, but the
content of actually programmed cell may remains undefined.
Don't unplug the target device from the ZIF socket during work
with device (LED BUSY shine).
In-system serial programming by
BeeProg
For general definition, recommendation and direction about
ISP see section Common notes / ISP please.

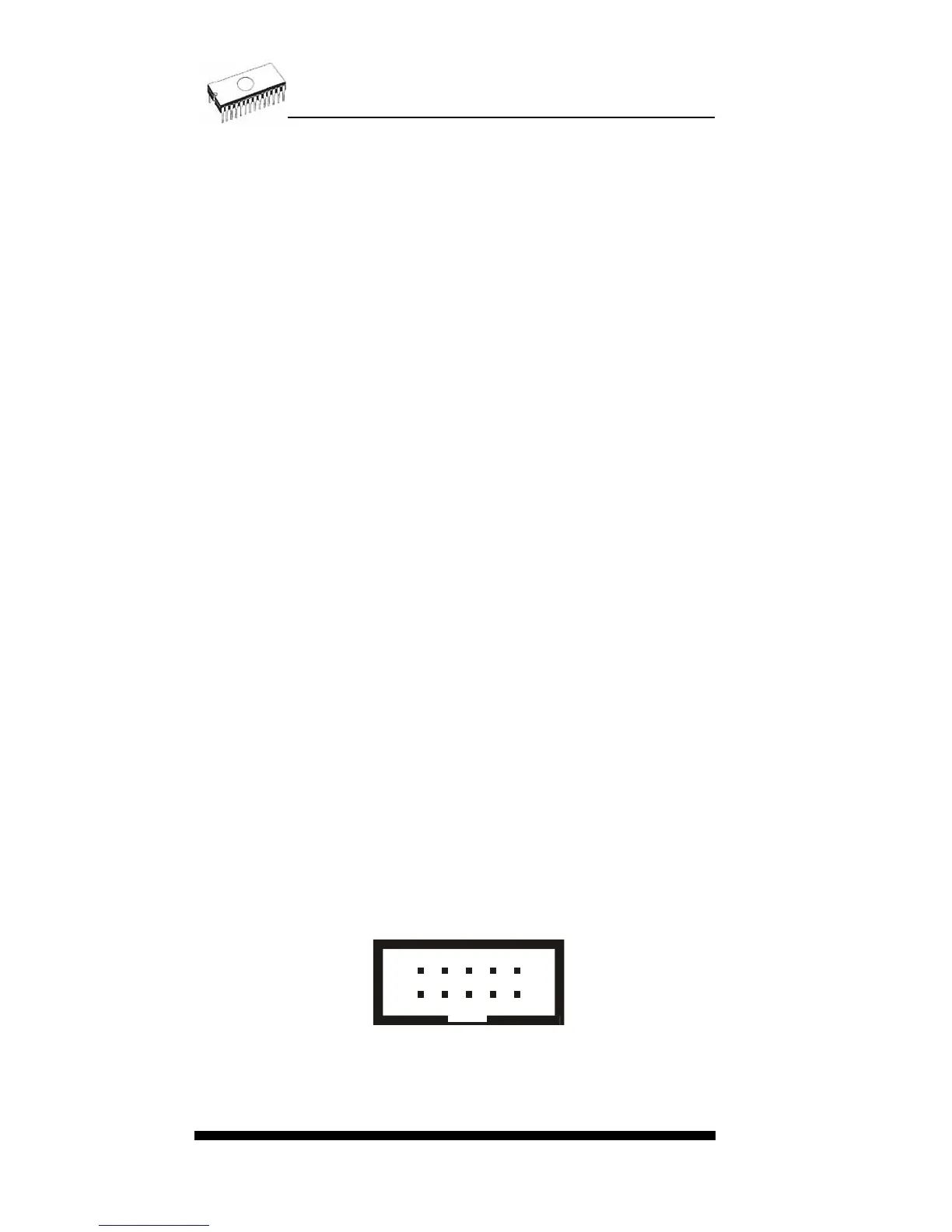

Description of BeeProg ISP connector
1
2
3
4
5
6
7
8
9
10
Front view at ISP connector of programmer.
32
