Port Powered Swipe Reader

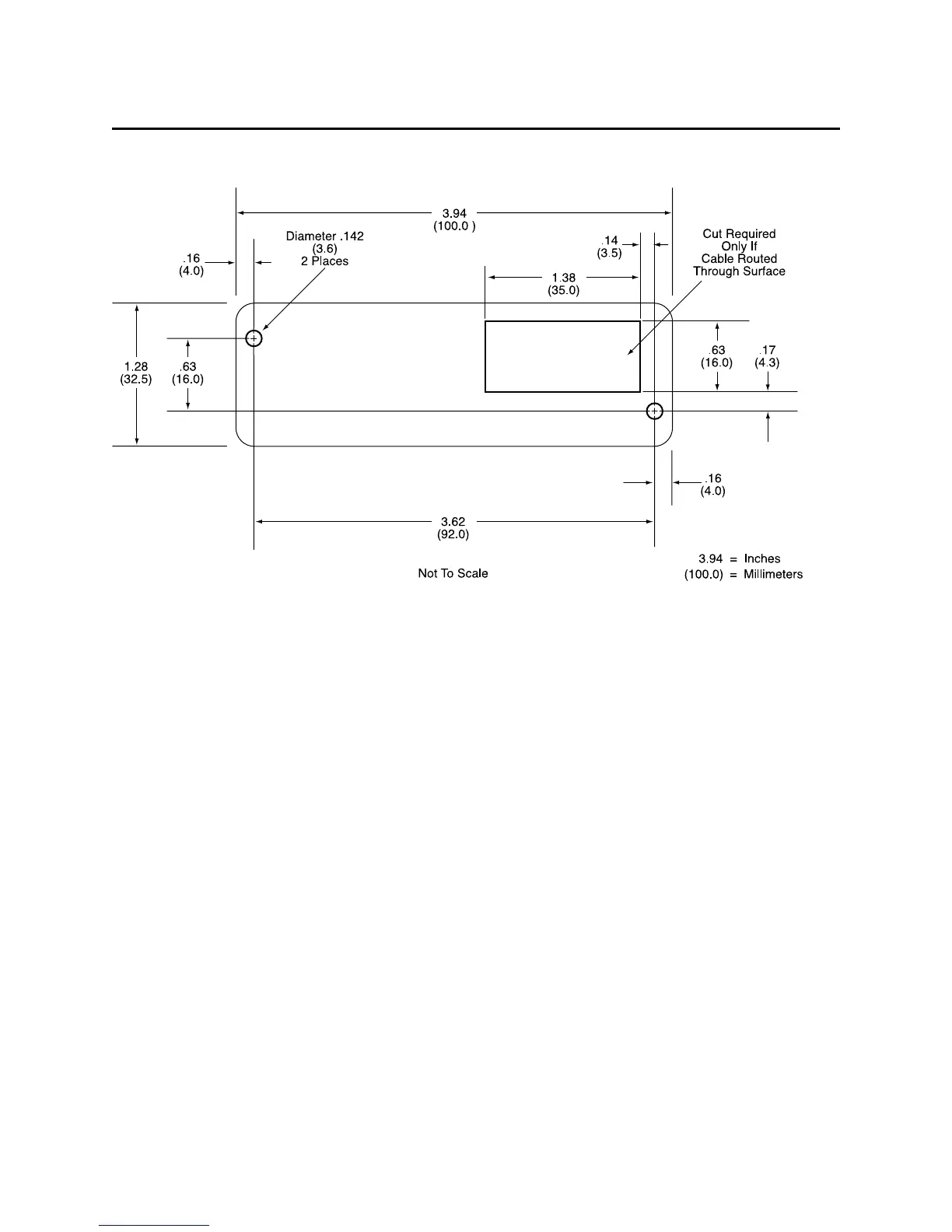

Figure 2-1. Mounting Hole Dimensions For Surface
3. Mount the Reader.
INSTALLATION AND TEST
To install the Swipe Reader, perform the following steps:
1. Connect the Swipe Reader cable connector into a 9-pin serial Com Port on the PC. If a
25-pin Adapter is required, plug the 9-pin connector on the Reader into the Adapter, and
the adapter into the PC.
2. Open a communications program such as the Mag-Tek Encoder/Reader Demonstration
Program, which may be obtained from the Internet at www.magtek.com. Navigate to the
Demo Programs and select Reader & Encoder Demos (Win 95/98/NT).
3. On the program, select the Com Port the Reader is connected to.
4. If the Com Port selected is correct, the green LED on the Reader will light; if the wrong
Com Port is selected, the LED will not light.
5. Select the baud rate of 9600.
