Section 2. Installation

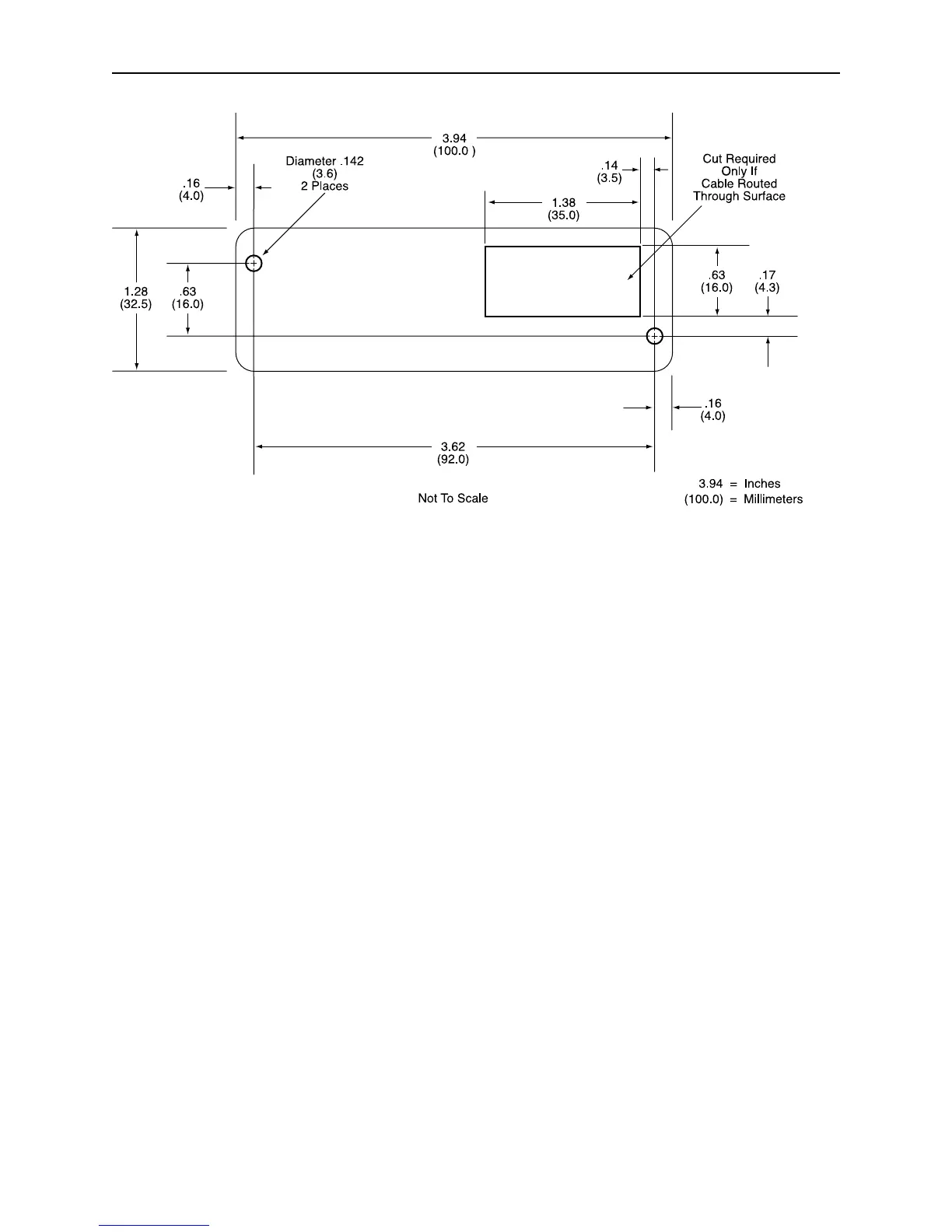

Figure 2-2. Mounting Hole Dimensions For Surface

2. Ensure the Reader is positioned on a flat, accessible surface with at least 4 inches

clearance on either end for room to swipe a card. Orient the Reader so the side with the

LED is facing the direction of intended use.

If fastening tape is to be used, clean the area that the Reader will be mounted on with

isopropyl alcohol. Remove the adhesive protective cover on the fastening tape, and

position the Reader and push down firmly.

3. Mount the Reader.
