Elo TouchSystems ET1229L Series User Manual

9
Parallel Interface Connector Configuration
All standard parallel pole displays will have a DB25 male connector. It
is connected to the printer port of the computer.
1. –Strobe
2. Data 0
3. Data 1
4. Data 2
5. Data 3
6. Data 4
7. Data 5
8. Data 6
9. Data 7
10. –Ack
11. Busy
12-17 NC
18-25 Ground
For pass-through models, the display cable comes with a dual
DB25M/F connector. The DB25M is to be connected to the computer
while the DB25F is for connection to the peripheral.
1. –Strobe
2. Data 0
3. Data 1
4. Data 2
5. Data 3
6. Data 4
7. Data 5
8. Data 6
9. Data 7
10. –Ack
11. Busy
12. Paper End
13. Select
14. -Auto Feed
15. -Error
16. -Initialize Printer
17. -Select In
18-25. Ground

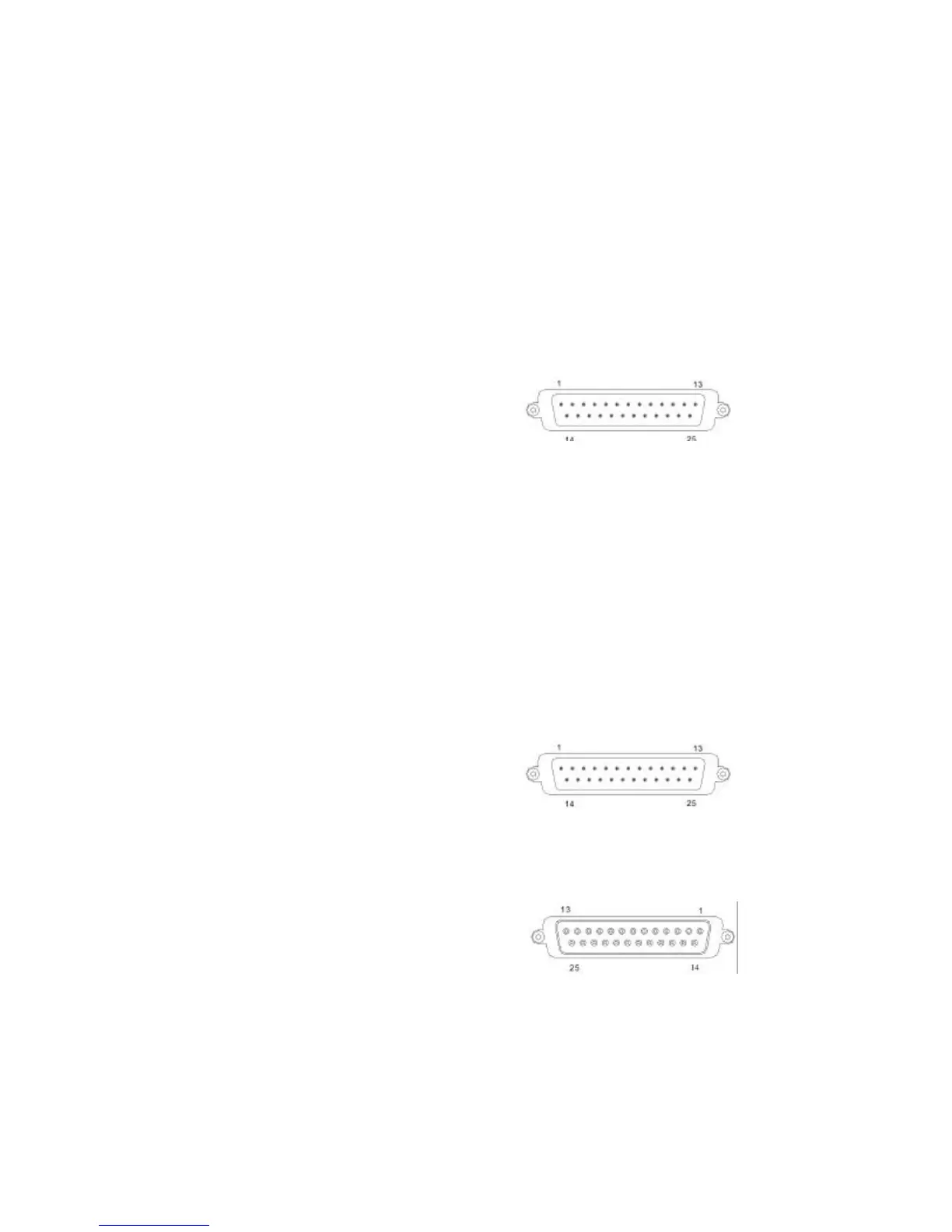

DB25M (to computer)
DB25M (to computer)
DB25F (to peripheral)
