10. HACCP
An annular memory can save up to 200 programs. All processing data is recorded continuously
and automatically.
Once a cooking program is terminated with “Start/Stop” or through automatic switch off at program
end, its protocol is stored. The cleaning program Autoclean is also stored.

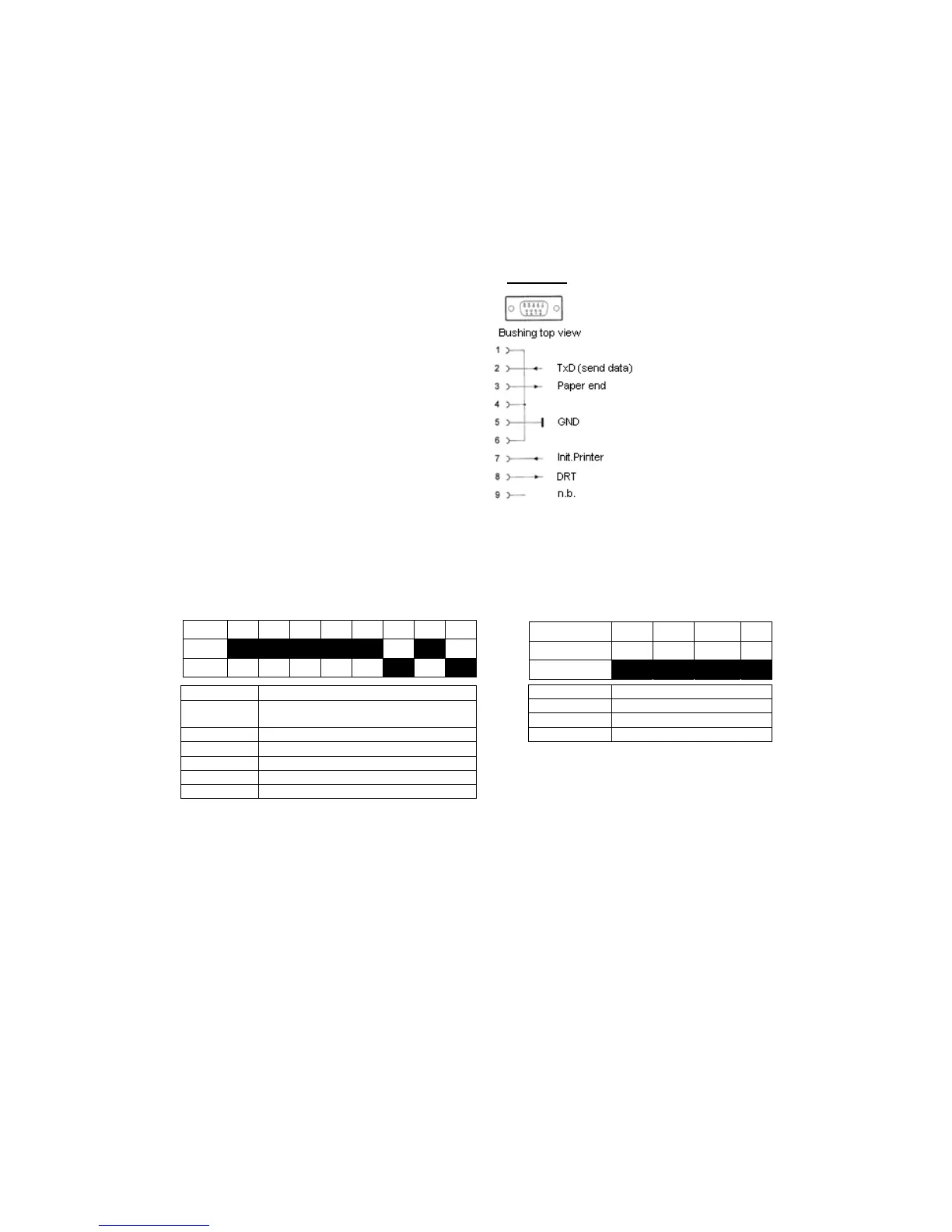

10.1 Serial Interface – Connecting cable
Protocols may be printed by means of connecting the steamer to a printer capable of printing
at least 40 characters per line. Printer adjustment : 9600, N, 8, 1.
The port for the cable connection is on the right side of the control panel.
Plug No.:
EXTERN 9pin. Min-D
bushing
Function:
RS 232 C Serial Interface
(9600, N, 8, 1)
9600 BAUD, 8 databit,
EVEN PARITY,
1 STOPBIT
Connect
printer
Controls
Setting of DIP Switch Thermal Printer NP 104
1. Parallel Interface (DIP Switch 1)
1 2 3 4 5 6 7 8
ON
OFF
Switch SOLL
1 CR/LF:
Carriage Return + Line feed
2 40 Columns
3 Normal Character
4 Normal Zero
5...7 German
8 Not defined
2. Serial Interface (DIP Switch 2)
1 2 3 4
ON
OFF
Switch SOLL
1 Parity Check
2 Even Parity
3, 4 9600 bps
