2.4 Design
SBC-1000
Session border controller SBC-1000 has a metal case available for 19” form-factor rack-mount 1U shelf
installation.

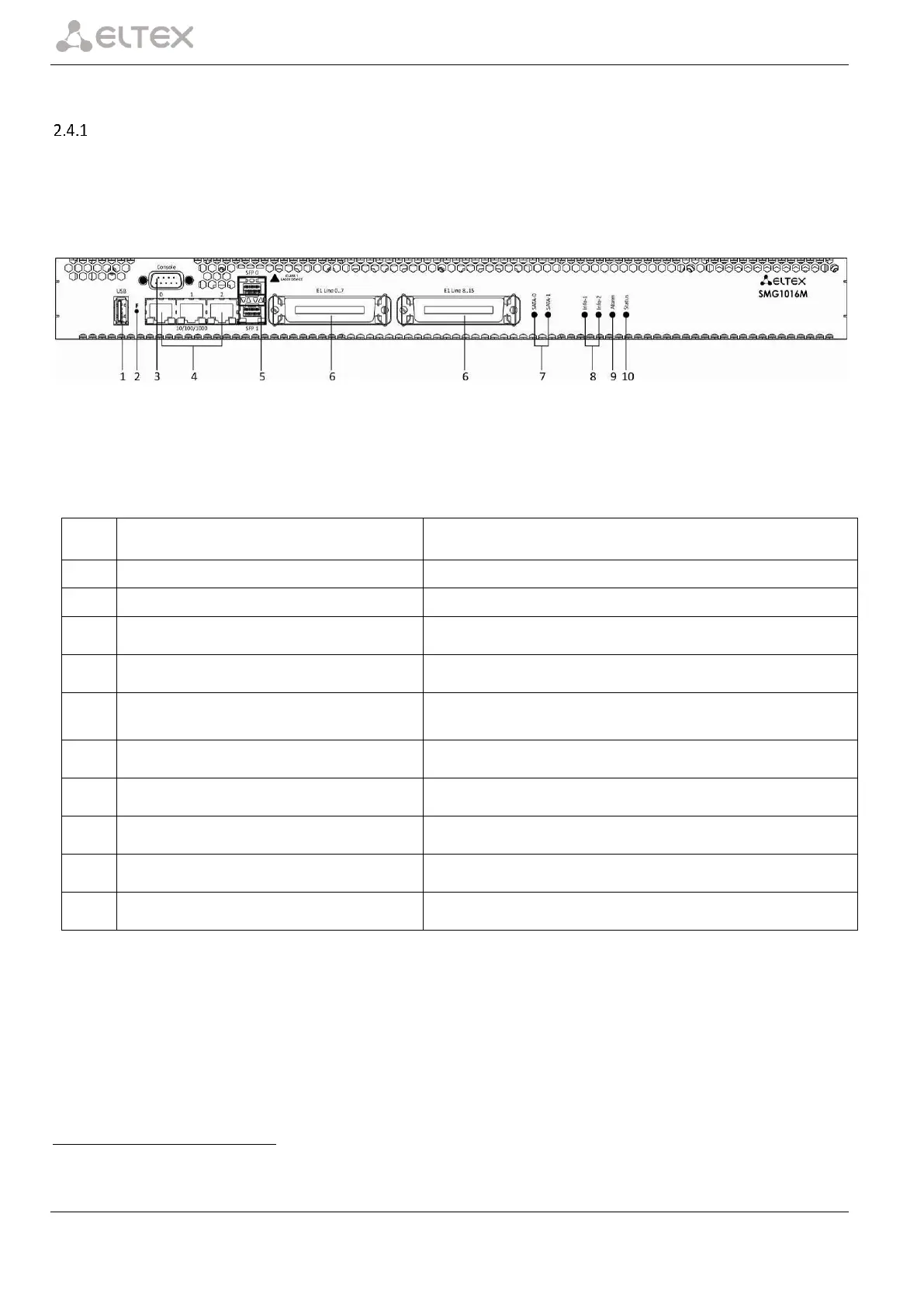

The front panel of the device is shown in Figure 4.
Figure 4 — The front panel of SBC-1000 (based on SMG-1016M)
Connectors, LEDs and controls located on the front panel of the device are listed in Table 2.
Table 2 — Description of connectors, LEDs, and controls located on the front panel
№
Front panel elements
Description
1
USB
USB port for external storage device connection
2
F
Function button
3
Console
RS-232 console port for local control of the device
4
10/100/1000 0..2
3 x RJ-45 ports of Ethernet 10/100/1000 Base-T interfaces
5
SFP 0, SFP 1
2 chassis for 1000Base-X Gigabit uplink interface optical SFP
modules used for IP network connection
6
E1 Line 0..7, E1 Line 8..15
2 x CENC-36M connectors for E1 streams
1
7
SATA-0, SATA-1
Indicators of SATA interfaces
2
8
Info1, Info2
SFP optical interface activity indicator
9
Alarm
Device alarm indicator
10
Status
Device operation indicator
1
Not used for configuration SBC-1000
2
Not used in the current version
