121 VoIP Subscriber Gateways

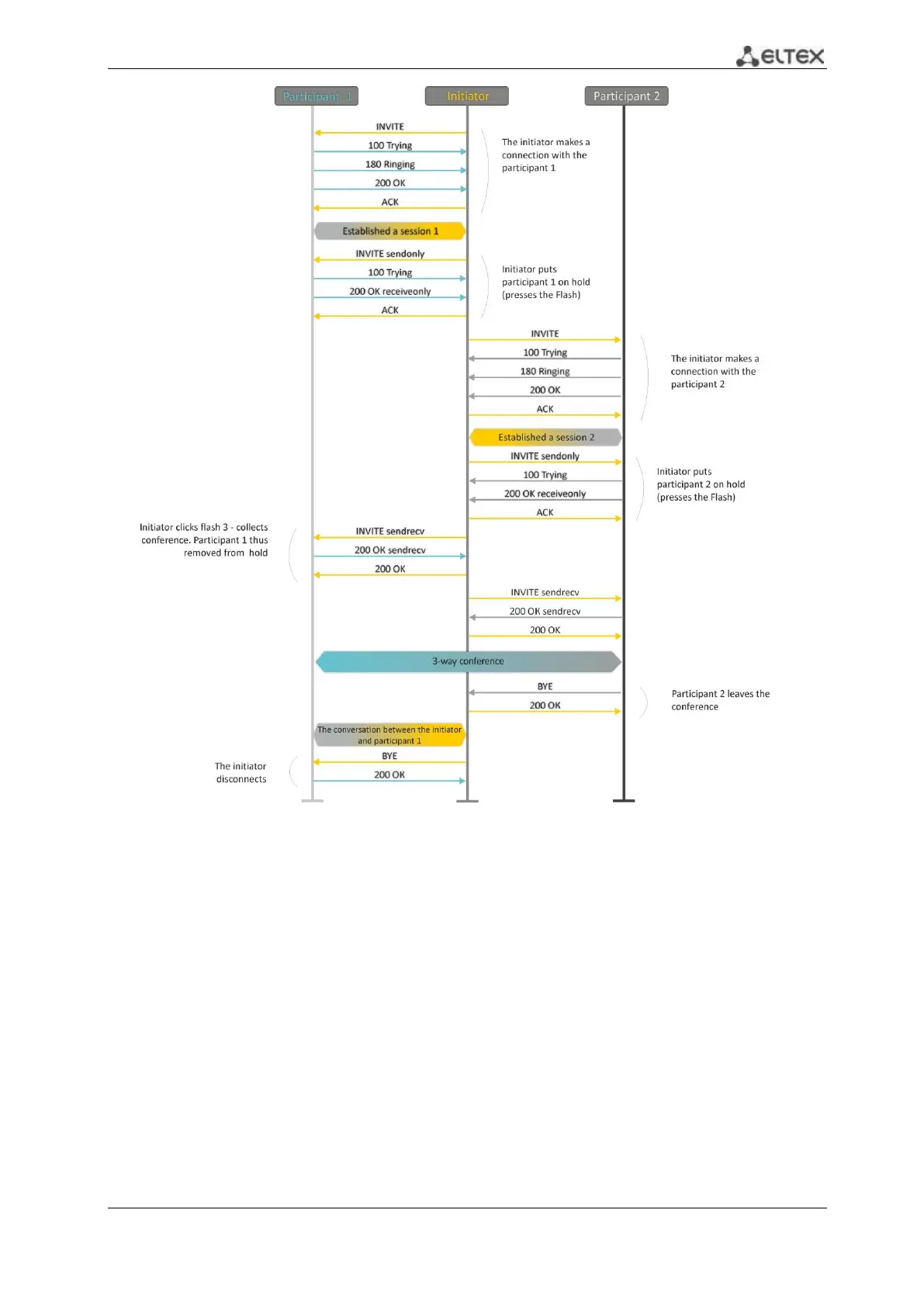

Fig. 8 - '3-way conference' service operation algorithm
4.3.2 Remote conference
Remote conference processing by algorithm, described in RFC4579. The feature of the algorithm
is that the initiator subscriber establishes a connection with the conference server (also called a focus)
by pressing flash + 3, and then requests for focus to establish a connection with two other conference
participants. The figure below shows detailed operation algorithm.
