75 VoIP Subscriber Gateways
- Reserved IP – this IP address and the next IP will be reserved for internal the device
requirements. 255.255.0 is subnet mask. It is not recommended to assign IP addresses
from the subnet on external network interface;
To store changes to the operative memory of the device, click the Save Changes button. To store
settings into the non-volatile memory, click Apply button.

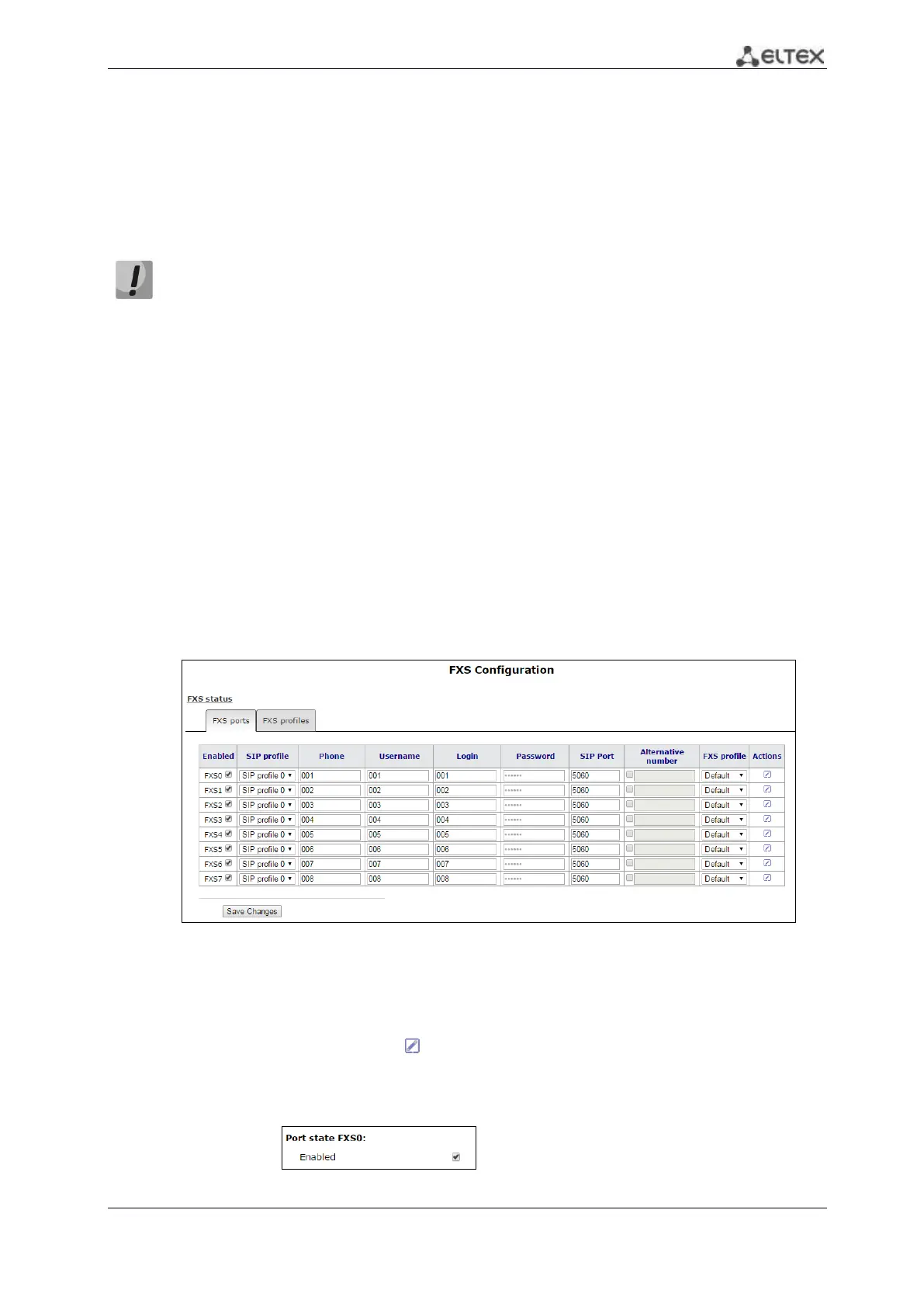

2.4.3 The ‘FXS’ submenu
Use the menu to configure subscriber line unit of the device.
For physical line parameters, you may create separated FXS profiles. It is handy tool for device
configuration when customer units have the same parameters. In this case, it is sufficient to configure
one FXS profile with required line parameters after that specify this profile to each FXS port.
FXS ports
For fast transition to ‘Status/Telephony’ submenu, click ‘FXS status’ (section 3.2.8) where
monitoring statistic of customer unit status, call groups and series selection groups are available.
- FXS profile – when ‘No profile’ value is set – line physical parameters are assigned for all
FXS port individually otherwise configuration of one from assigned FXS port is used for
customer unit physical parameters (section FXS profiles).
To edit customer unit settings, click button in ‘Action’ colon of common table.
Full list of customer port parameters is shown below.
Port status:
Changes in this submenu take effect immediately after clicking the 'Apply' button. Device
reboot is not required.
