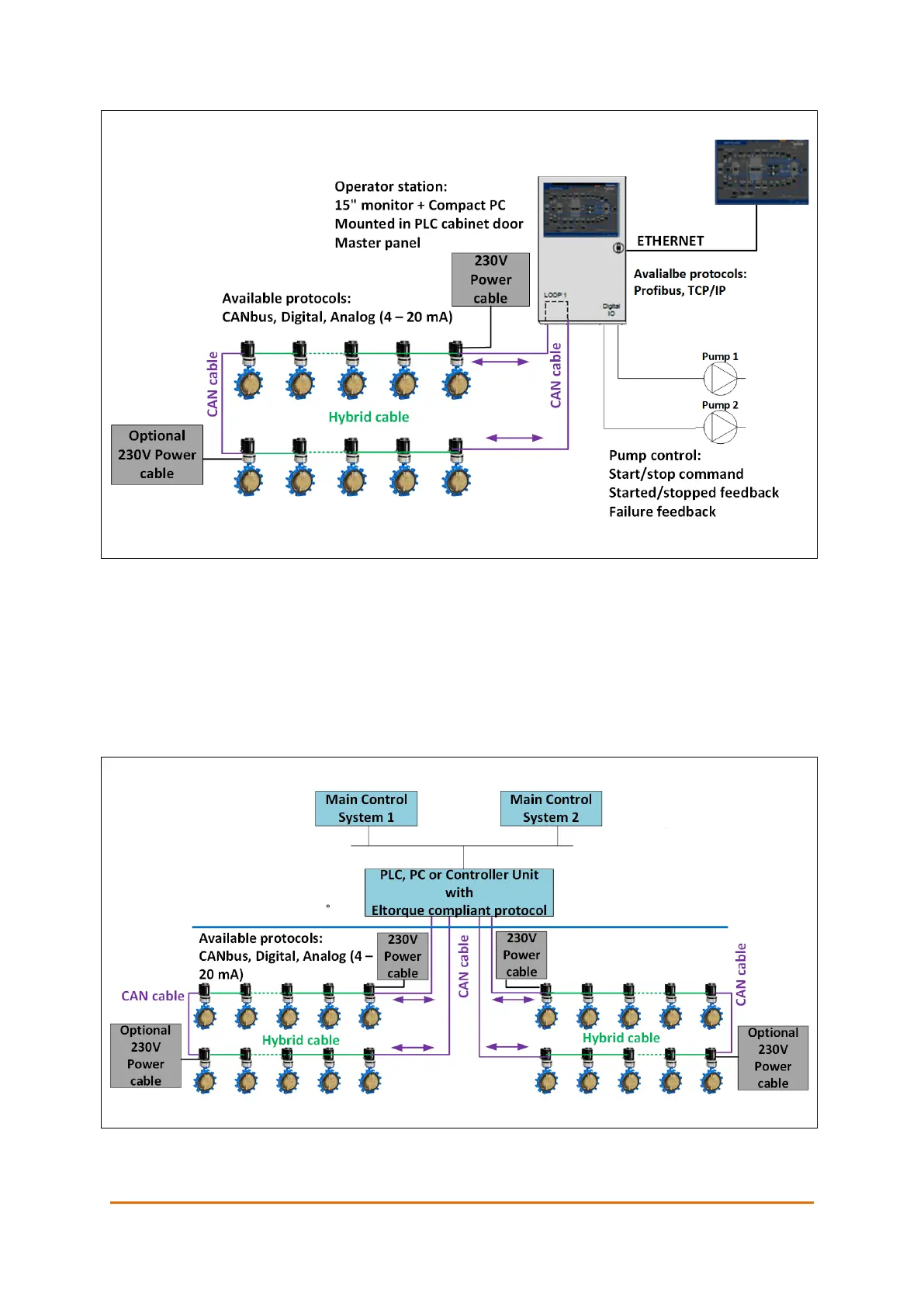

Figure 5: Eltorque Dual CAN Valve Control System (E-VCS) with valve and pump
control
Figure 6 below shows Eltorque actuators connected directly to a customer
specific PLC, PC, or other control unit. In addition, Eltorque actuators support
digital and analog connections. On system level, the PLC, PC or Controller
must be compliant with Eltorque communication protocol according to
Eltorque System Integrators Manual CANopen Interface.
Figure 6: Eltorque actuator dual CAN loop connected to Integrated Automation
Control System (IAS or ICS)

Eltorque QT250 Specifications

General

Brand	Eltorque
Model	QT250
Category	Controller
Language	English
