User Manual QT series generation 2.5, ID 2021, rev 3.2, January 14, 2022
With traditional cabling, four cable glands are required to accommodate
both power and signal cables. When ordering, please inform if you intend to
use the Hybrid Marine cable or a standard cable.
The actuator can freely be mounted both vertically standing or horizontally
lying to the side. An upside-down hanging position should be avoided.

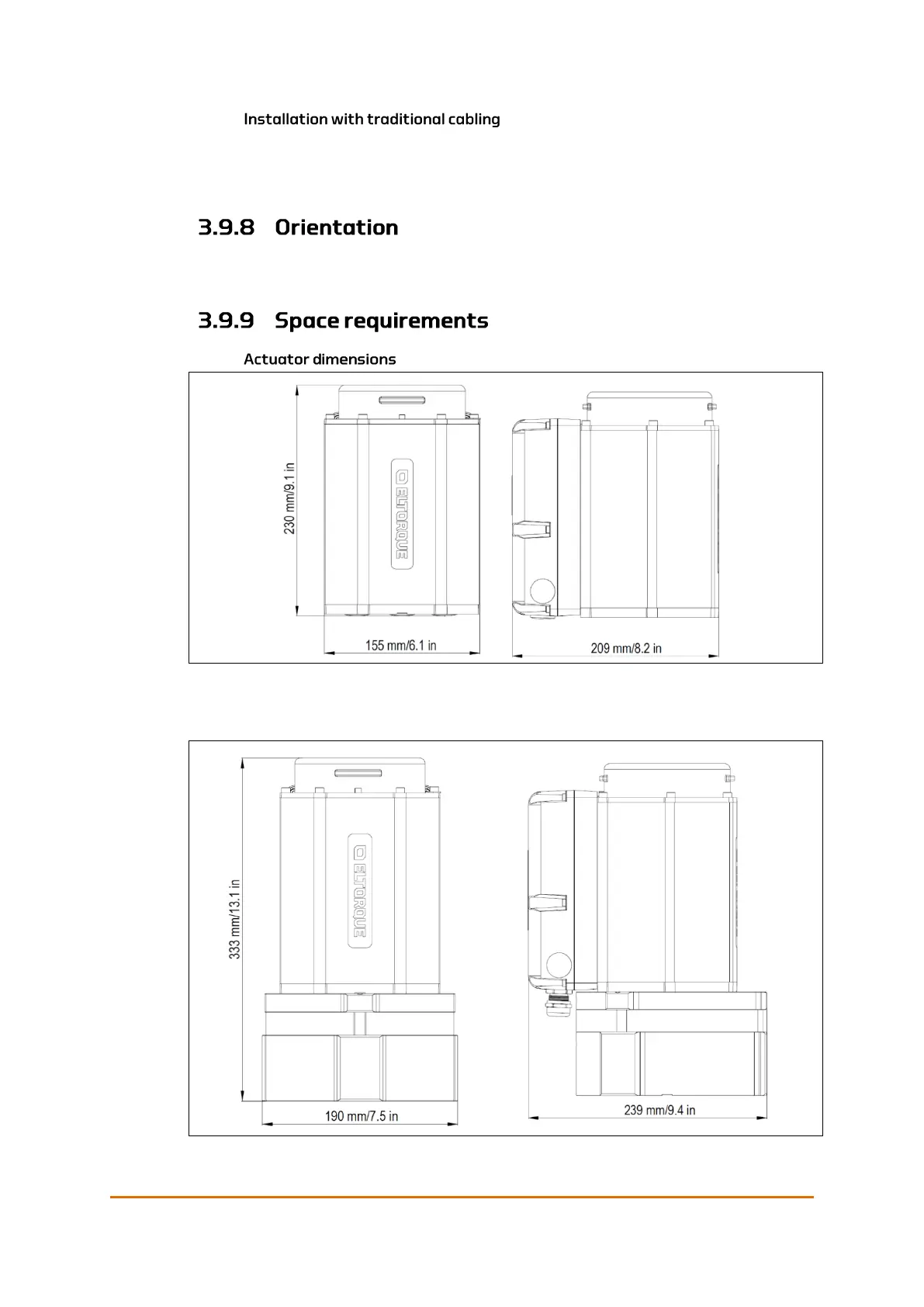

Figure 15: QT70, QT250 and QT400 dimensions
Figure 16: QT800 and QT1000 dimensions
