User Manual QT series generation 2.5, ID 2021, rev 3.2, January 14, 2022

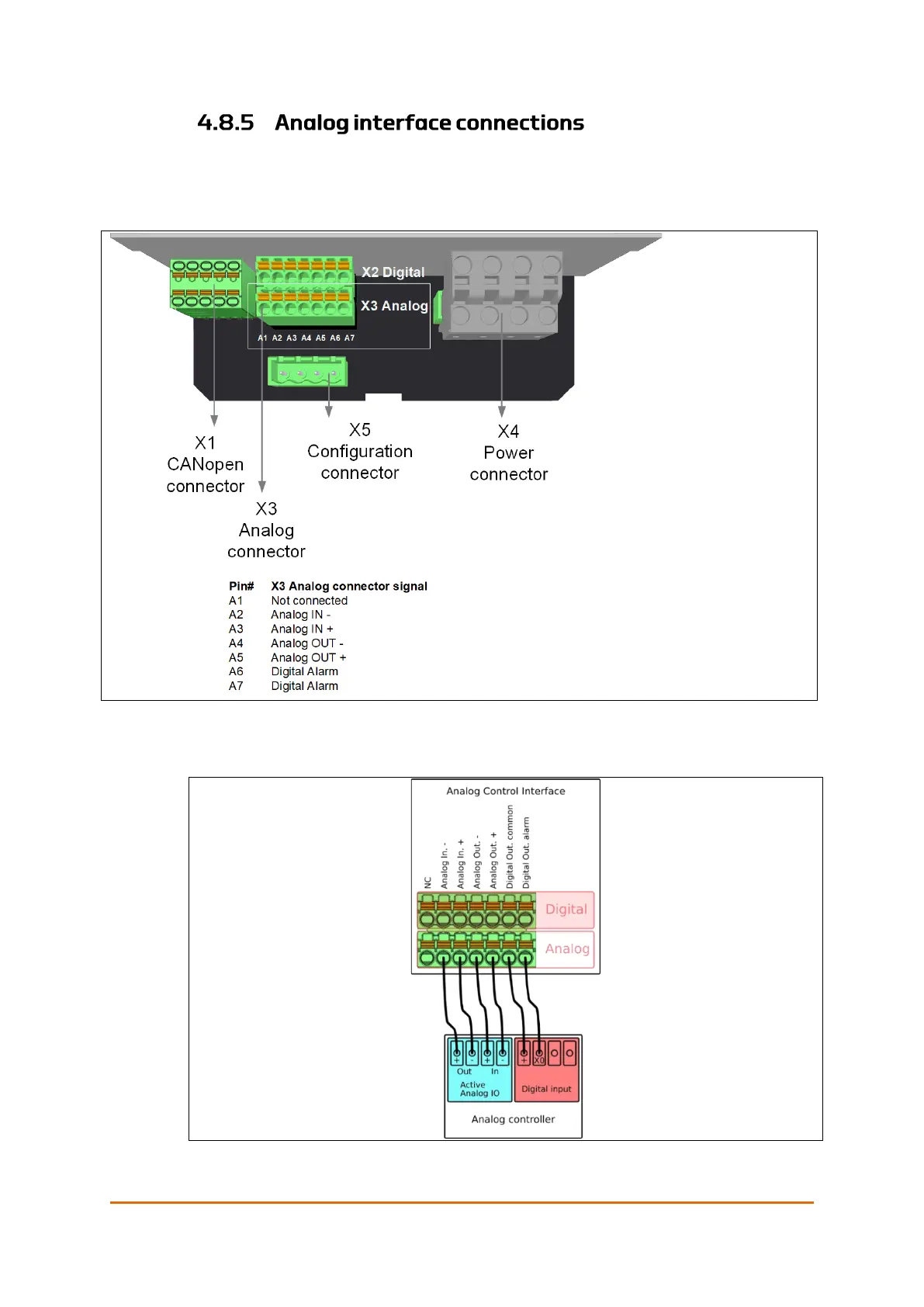

Figure 35 shows the location of the Analog Interface connector X3 and
signal pinout. Specifications for IOs are given in section 3.7.1
Note! This chapter does not apply to CANOnly.
Figure 35: Analog connection interface terminals
An example of using the analog interface is shown in Figure 36
Figure 36: Example of 4-20 mA analog control circuit.
