Eltorque QT250 - 4.3 Valve flange fastening holes

Mounting and Installation
Page 36 of 92
User Manual QT250 and QT800 gen 2.5, ID 2021 2.3 20. April 2021
Figure 20: Piping direction
The actuator provides fastening holes of different dimensions to facilitate
mounting on different types of valves.

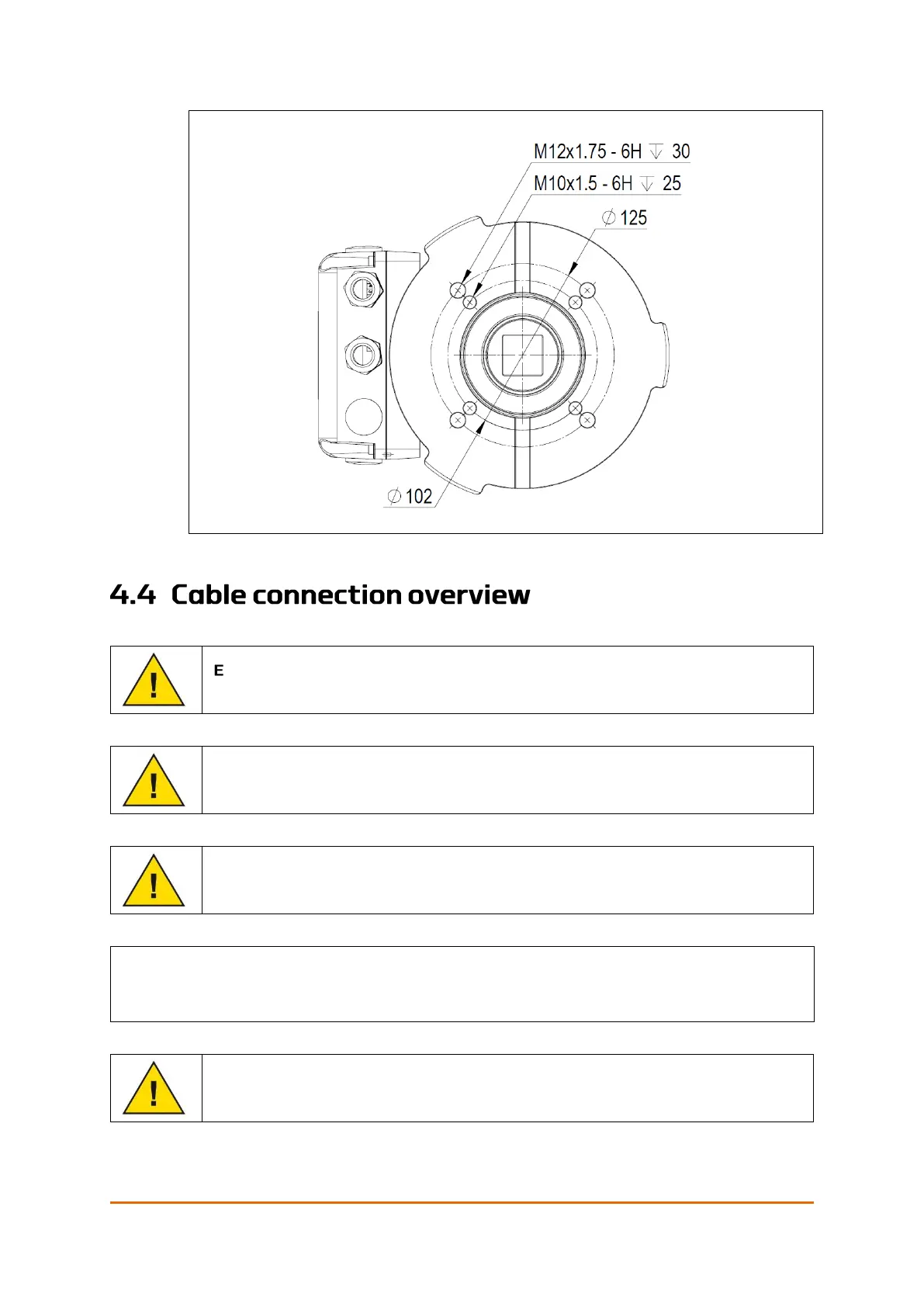

Figure 21: QT250 Valve flange fastening holes
