User Manual QT series generation 2.5, ID 2021, rev 3.2, January 14, 2022
During planning, please ensure enough space above and around the actuator
for installation, service, and manual operation.
There must be a minimum of 150 mm/5.9 in space above and to the sides of
the actuator to accommodate room for installation, operation, and service. In
front of the communication interface box there should be at least 200
mm/7.9 in.

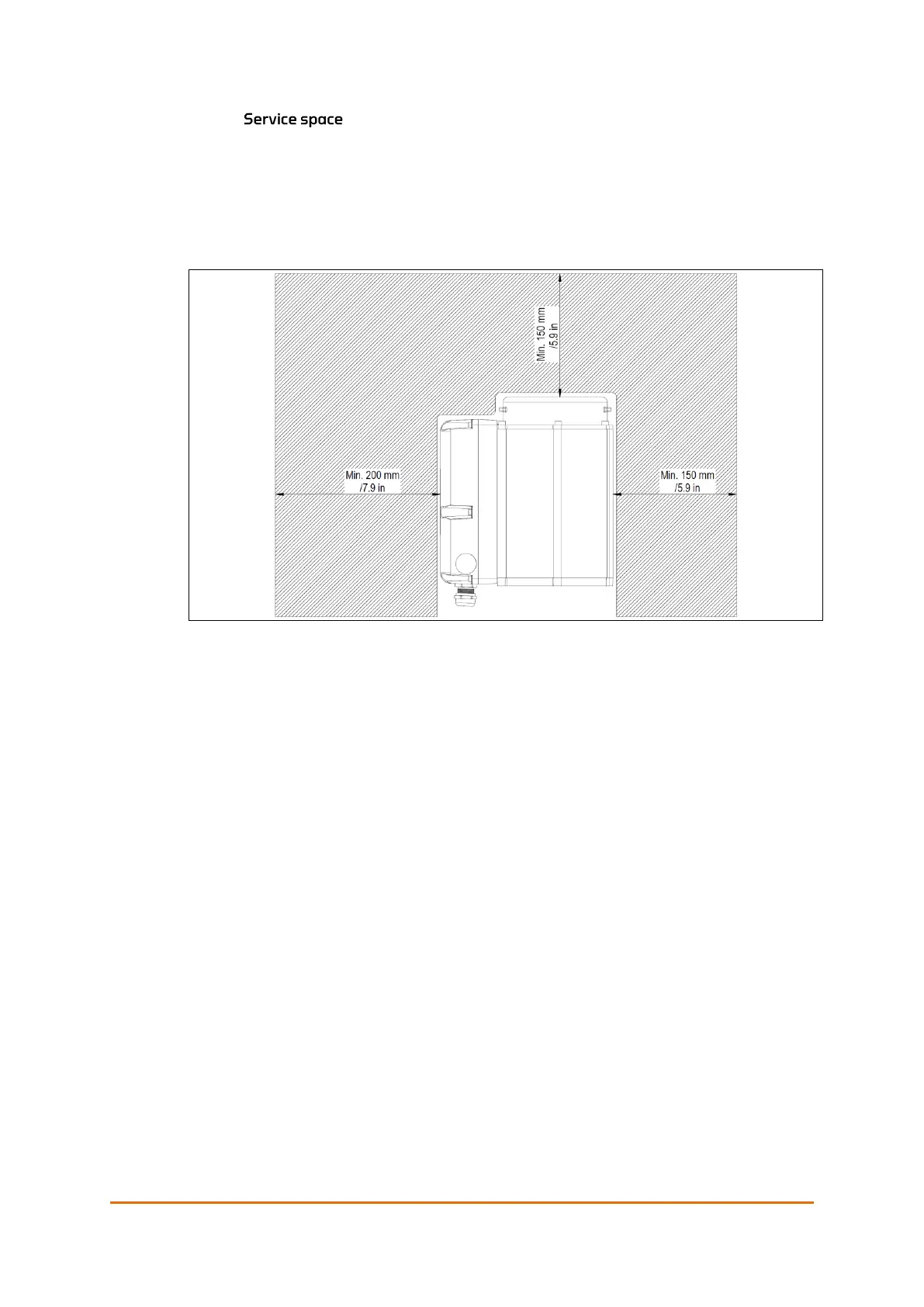

Figure 17: QT70, QT250 and QT400 Space requirements for installation, service and
manual operation - side view
