28 EMC VNX7500 Parts Location Guide
I/O modules
Four-port 1-Gb/s copper iSCSI I/O module
Figure 23 shows the part number label location on the four-port 1-Gb/s copper iSCSI I/O
module (labeled 1 GbE iSCSI/TOE on the latch handle).

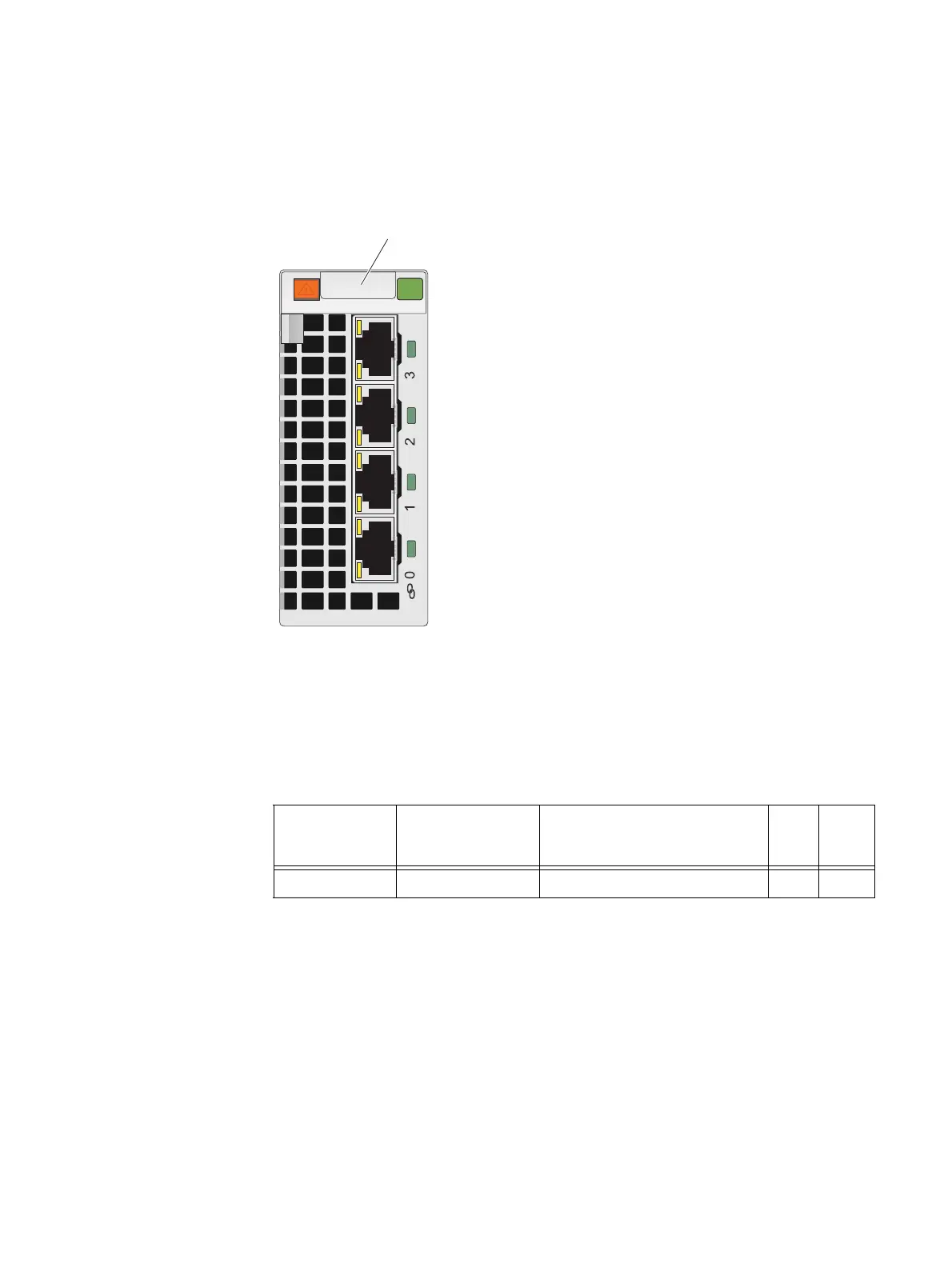

Figure 23 Example of the four-port 1-Gb/s iSCSI I/O module
Table 18 shows the part number label location, part number, description, and whether it
is a FRU or CRU.
Part Number (P/N) Label
CNS-001699
Table 18 Four-port 1-Gb/s iSCSI I/O module part number
Part number label
location
(Figure 23) Part number Description FRU CRU
303-141-100A Four-port 1-Gb/s iSCSI ports
