I/O modules
EMC VNX7500 Parts Location Guide 31
Two-port 10-Gb/s Fibre Channel over Ethernet (FCoE) I/O Module
Figure 26 shows the part number label location on the two-port 10-Gb/s Fibre Channel
over Ethernet (FCoE) I/O module (labeled 10 GbE/FCoE on the latch handle).

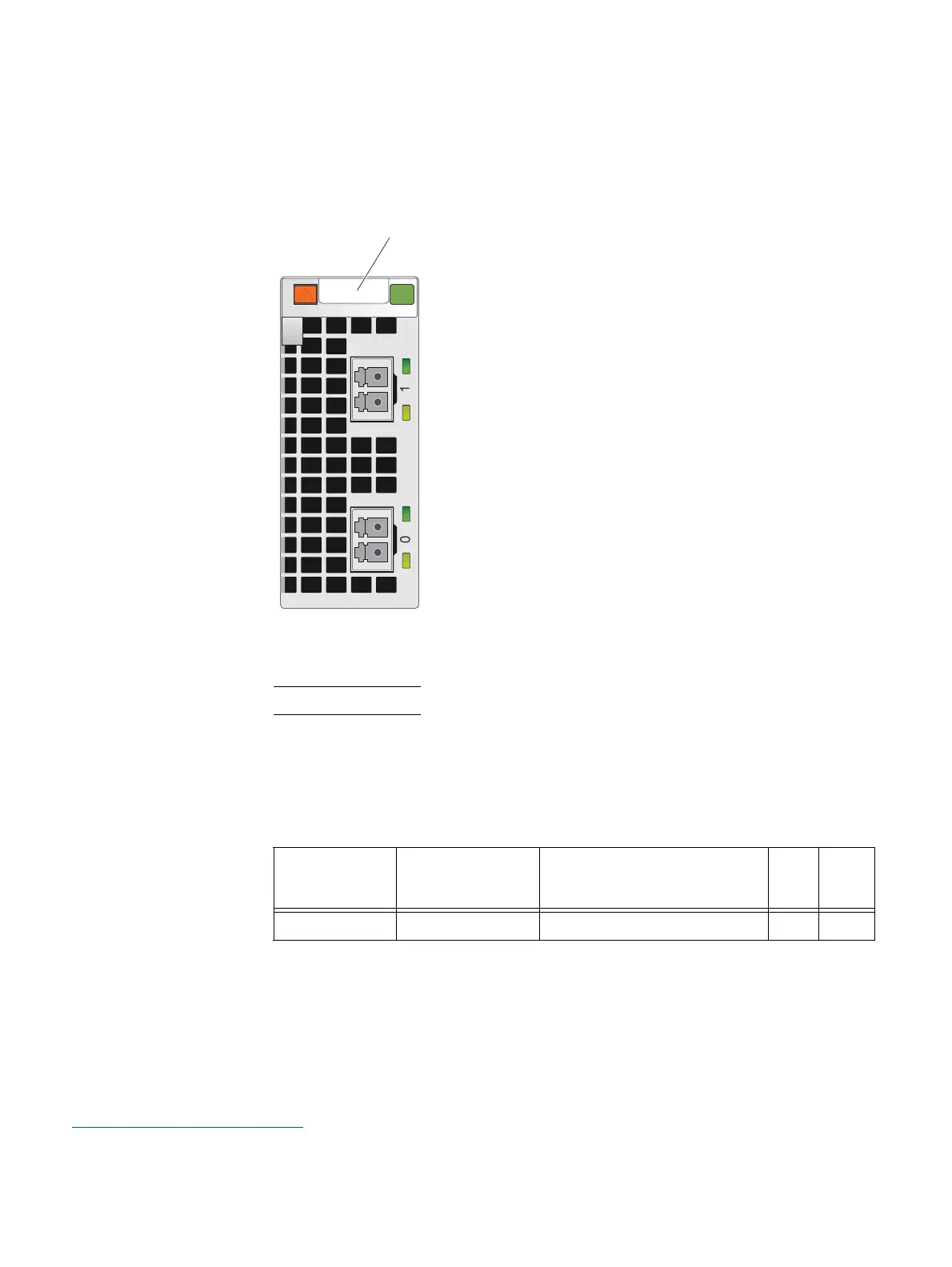

Figure 26 Example of the two-port 10-Gb/s FCoE I/O module with SFPs
1
Note: The 10-Gb/s FCoE I/O module requires VNX OE for File version 7.0.35.3 or later.
Table 21 shows the part number label location, part number, description, and whether it
is a FRU or CRU.
1. The FCoE I/O module can also use twinaxial (Twinax) cables. Twinax is a type of cable similar to coax, but with two inner conductors
instead of one. These cables will be supplied in lieu of SFPs when so ordered.
Part Number (P/N) Label
CNS-001700
Table 21 Two-port 10-Gb/s FCoE I/O Module part numbers
Part number label
location
(Figure 26) Part number Description FRU CRU
303-142-100A Two-port 10-Gb/s FCoE 
