34 EMC VNX7500 Parts Location Guide
I/O modules
Two-port 10-Gb/s Base-T iSCSI/IP I/O module

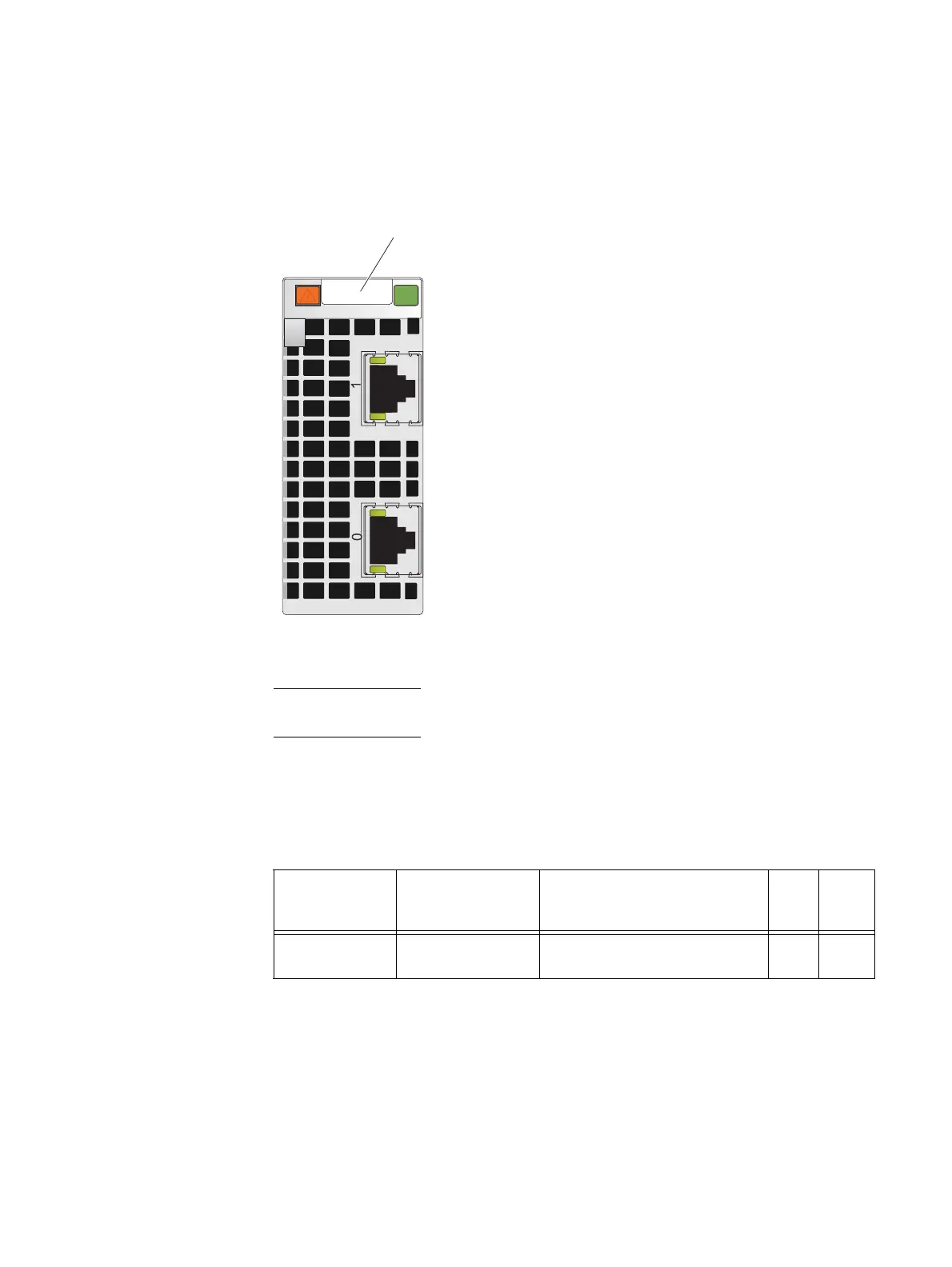

Figure 22 shows the part number label location on the two-port 10-Gb/s Base-T iSCSI/IP
I/O module (labeled 10 GbE BASE-T on the latch handle).
Figure 29 Example of the two-port 10-Gb/s Base-T iSCSI/IP I/O module
Note: The two-port 10-Gb/s RJ-45 Base-T iSCSI/IP I/O module requires VNX OE for File 7.1
or later.
Table 17 shows the part number label location, part number, description, and whether it
is a FRU or CRU.
Part Number (P/N) Label
VNXe-000753
Table 24 Two-port 10-Gb/s Base-T iSCSI/IP I/O module part number
Part number label
location
(Figure 22) Part number Description FRU CRU
303-164-104D-01 Two-port 10-Gb/s Base-T iSCSI/IP
I/O module
