Disk-array enclosure (DAE)
EMC VNX7500 Parts Location Guide 45
2U, 25 (2.5-inch) disk drive DAE
Figure 37 shows the front view of the 2U, 25 (2.5-inch) disk drive DAE.
Note: You can visually distinguish disk module kinds by their type, capacity, and speed
labels, and by the design of the latch and handle on each disk module (Figure 37).

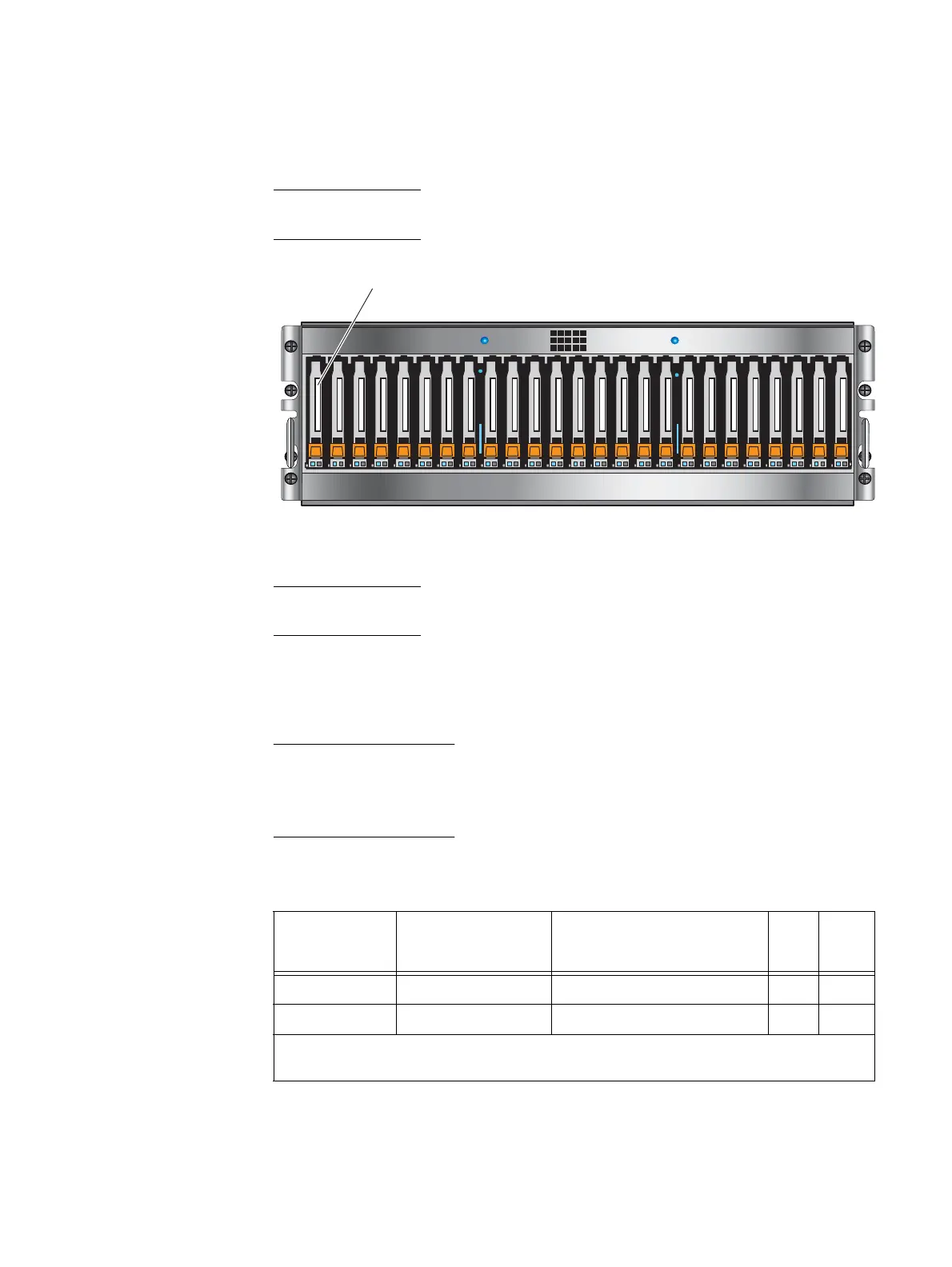

Figure 37 Example of the 2U, 25 (2.5-inch) disk drive DAE (front view)
Note: Figure 37 is for illustrative purposes only. The front of the disk modules may be a
little different than the ones in your particular cabinet.
Table 30 is an example of the parts available for the 2U, 25 (2.5-inch) DAE and lists the
part number label location, part number, description, and whether it is a FRU or CRU.
Due to the extensive variety of disk module types, Table 30 lists only a couple disk types.
EMC recommends that you refer to the latest
EMC VNX5500, VNX5700, and VNX7500
Series Storage Systems Disk and OE Matrix
Guide
to ensure that you have the correct part
for your configuration.
24
0
12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24
0
Part Number Label
VNX-000603
Table 30 2U, 25 (2.5-inch) DAE disk module part numbers
Part number label
location
(Figure 37) Part number Description (see note) FRU CRU
005048946 300 GB, 6 Gb/s SAS, 10k rpm
005048946 600 GB, 6 Gb/s SAS, 10k rpm
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).
