Pin orientation depends on the sensor angle position.
Table5: Pilot valve data
Operating voltage 24VDC (bipolar)
Tolerance +/-10%
Power consumption 0.8W
Switch indication LED, yellow
Degree of protection IP65
Table6: Pin assignment of pilot valve
Pin Assignment
1
4
3
1 0V/24VDC
3 na
4 24V/0VDC
7.4 Throttle module: adjusting the throttle
NOTICE
Danger of overturning the adjustment screw!
Damage to the throttle module!
u Never turn the adjustment screw firmly all the way to the stop (maximum
tightening torque: 0.5Nm).
Throttle modules come in uni-directional and bi-directional versions. You can
identify the version by the symbol (23) on the front.
Operating lines2 and 4 can be reduced independent of each other.
To set the flow in the operating line you must set the adjustment screws for con-
nections2 or 4.
0 1 2 3 4 5 6 7
300
250
200
150
100
50
0
350
400
450
500
0 1 2 3 4 5 6 7
300
250
200
150
100
50
0
350
400
450
Uni-directional flow
on connection 2 and 4 (±20%)
(R422003267)
Bi-directional flow on
connection 2 and 4 (±20%)
(R422003578)
Number of rotations Number of rotations
Flow [std l/min]
Flow [std l/min]
Unregulated
Regulated
Regulated

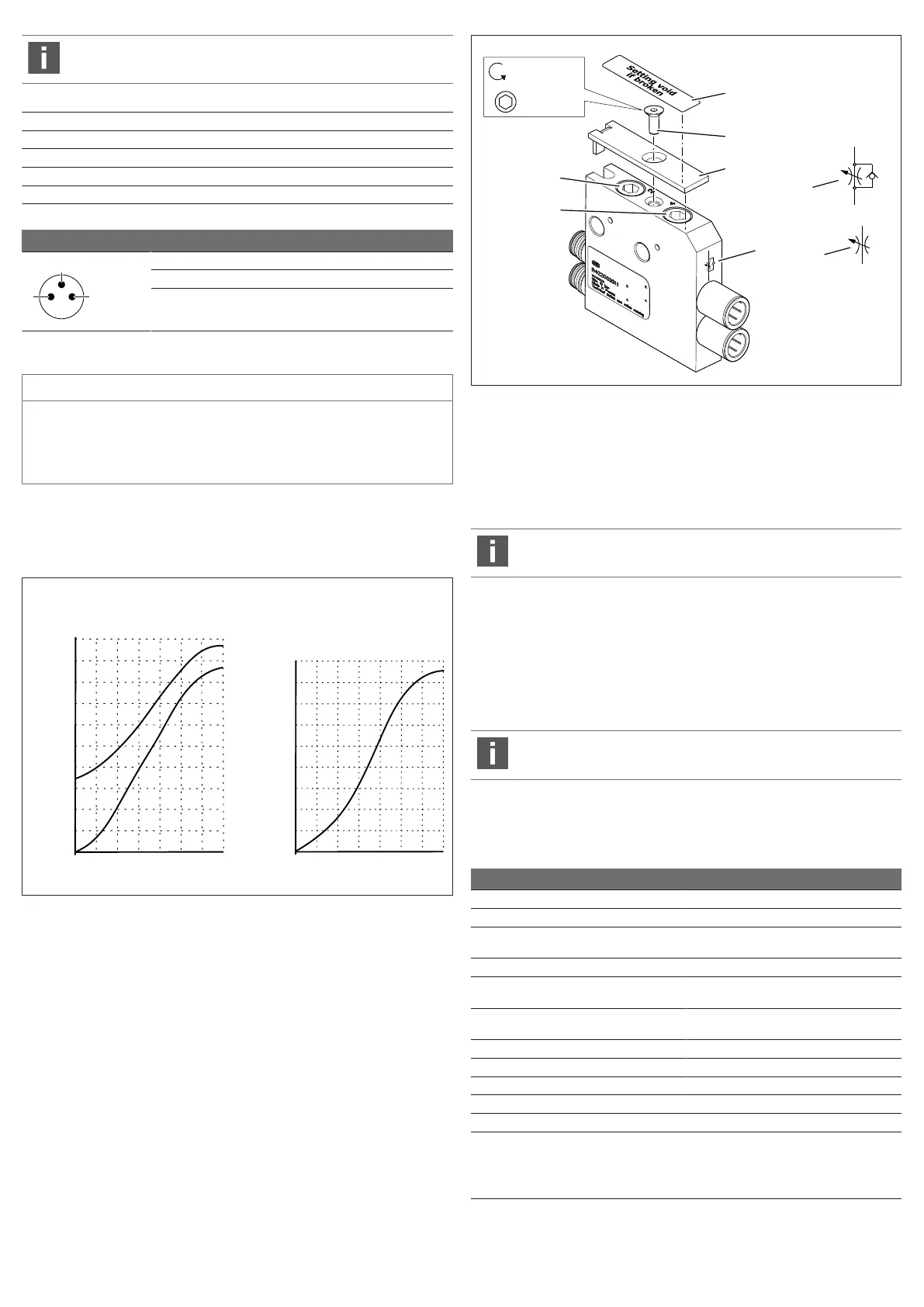

Fig.17: Flow diagram for throttle module
1. Use a 5mm Allen key to turn the adjustment screw (21, 22) counterclockwise
to increase the flow.
The setting in the end stop corresponds to the maximum possible flow.
Turn the adjustment screw clockwise to reduce the flow.-
2. If necessary, secure the adjustment screw with a cover plate (24) and/or a
cover sticker (26).
SW 2,5
= 1,2 Nm ±0,2
25
26
24
23
27
28
22
21
Fig.18: Throttle module
21 Adjustment screw for connection 2 22 Adjustment screw for connection 4
23 Symbol for the type of throttle 24 Cover plate to prevent changes to the
adjustment screw
25 Screw to fasten the cover plate 26 Cover sticker
27 Symbol for uni-directional flow direc-
tion
28 Symbol for bi-directional flow direc-
tion
The throttle module and the air circuit should be tested monthly to en-
sure they function correctly.
8 Disposal
u Comply with national regulations regarding disposal.
9 Troubleshooting
Contact one of the addresses found under http://www.emerson.com/
contactus.
10 Technical Data
Table7: General data
General data
Operating temperature range -10…60°C
Storage temperature range –25°C…80°C
Electrically operated shutoff module temper-
ature range
0…50°C
Working pressure min./max. 0/10bar
Min./max. operating pressure (UL/CSA appli-
cation)
0/8bar
Max. pilot air pressure of electrically operated
shutoff module
7bar
Pressure regulator adjustment range 0.5/10bar
Setting range of the throttle module See gFig.17
Permissible medium Compressed air
Max. particle size 40µm
Oil content of compressed air 0…5mg/m3
The pressure dew point must be at least 15°C below the ambient and medium tempera-
tures and must not exceed 3°C.
The oil content of compressed air must remain constant during the service life.
u Use only the approved oils from AVENTICS.
