10. Reattach the Transmitter Electronics Enclosure to the Base Enclosure with the two
hex head bolts and lock washers. Tighten bolts with a 6 mm Allen wrench.
11. Retighten or reattach the conduit to the Transmitter Electronics Enclosure using a
crescent wrench or channel lock pliers.
12. If required, install security wire seal into and through the hole in the socket head
screw on the Base Enclosure cover (maximum wire diameter 0.078 inch; 2.0mm).

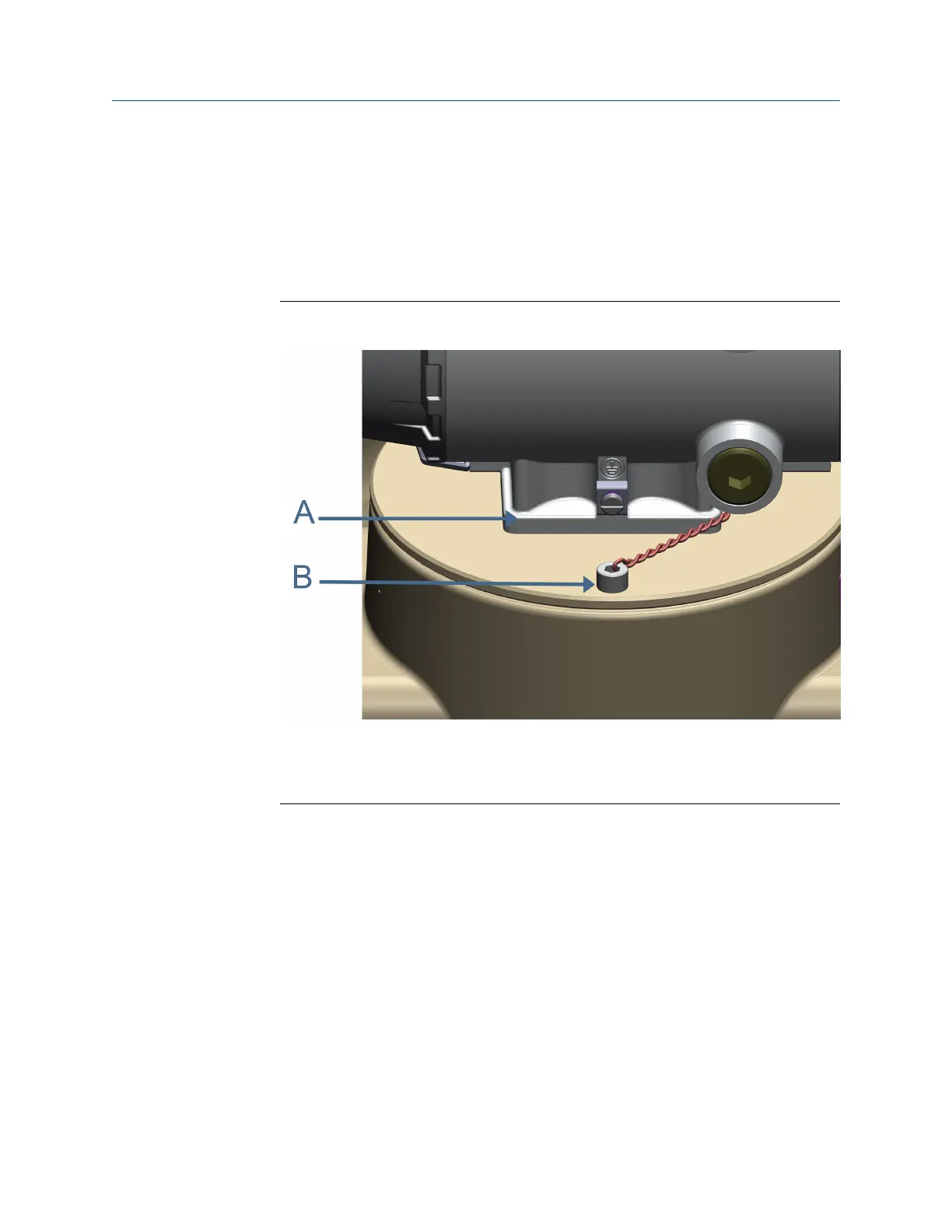

Base Enclosure wire seal installationFigure 3-28:
A. Base Enclosure cover
B. Security wire seals (optional)
13. Position the wire to prevent counterclockwise rotation of the screws when the seal
wire is taut.
14. Feed the security wire beneath the Transmitter Electronics Enclosure and through
the adjacent socket head screw. Twist the wire, removing all slack and seal.
Meter repairs
Maintenance and Troubleshooting manual 85
