4.3 Wire the mA output
Wire the mA output in explosion-proof, nonincendive, or nonhazardous installations.
Important
Meter installation and wiring should be performed only by suitably-trained personnel.
4.3.1
Wire the mA output (internally powered)
Procedure
Wire to the appropriate output terminal and pins.

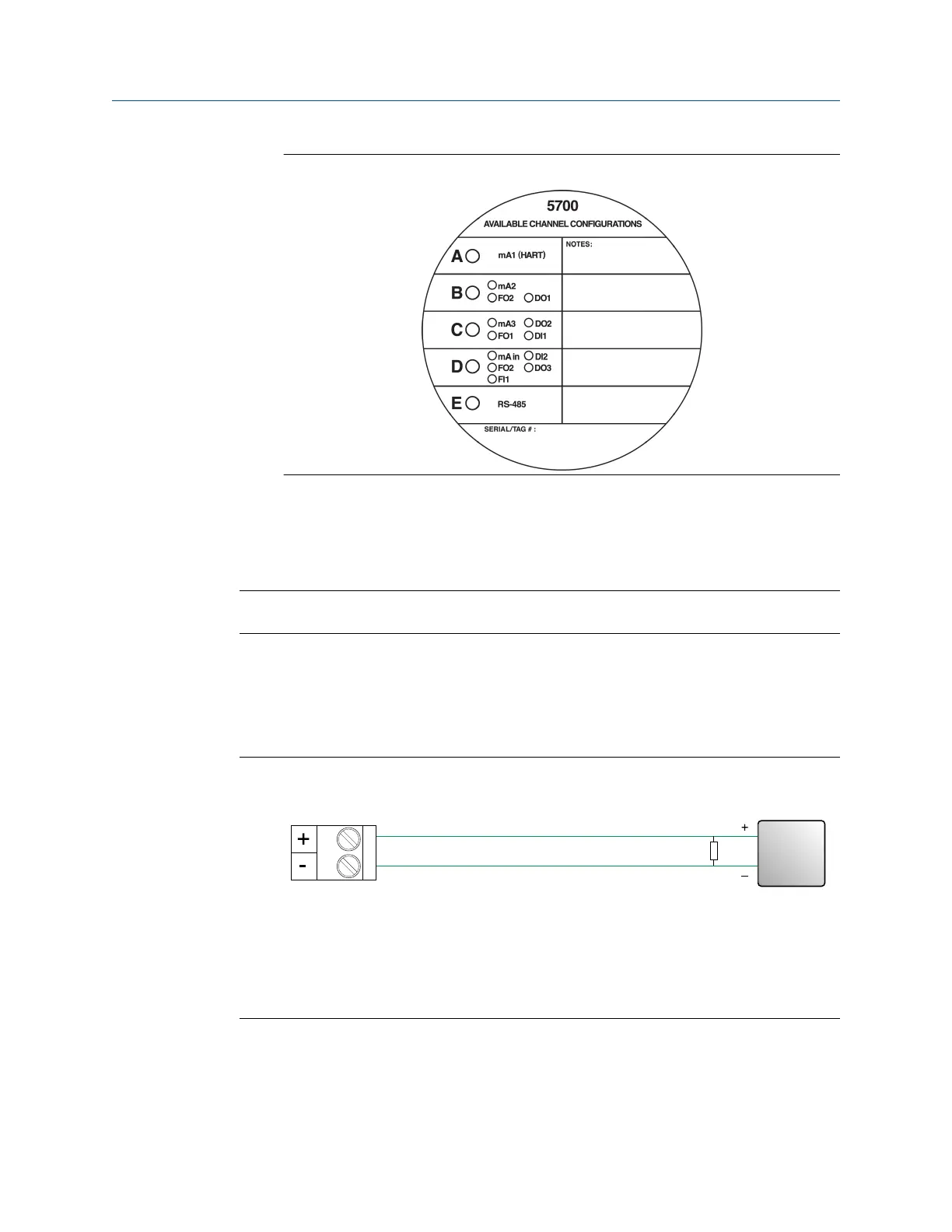

Figure 4-3: mA output wiring (internally powered)
A
D
C
B
A. mA output
B. Channel A, B, or C
C. 820 Ω maximum loop resistance
D. Signal device
